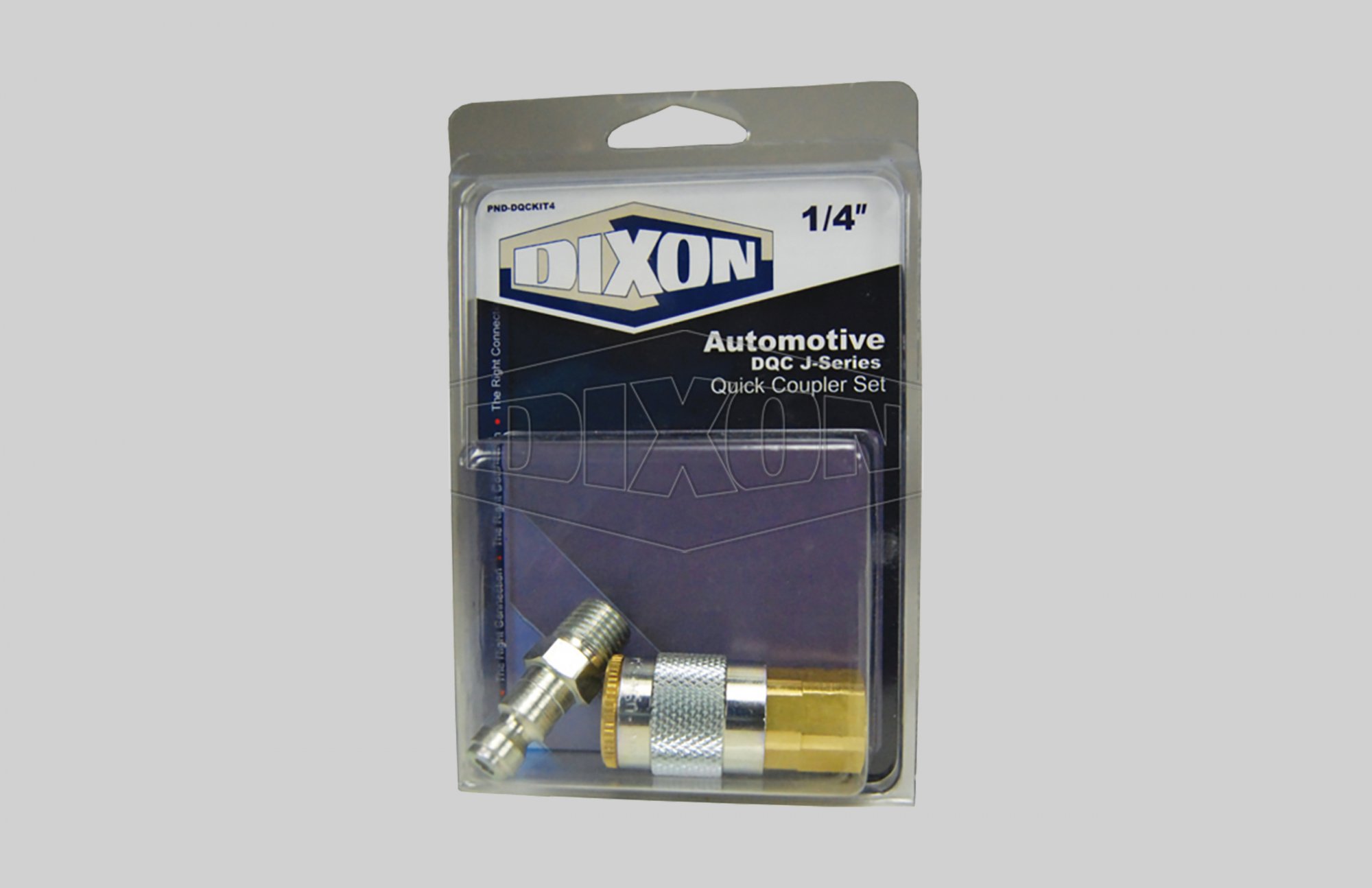

Automotive DQC J-Series Quick Coupler Set

Specifications

  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 10,500 PSI (724 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst

Construction

  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve
Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , , ,
Automotive DQC J-Series Quick Coupler Set

Description

Specifications

  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 10,500 PSI (724 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst

Construction

  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve

Specifications

Part Number PND-DQCKIT4
Description (Case Qty 6 Required)
Includes 2JF2-B, J2M2
Material Coupler - Brass,
Plug - Steel
Thread NPTF
Thread Size 1/4"
Maximum OD Coupler - 0.88",
Plug - 0.65" (Coupler - 22.4mm,
Plug - 16.5mm)
Body Size 1/4"
Hex Coupler - 3/4",
Plug - 9/16"
Length Coupler - 2.04",
Plug - 1.59" (Coupler - 51.8mm,
Plug - 40.4mm)
Pressure Rating See Product Details
Temperature Range -40°F to +250°F (-40°C to +121°C)
Mandatory Pkg/Box Qty 6
Weight lb 0.3600
