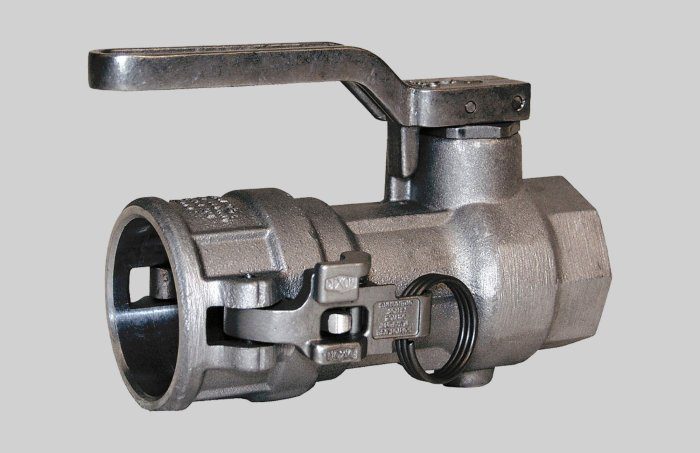

BAYLOC™ DRY DISCONNECT GREASELESS COUPLER X FEMALE NPT

Call for price

Description

Applications

  • Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to “snap” closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.

Use

  • Use with DBA style adapters
  • Use with standard cam and groove dust plug sized one size larger than the dry disconnect size
  • Use Cam & Groove Dust Plug Size: 2″

Specifications

  • Canadian registration number CRN # OH14044 all provinces

Features

  • Greaseless
  • Coupler has automatic closing poppet assembly
  • Heavy duty construction provides long service life
  • Stainless steel handle allows product exposure to corrosive chemicals or washdown service
  • Strong handle attachment prevents bending of crank assembly
  • Dixon EZ Boss-Lock cam arms provide added security from accidental opening due to vibration or snagging. Very easy to use, just close the arms and they lock, to open simply lift the lever.

Specifications

Part Number DBC77-150-GL, DBC77-200-GL
Description Cam & Groove Style
Material Stainless Steel
Seal PTFE Encapsulated FKM & FFKM
Female Thread NPT
Female Thread Size 1-1/2", 2"
Coupler Size 2", 2-1/2"
Maximum Operating Pressure

150 PSI at 70°F(21°C)

210 PSI at 70°F(21°C)

Weight Lb 6.0000, 6.50000
