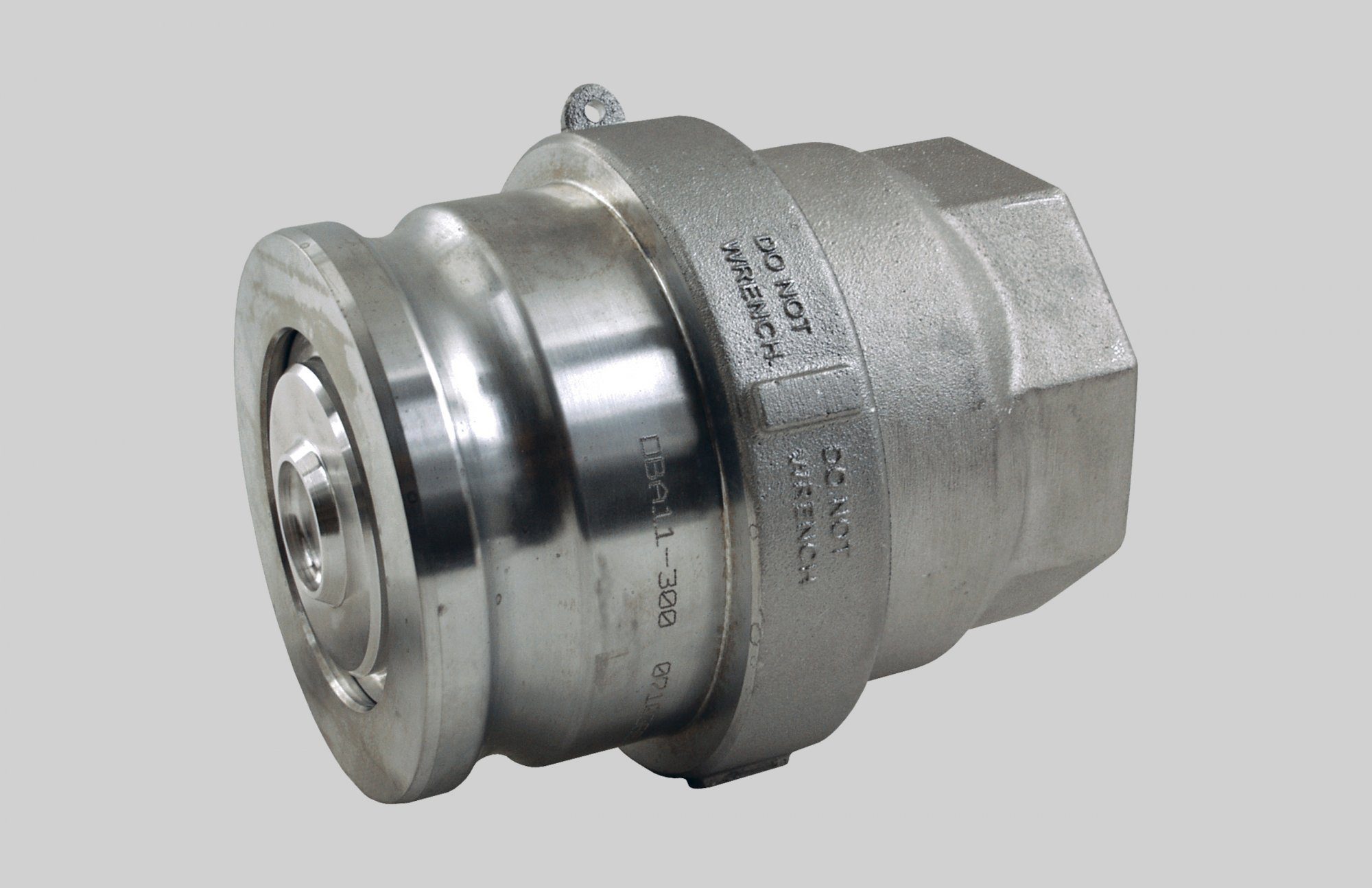

BAYLOC™ DRY DISCONNECT ADAPTER X FEMALE NPT

Call for price

Description

Applications

  • Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to “snap” closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
  • Note: The FKM, PTFE Encapsulated Silicone, EPDM & FFKM seals can be used to transfer hazardous fluids

Use

  • Use with DBC or D2C style couplers
  • Use with standard cam and groove dust caps sized one size larger than the dry disconnect size
  • Use Cam & Groove Dust Cap Size: 2″

Features

  • Two-piece adapter design for easy rebuilding of adapters

Specifications

Part Number DBA**
Description Cam & Groove Style
Material Zinc/Aluminum, Stainless Steel,
Seal Buna. FKM, FFKM, PTFE Encapsulated Silicone, EPDM, PTFE Encapsulated FKM, FKM-B, FKM-GFLT
Female Thread NPT
Female Thread Sizes 1-1/2", 2", 3"
Adapter Sizes 2", 2-1/2", 4"
Maximum Operating Pressures

120 PSI at 70°F(21°C)

150 PSI at 70°F(21°C)

210 PSI at 70°F(21°C)
