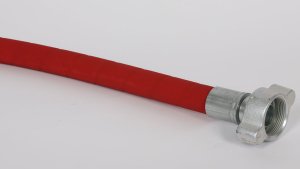

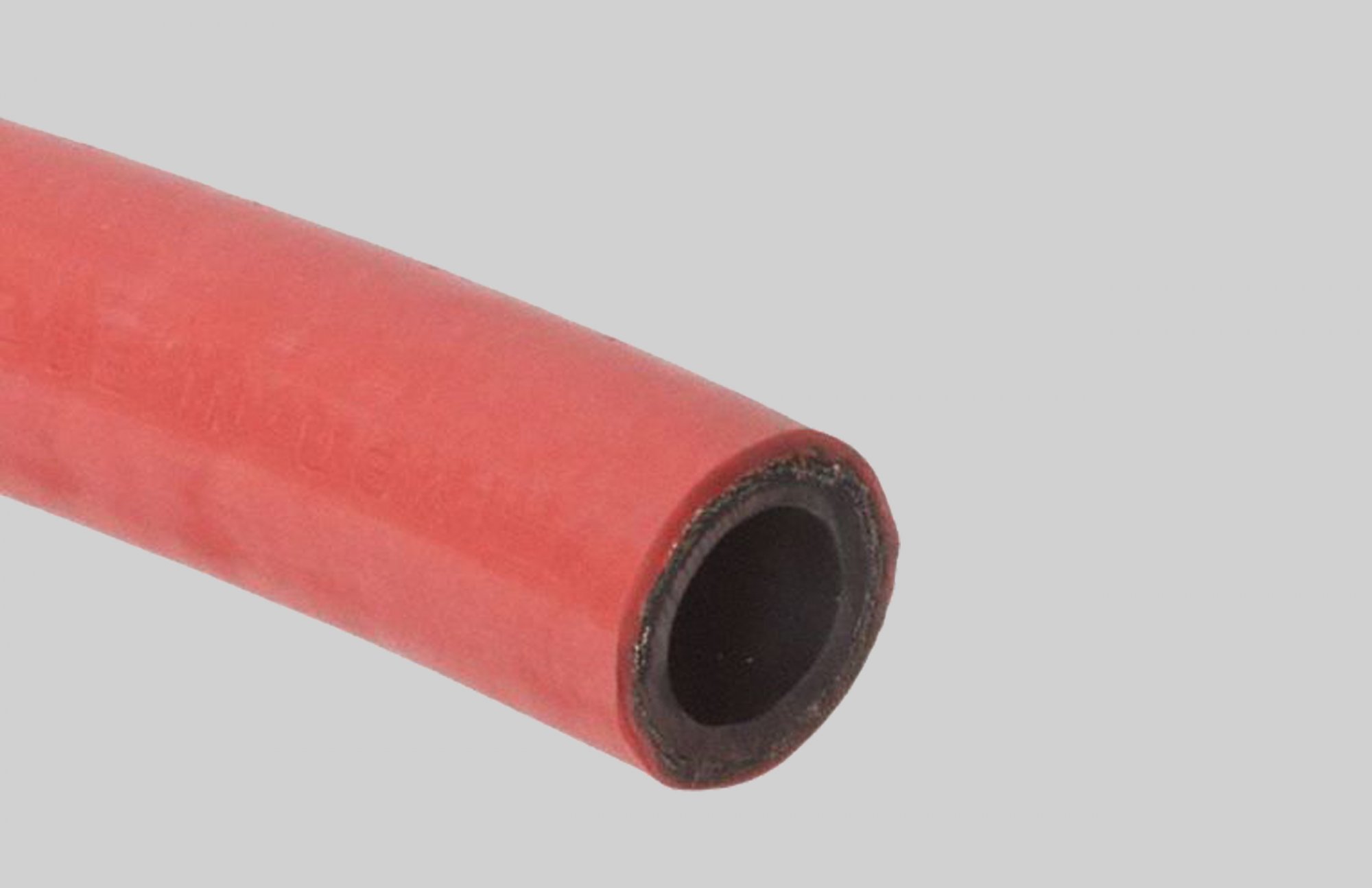

CHLOROBUTYL STEAM HOSE

STEAM

Call for price
Categories: ,

Description

Applications:

  • Transfer of steam for processing products and cleaning equipment
  • Transfer of steam or hot 200°F detergent-type solutions for cleaning of equipment, tanks, buildings, etc.
  • Resists heat, aging, ozone and weather
  • Meets RMA standards; 10:1 safety factor

Tube:
Patrex (chlorobutyl)

Reinforcement:
Wire, 2 braid, sepaplate static wire

Cover:
Black and red stripe pin pricked EPDM

Temp Range:
+450°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

CONSTD050 1/2 1.13 250 - .55 50
CONSTD075 3/4 1.38 250 - .78 50
CONSTD100 1 1.63 250 - 1.00 50
CONSTD125 1-1/4 1.94 250 - 1.35 50
CONSTD150 1-1/2 2.19 250 - 1.55 50
CONSTD200 2 2.69 250 - 1.94 50
