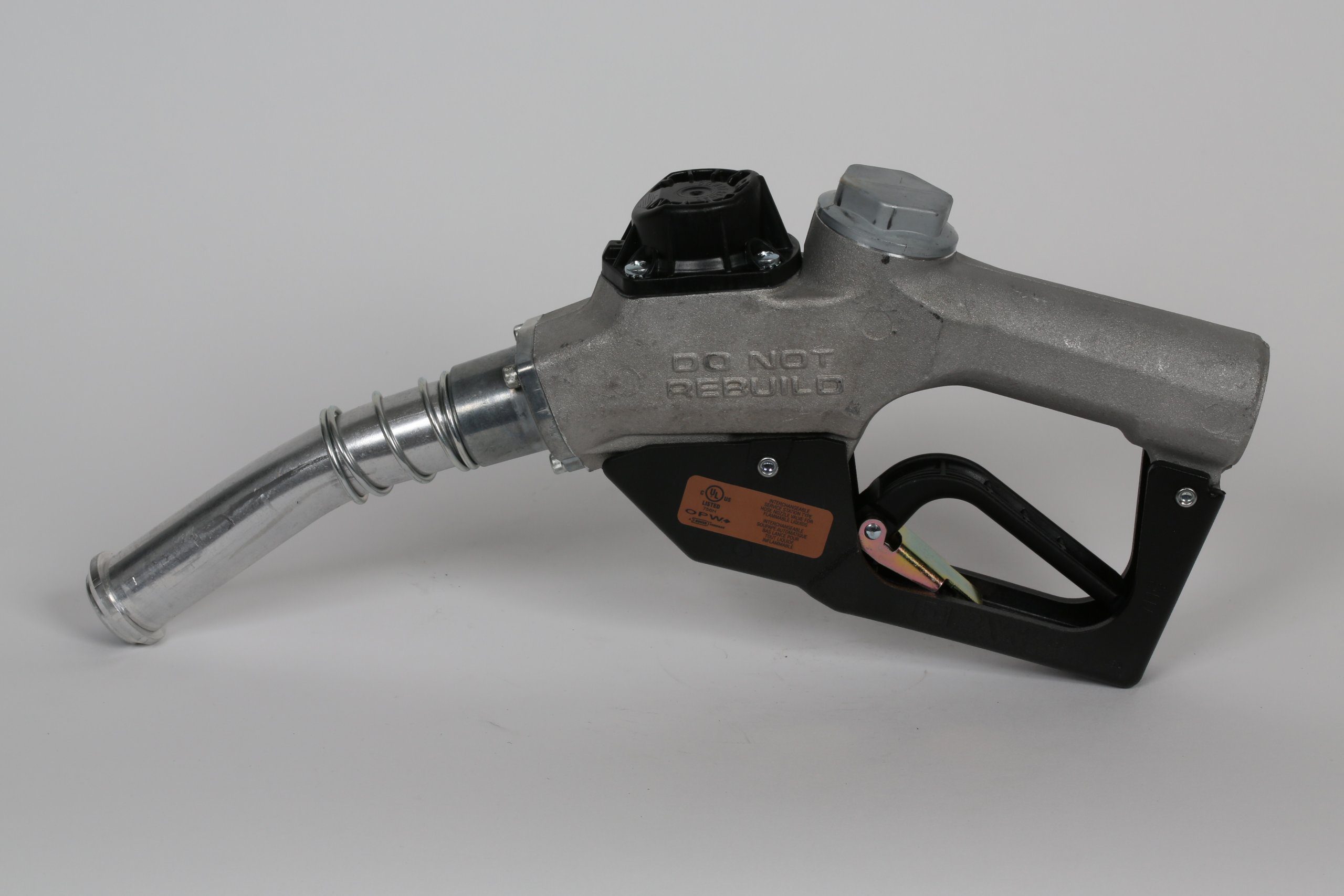

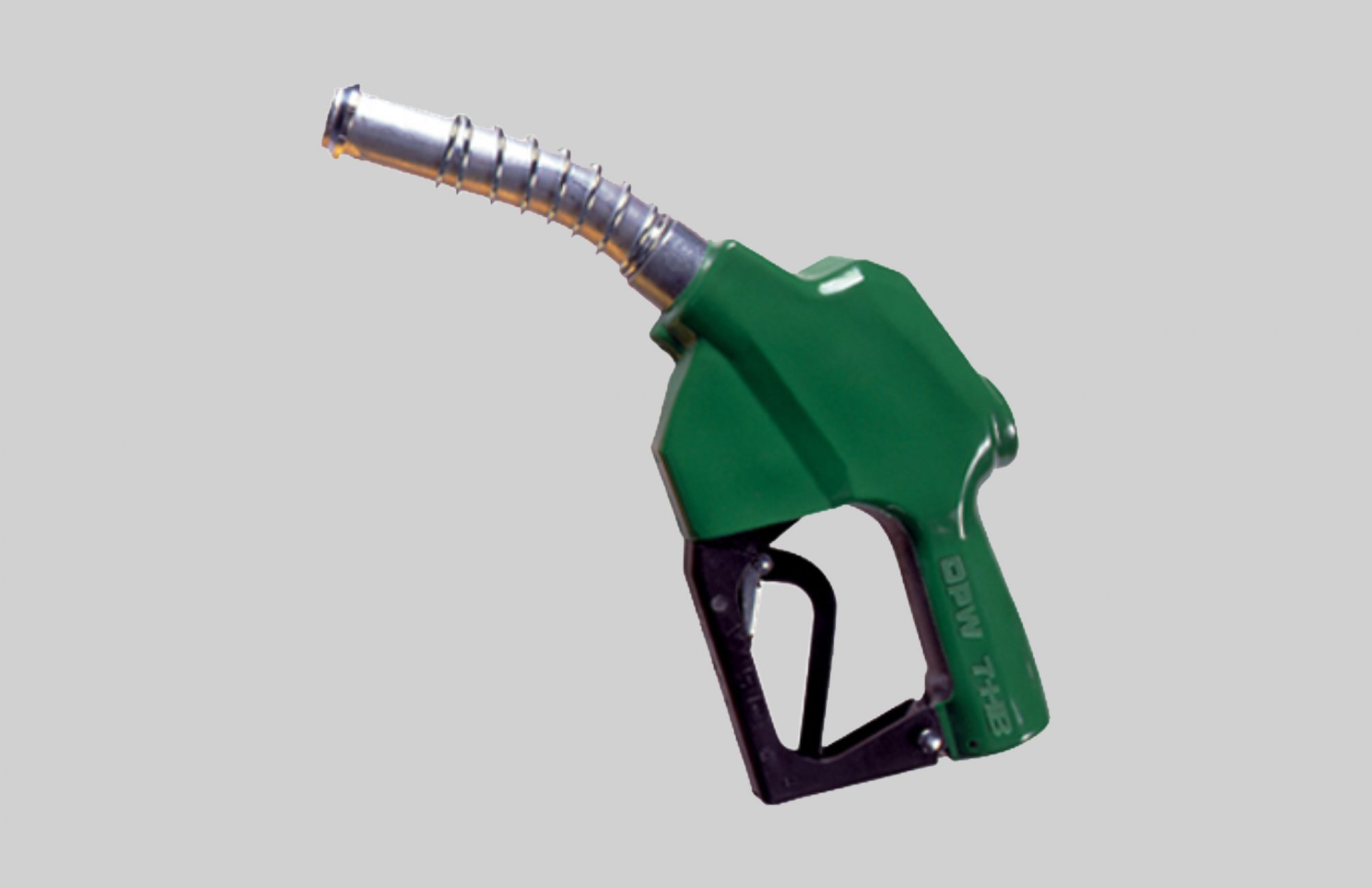

Gas Pump Nozzle – High-Performance Fuel Dispensing

Safe for Use

• UL- and ULC-Listed for use in gasoline, diesel, and up to 10% ethanol blends.
• Prevents gasoline spills in prepay or card-lock systems utilizing OPW’s unique No Pressure – No Flow Device. The nozzle cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed (7HB Series only)
• Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard
• FlowLock™ allows nozzle to shut-off when falling out of a fill pipe, and tipped up limiting spillage and unsafe conditions
• Low reliable shut-off – specifically designed to ensure proper automatic shut-off as low as 5 gallons per minute

Durable & Long-Lasting Design

• Cycle-tested and proven to last longer than 1 million cycles – Better than any other nozzle available on the market today.*
• Durable lever guard that won’t scratch your customers’ vehicles – Made from Duratuff®
• New hold open clip spring lasts longer than previous designs

Appealing to Customers

• Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology
• Easy to open, even at high pressures, utilizing Dual Poppets
• Even, smooth spray pattern – minimizes diesel foaming and false shut-offs
• Smooth closing action and reduced line shock from incorporated dashpot technology
• Convenient – One-finger hold-open clip that is easy to set the flow rate (not on all models)
• Spout Retaining Ring – adds extra measure in securing nozzle spout in fill pipe where required (not on all models)

Design working pressure

• 50 PSI (3.45 bar) maximum pressure

*OPW internal lab testing results as of August 2010.

• Body: Aluminum
• Lever & Lever Guard: Duratuff®
• Packing: Graphite with Teflon®
• Disc: Viton®
• Inlet Size: 1″ NPT
• Weight: 3.35 lbs. each, 52.05 lbs./case of 15, 1.51 kg each, 23.6 kg/case of 15

Compatibility

The Gas Pump Nozzle is suitable for a wide range of fuel dispensers and works with gasoline, diesel, and other common fuels. It is compatible with most standard fueling hoses and meets industry regulations for safety and efficiency.

Installation & Maintenance

• Ensure proper attachment to the fueling hose before use.
• Regularly inspect for wear and tear, replacing worn seals as needed.
• Keep the nozzle clean to maintain optimal performance and prevent blockages.

FAQs

Q: Is this nozzle compatible with high-flow diesel pumps?
A: Yes, the Gas Pump Nozzle is designed for both standard and high-flow fueling systems.

Q: How does the FlowLock™ feature work?
A: The FlowLock™ system automatically stops fuel flow if the nozzle is dropped or dislodged, preventing spills and increasing safety.

Q: Can I use this nozzle for ethanol-based fuels?
A: Yes, the nozzle is compatible with ethanol blends up to E85. However, regular maintenance is recommended for prolonged performance.

Q: How does Accu-Stop® improve fueling accuracy?
A: Accu-Stop® technology allows precise control over fuel flow, enabling to-the-penny transactions with minimal risk of overfill.
