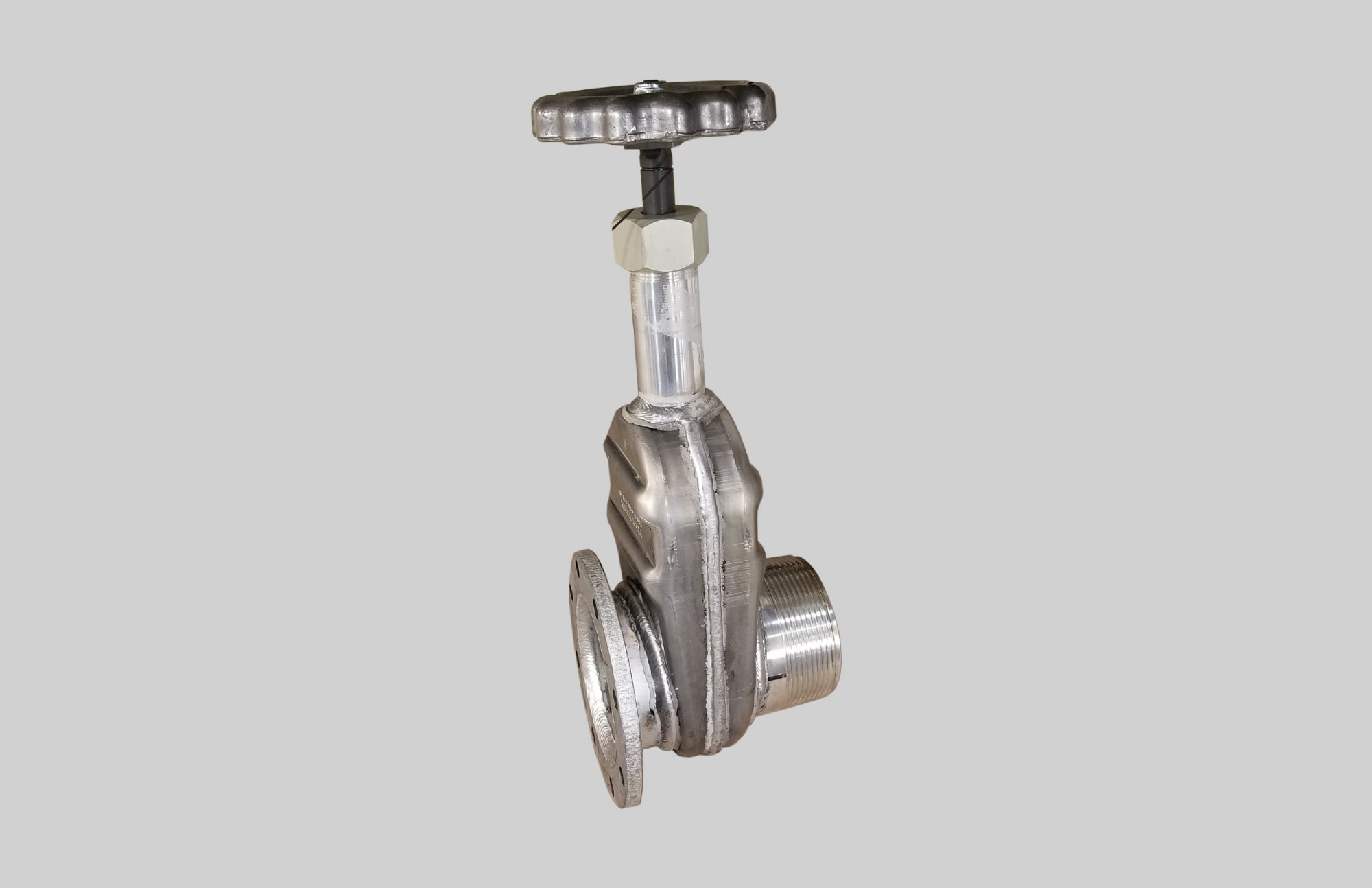

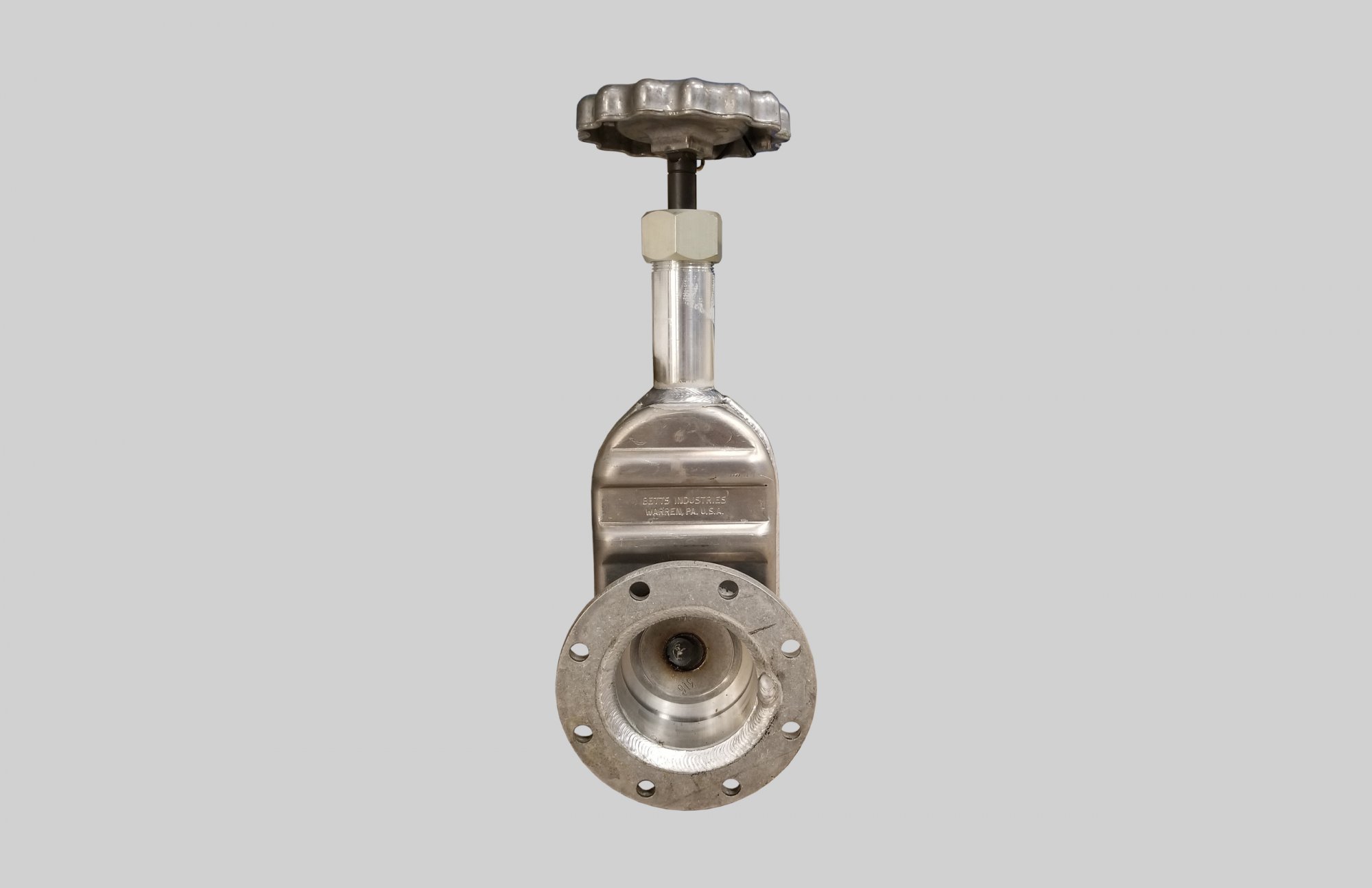

Gate Valve (TTMA x NPT)

  • Flexible action of stainless steel belleville discs insures a tighter valve over longer periods of time
  • No elastomers to deteriorate
  • Fabricated for greater strength, lighter weight and lower cost, in steel, stainless, and aluminum
  • Double acting system threads double the speed of operation

MAWP 50 PSI

Description

  • Flexible action of stainless steel belleville discs insures a tighter valve over longer periods of time
  • No elastomers to deteriorate
  • Fabricated for greater strength, lighter weight and lower cost, in steel, stainless, and aluminum
  • Double acting system threads double the speed of operation

MAWP 50 PSI

Specifications

Part # Pipe Size Body Stem Discs Packing Weight (lbs)
G1003 3 Steel Brass Stainless Steel 3 Teflon Suspended Rings 9.4
AAG1003 3 Aluminum Aluminum Stainless Steel 3 Teflon Suspended Rings 4.5
G1004 4 Steel Brass Stainless Steel 3 Teflon Suspended Rings 12.5
AAG1004 4 Aluminum Aluminum Stainless Steel 3 Teflon Suspended Rings 6.3
