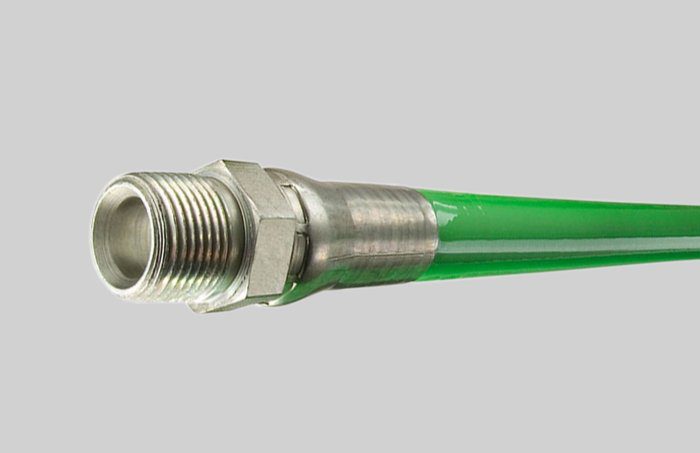

Green Sewer Flushing Hose

GREEN SEWER FLUSHING HOSE

PIRANHA

Categories: Flushers, Hose, Vacuum Truck Equipment, Water Blast

Description
Specification

Description

Applications:
• Used on high pressure sewer cleaning equipment

Tube:
• Yellow polyolefin

Reinforcement:
• Single high tensile braid

Cover:
• Green polyether-urethane cover

Temp Range:
• -40°F to +150°F

* Sold as assemblies coupled with male NPT swaged on each end. Common lengths are 400, 500, and 600 feet.

Specifications

Part #	I.D (in.)	Male NPTF Nom. Thread Size	Max. Working PSI	Standard Lengths (ft)	Weight (lbs/pkg)
LLGR-MM02X50	1/8"	1/8-27	4,000	50'	2 lbs
LLGR-MM02X100	1/8"	1/8-27	4,000	100'	4 lbs
LLGR-MM02X150	1/8"	1/8-27	4,000	150'	6 lbs
LLGR-MM02X200	1/8"	1/8-27	4,000	200'	8 lbs
LLGR-MM02X250	1/8"	1/8-27	4,000	250'	10 lbs
LLGR-MM03X150	3/16"	3/16-18	4,000	150'	12 lbs
LLGR-MM04X100	1/4"	1/4-18	4,000	100'	6 lbs
LLGR-MM04X150	1/4"	1/4-18	4,000	150'	9 lbs
LLGR-MM04X200	1/4"	1/4-18	4,000	200'	12 lbs
LLGR-MM04X250	1/4"	1/4-18	4,000	250'	19 lbs
LLGR-MM04X300	1/4"	1/4-18	4,000	300'	18 lbs
LLGR-MM04X500	1/4"	1/4-18	4,000	500'	30 lbs
LLGR-MM06X100	3/8"	3/8-18	4,000	100'	11 lbs
LLGR-MM06X150	3/8"	3/8-18	4,000	150'	17 lbs
LLGR-MM06X200	3/8"	3/8-18	4,000	200'	22 lbs
LLGR-MM06X250	3/8"	3/8-18	4,000	250'	28 lbs
LLGR-MM06X300	3/8"	3/8-18	4,000	300'	33 lbs
LLGR-MM06X500	3/8"	3/8-18	4,000	500'	55 lbs
LLGR-MM08X100	1/2"	1/2-14	4,000	100'	16 lbs
LLGR-MM08X150	1/2"	1/2-14	4,000	150'	24 lbs
LLGR-MM08X200	1/2"	1/2-14	4,000	200'	32 lbs
LLGR-MM08X300	1/2"	1/2-14	4,000	300'	48 lbs
LLGR-MM08X400	1/2"	1/2-14	4,000	400'	64 lbs
LLGR-MM08X500	1/2"	1/2-14	4,000	500'	80 lbs
LLGR-MM08X600	1/2"	1/2-14	4,000	600'	96 lbs

Part #	I.D (in.)	Male NPTF Nom. Thread Size	Max. Working PSI	Standard Lengths (ft)	Weight (lbs/pkg)
LLGR-MS04-200	1/4"	1/4-18	4,000	200'	12 lbs
LLGR-MS06X50	3/8"	3/8-18	4,000	50'	7 lbs
LLGR-MS06X100	3/8"	3/8-18	4,000	100'	11 lbs
LLGR-MS06150	3/8"	3/8-18	4,000	150'	20 lbs
LLGR-MS06X200	3/8"	3/8-18	4,000	200'	22 lbs
LLGR-MS06X250	3/8"	3/8-18	4,000	250'	28 lbs
LLGR-MS06-300	3/8"	3/8-18	4,000	300'	33 lbs
LLGR-MSMS06X300	3/8"	3/8-18	4,000	300'	37 lbs

Part #	I.D (in.)	O.D (in.)	Max. Working PSI	Min. Burst Pressure PSI	Bend Radius (in.)	Weight (lbs/ft)	Standard Length (ft)
LLGR-MM-02X100	1/8"	0.32"	4,000	10,000	1.25"	0.04	100'
-	3/16"	0.41"	4,000	10,000	1.75"	0.05	-
LL40004X100MMSWK, LLGR-MM04X100	1/4"	0.50"	4,000	10,000	2.50"	0.06	100'
LL6X250GRMMSWK	3/8"	0.65"	4,000	10,000	3.00"	0.11	250'
LL8X500GRMM	1/2"	0.83"	4,000	10,000	4.00"	0.16	500'
-	3/4"	1.30"	4,000	10,000	5.00"	0.41	-
-	1"	1.63"	4,000	10,000	8.00"	0.65	-
