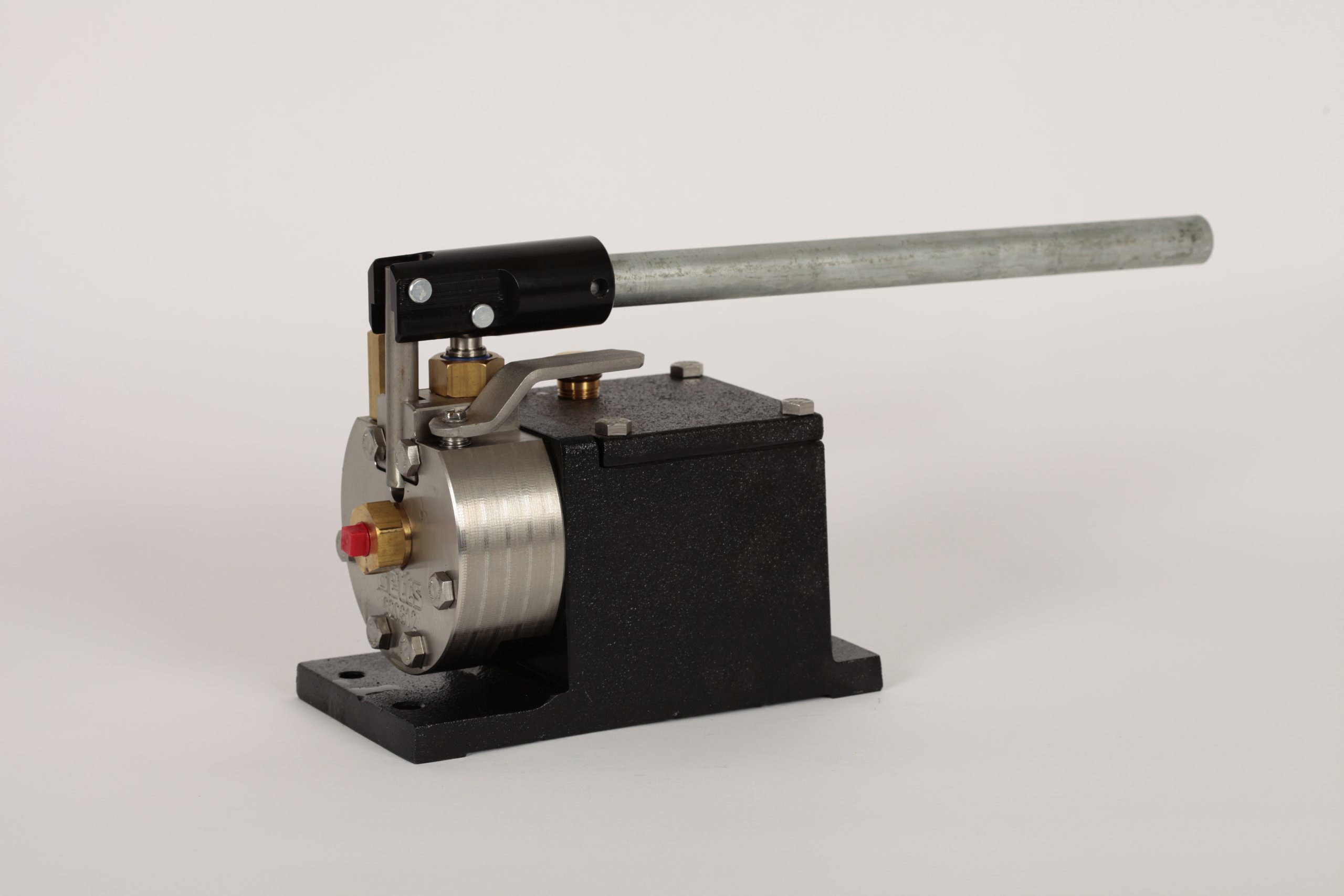

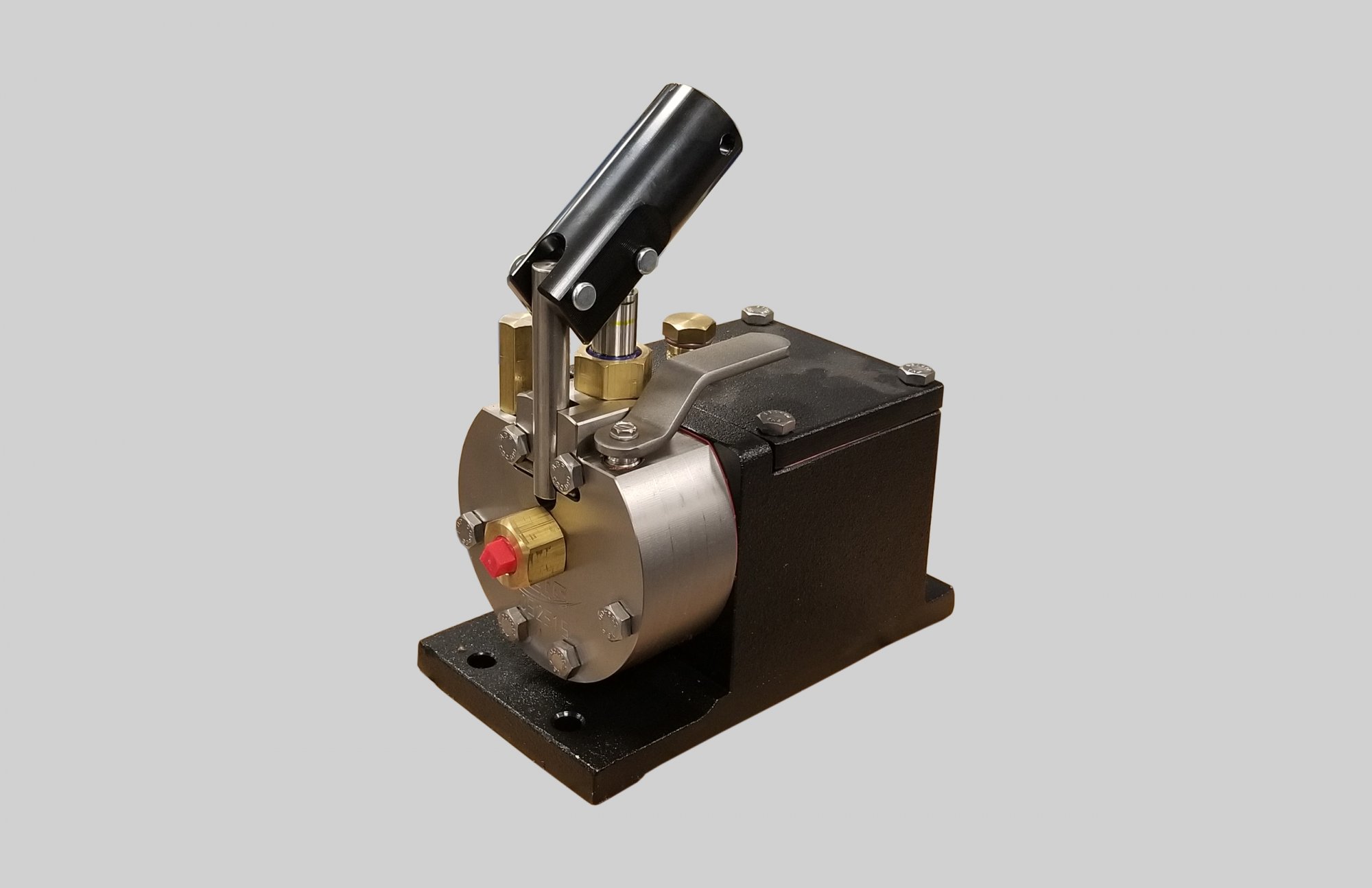

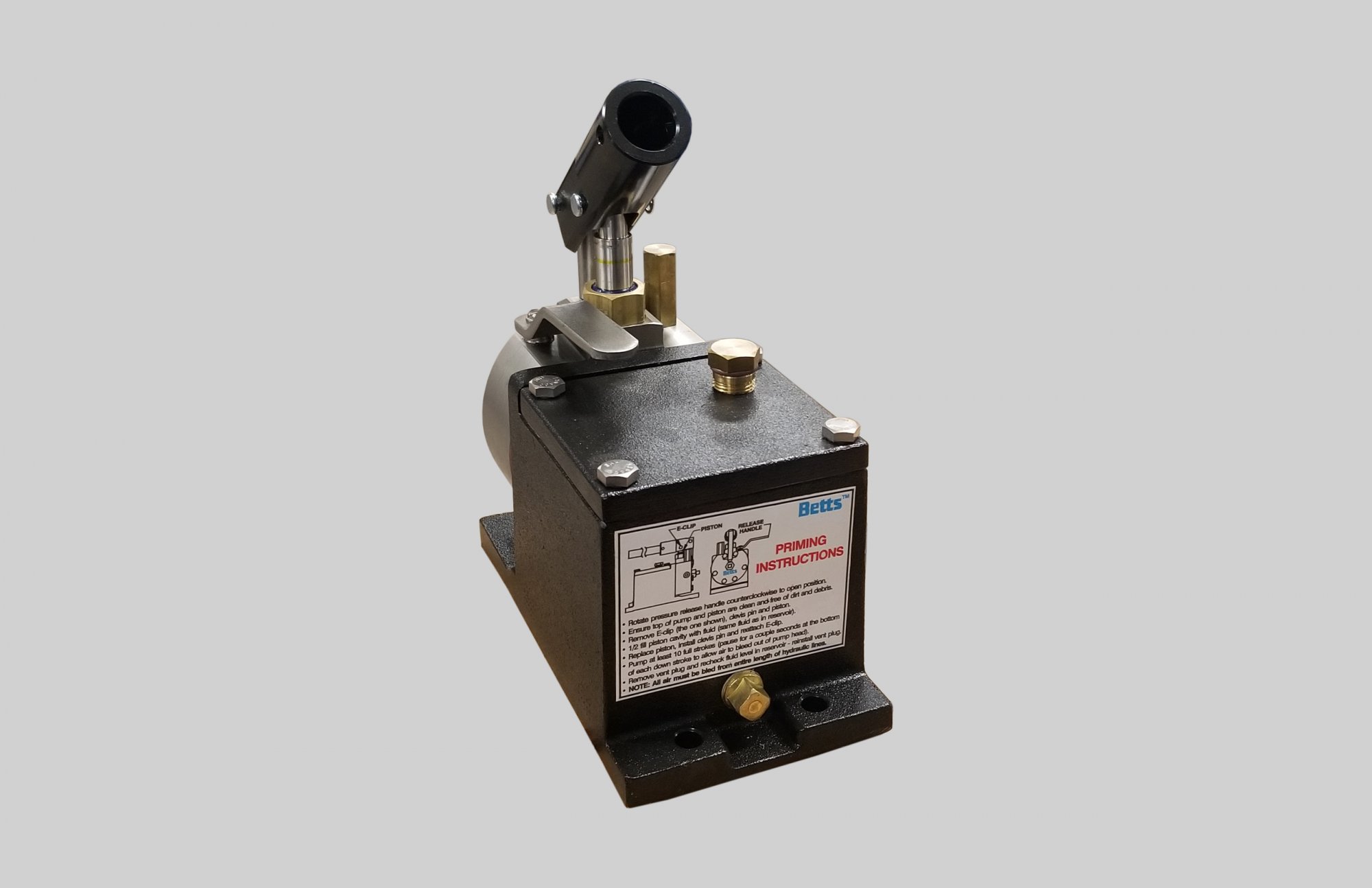

HYDRAULIC PUMP Existing customers can log in to their account for additional savings Call for price Categories: Chemical, Chemical Tank Truck Parts, Dry Bulk, Dry Bulk Parts, Dry Bulk Tank Truck Parts, Liquid - Petroleum, Petroleum Tanks Truck Parts Description Specification Description Stainless Steel Valve Block and Internal Components Horizontal or Vertical Mounting Tamper Resistant Pressure Relief Front and Side Outlet Ports The Betts Hydraulic Pump HP46982ALSL is designed as a corrosion resistant, reliable hydraulic pump for use with any Betts hydraulically operated valve or vent. The pump head and internal parts are made of corrosion resistant stainless steel. The reservoir is made of aluminum with a durable E-coating. 1/4 NPT hydraulic connections are conveniently located at both the front of the pump and on the right side. A drain plug allows the reservoir to be drained without unbolting the pump. Pump can be mounted horizontally or vertically with outlet end down. The pump contains a tamper resistant pressure relief set to bypass at approximately 3,000 PSI. Specifications Part # Rated Pressire Displacement per Stroke Fluid Capacity* Total** Useable*** Dry Weight HP46982ALSL 3000 .43 in ^3 38in ^3 (21oz) 25in ^3 (14oz) 13 lbs * Pumps are shipped dry with no hydraulic fluid** Total = amount of fluid to fill reservoir to within 1/4" of the cover plate (33).*** Useable = amount of fluid to take 'Total' fluid down to just above the filter screen (28). Hydraulic Pump Parts (3rd Generation) Description Req. Material Part # Piston 1 303 Stainless 75233SL Bushing / Wiper 1 Brass / Polyurethane 75239BR Release Handle Screw 1 304 Stainless 9Q4170 Pressure Release Handle 1 304 Stainless 75145SL Release Stem 1 304 Stainless 75236SL Release Stem Seal 1 Buna-N 75254BN Valve Block 1 303 Stainless 35965SL 0.313 Ball 3 440 Stainless 9Z8505 Ball Spring 2 302 Stainless 75255SL Spring Retainer 1 Brass 75298BR Auxiliary Outlet Plug 1 Brass 9V4925 0.1888 Ball 1 440 Stainless 9Z8507 Bypass Plug 1 304 Stainless 75237SL Bypass Spring 1 17-7PH Stainless 75256SL Bypass Cap 1 Brass 75238BR Handle 1 Galv. Steel HP19165-01 Beam 1 E-Coat Steel 75240EY Clevis Pin 2 Zinc Plated Steel 9Q4733 E-Clip 2 Coated Steel 9Q4733A Link 1 303 Stainless 75234SL Piston Seal 1 Buna-N 17946BN Pin 1 303 Stainless 9Q4950 Outlet O-ring 1 Buna-N 75584BN Outlet 1 Brass 75583BR 1/4" NPT Pipe Plug 1 Plastic 9Z6145 Valve Block Cap Screw 6 304 Stainless 9Q5975 Head Gasket 1 Cellulose Fiber 75244CF Filter Screen 1 304 Stainless 75148SL Drain Plug 1 Brass 9V4914 Reservoir 1 Aluminum E-Coat 46973ALEY Priming Instructions 1 Vinyl 9Z4022 Cover Cap Screw 4 304 Stainless 9Q5861 Cover Plate 1 Aluminum E-Coat 75246ALEY Cover Gasket 1 Cellulose Fiber 75245CF Vent Plug 1 Brass / Viton 75242BR Related products Dry Bulk – Air Pressure Relief Valves Tan Bulk Hose – Hardwall Cam Couplings – Import C Cam Couplings – Domestic E
