Applications:

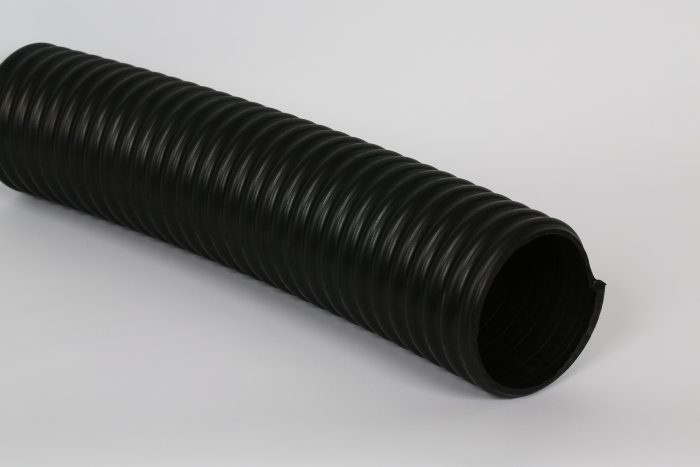

• Heavy duty abrasion resistant suction hose for vacuum trucks
• Transfer of abrasives such as crushed rock, sand, pea gravel,
cement powder, dry fertilizer, and grains
• Lightweight, flexible, extreme resistance to abrasion and
weather
Tube:
• Smooth bore SBR rubber blended with static carbon
Reinforcement:
• Rigid PVC helix
Cover:
• Corrugated SBR rubber
Temp Range:
• -40°F to +140°F
Applications:
• Heavy duty abrasion resistant suction hose for vacuum trucks
• Transfer of abrasives such as crushed rock, sand, pea gravel,
cement powder, dry fertilizer, and grains
• Lightweight, flexible, extreme resistance to abrasion and
weather
Tube:
• Smooth bore SBR rubber blended with static carbon
Reinforcement:
• Rigid PVC helix
Cover:
• Corrugated SBR rubber
Temp Range:
• -40°F to +140°F
| Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
| 180AR125 | 1 1/4 | 1.57 | 45 | 2.0 | .31 | 100 |
| 180AR150 | 1 1/2 | 1.82 | 45 | 2.0 | .37 | 100 |
| 180AR200 | 2 | 2.35 | 40 | 2.5 | .50 | 100 |
| 180AR250 | 2 1/2 | 2.95 | 35 | 2.5 | .88 | 100 |
| 180AR300 | 3 | 3.5 | 35 | 3.0 | 1.10 | 100 |
| 180AR350 | 3 1/2 | 4.11 | 30 | 4.0 | 1.35 |
100 |
| 180AR400 | 4 | 4.63 | 30 | 4.5 | 1.77 | 100 |
| 180AR500 | 5 | 5.76 | 30 | 5.0 | 2.47 | 100 |
| 180AR600 | 6 | 6.73 | 30 | 9.2 | 3.08 | 100 |
| 180AR700 | 7 | 7.83 | 30 | 14.0 | 4.10 | 50 |
| 180AR800 | 8 | 9.04 | 30 | 15.0 | 5.65 | 50 |
| 180AR1000 | 10 | 11.18 | 28 | 30.0 | 8.88 | 20 |
| 180AR1200 | 12 | 13.31 | 25 | 40.0 | 10.43 | 20 |
| Inner Diameter | 2", 3", 4", 5", 6", 8", 10" |
|---|
