Applications:
• A light or heavy duty layflat hose for portable pump and irrigation use
Tube:
• Blue or brown PVC impregnation
Reinforcement:
• Woven high tensile synthetic yarns
Cover:
• Blue or brown PVC impregnation
Temp Range:
• +15°F to +130°F
Applications:
• A light or heavy duty layflat hose for portable pump and irrigation use
Tube:
• Blue or brown PVC impregnation
Reinforcement:
• Woven high tensile synthetic yarns
Cover:
• Blue or brown PVC impregnation
Temp Range:
• +15°F to +130°F
| Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length (ft) |
|

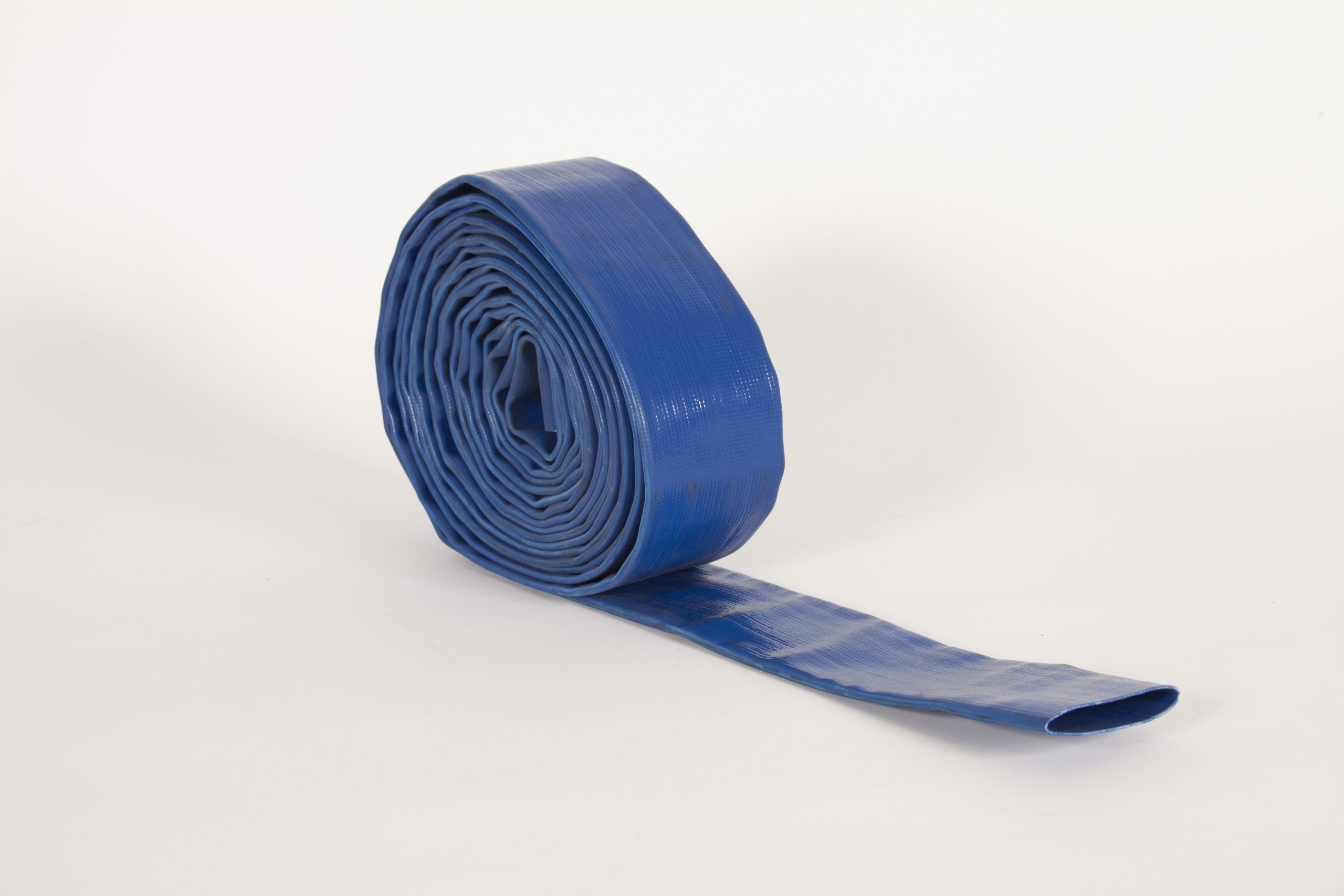

Blue |
||||||
| LAYBL100 | 1 | 1.11 | 150 | - | 0.13 | 300 |
| LAYBL120 | 1 1/4 | 1.37 | 130 | - | 0.15 | 300 |
| LAYBL150 | 1 1/2 | 1.63 | 70 | - | 0.15 | 300 |
| LAYBL200 | 2 | 2.13 | 65 | - | 0.20 | 300 |
| LAYBL250 | 2 1/2 | 2.63 | 65 | - | 0.27 | 300 |
| LAYBL300 | 3 | 3.13 | 60 | - | 0.33 | 300 |
| LAYBL400 | 4 | 4.14 | 60 | - | 0.46 | 300 |
| LAYBL500 | 5 | 5.15 | 45 | - | 0.65 | 300 |
| LAYBL600 | 6 | 6.15 | 35 | - | 0.78 | 300 |
| LAYBL800 | 8 | 8.16 | 35 | - | 1.20 | 300 |
| LAYBL1000 | 10 | 10.20 | 35 | - | 1.75 | 300 |
| LAYBL1200 | 12 | 12.30 | 30 | - | 2.50 | 300 |
|

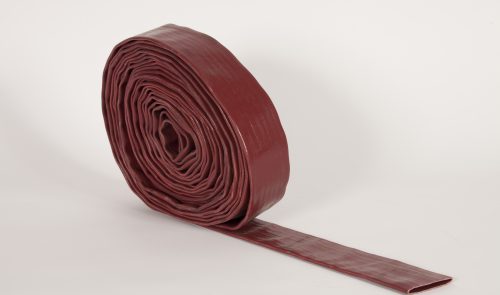

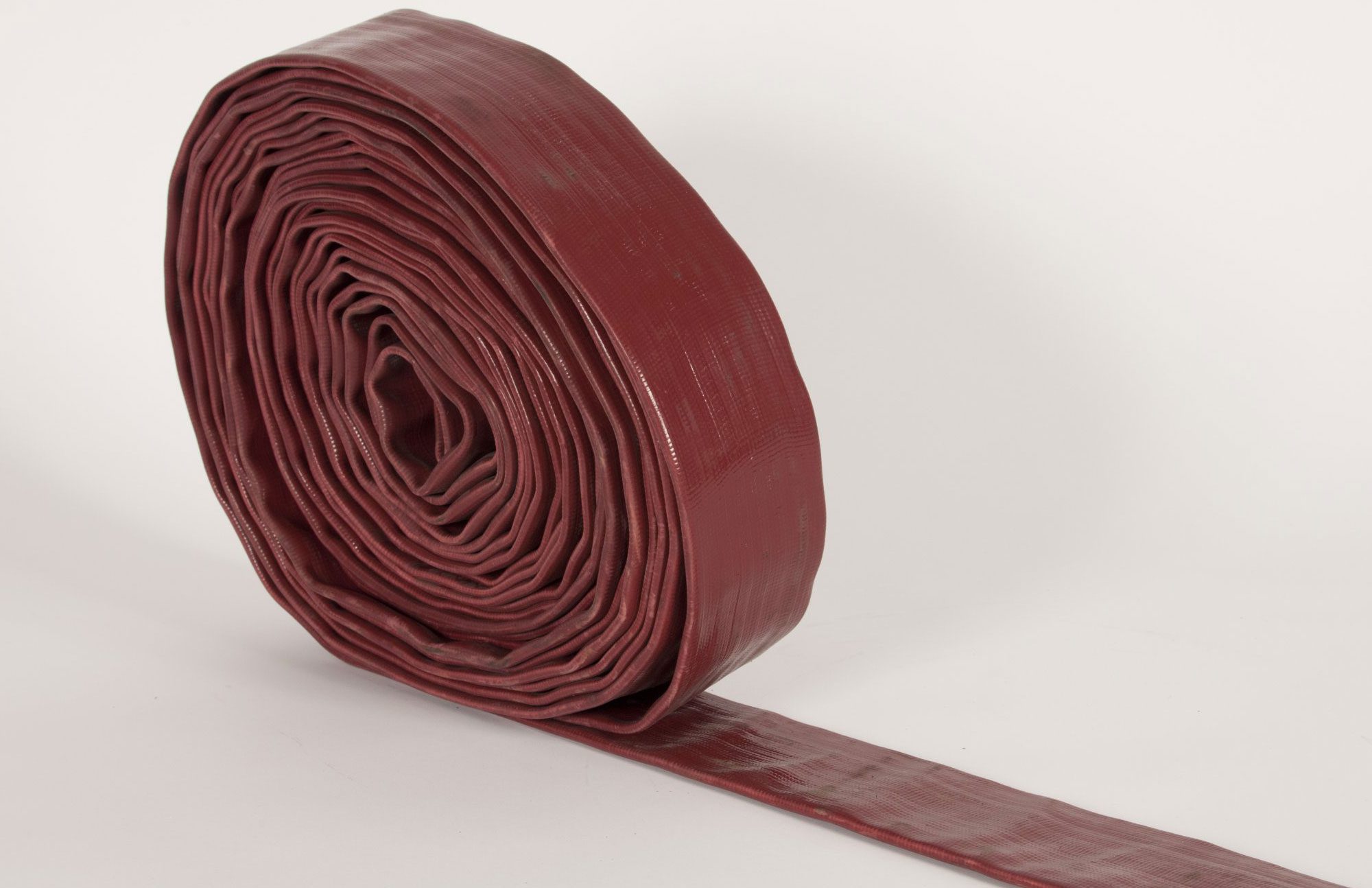

Brown |
||||||
| LAYBR150 | 1 1/2 | 1.66 | 130 | - | 20 | 300 |
| LAYBR200 | 2 | 2.16 | 115 | - | 28 | 300 |
| LAYBR300 | 3 | 3.18 | 100 | - | 46 | 300 |
| LAYBR400 | 4 | 4.18 | 90 | - | 68 | 300 |
| LAYBR600 | 6 | 6.18 | 70 | - | 110 | 300 |
| LAYBR800 | 8 | 8.19 | 60 | - | 166 | 300 |
Part # OHSLAYBR_____
