LIQUID PROPANE GAS HOSE – U.L. 21 – CGA TYPE 1

LIQUID PROPANE

Call for price
Categories: ,

Description

WARNING: For LP Gas use ONLY! Do NOT use in anhydrous ammonia or refrigeration applications! Do NOT use male swivel couplings or screw-together re-attachable fittings or any type of couplings that use O-Ring sealing surfaces!

For conveyance of LP Gas products where a 1-1/4″ through 2″ ID is required. Meets or exceeds all Underwriter Laboratories (UL) 21 requirements as well as CGA (Canadian Gas Association) Type 1, LP Gas hose requirements.

Can be used for natural gas with application specific criteria. The molecules of natural gas are small, enhancing its ability to permeate through standard rubber or PVC hose constructions. The permeation process is more rapid as the working pressure increases, and natural gas accumulates with potentially dangerous consequences. Use pipe, non-permeable tubing or hose with barrier constructions to convey natural gas. Series 7232 L.P. Gas hose can be used for natural gas service, but ONLY under the following conditions:

  • Maximum working pressure of the application not to exceed 50 PSI. The application must be in an outside (non-enclosed) environment. Applications that are in an enclosed environment or greater than 50 PSI working pressure are not recommended.
  • Do not use LPG hose for fuel hose in vehicles using CNG (Compressed Natural Gas).
  • In Natural Gas applications, copper, brass, or other copper-containing fittings should be in accordance to the AGA rating of the particular apparatus. The hose used with Natural Gas should be subjected to the same rigorous tests and inspection as if it were being use with LPG.
  • 5:1 Design Factor

Specifications

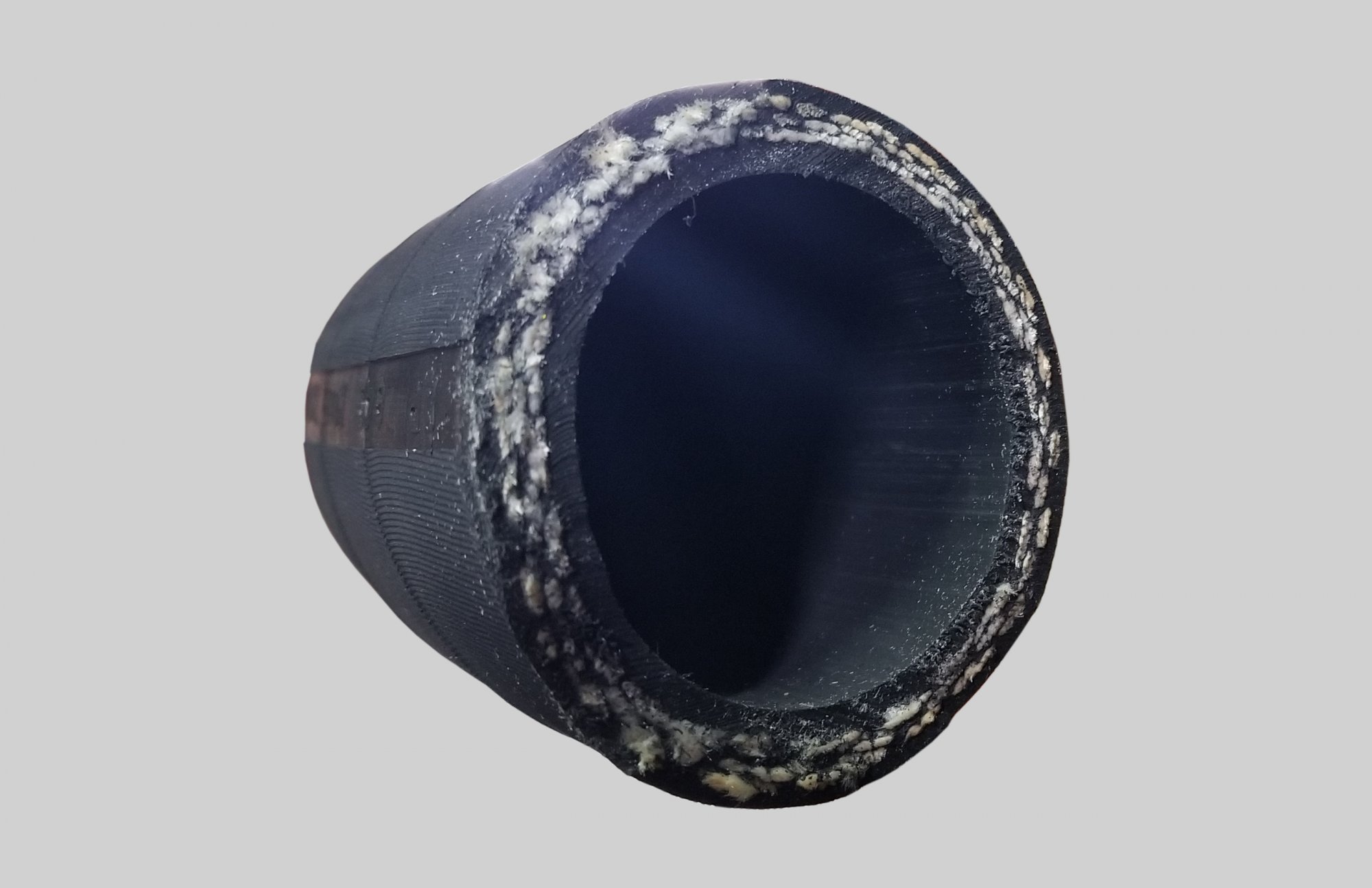

Tube: Black Nitrile

Cover: Perforated Black Neoprene

Reinforcement: Multiple textile braids

Temp. Range: -40°F to +180°F (NOTE: The hose construction is capable of this rating, however, LP Gas should NEVER be conveyed over 140F during conveyance).

Branding:

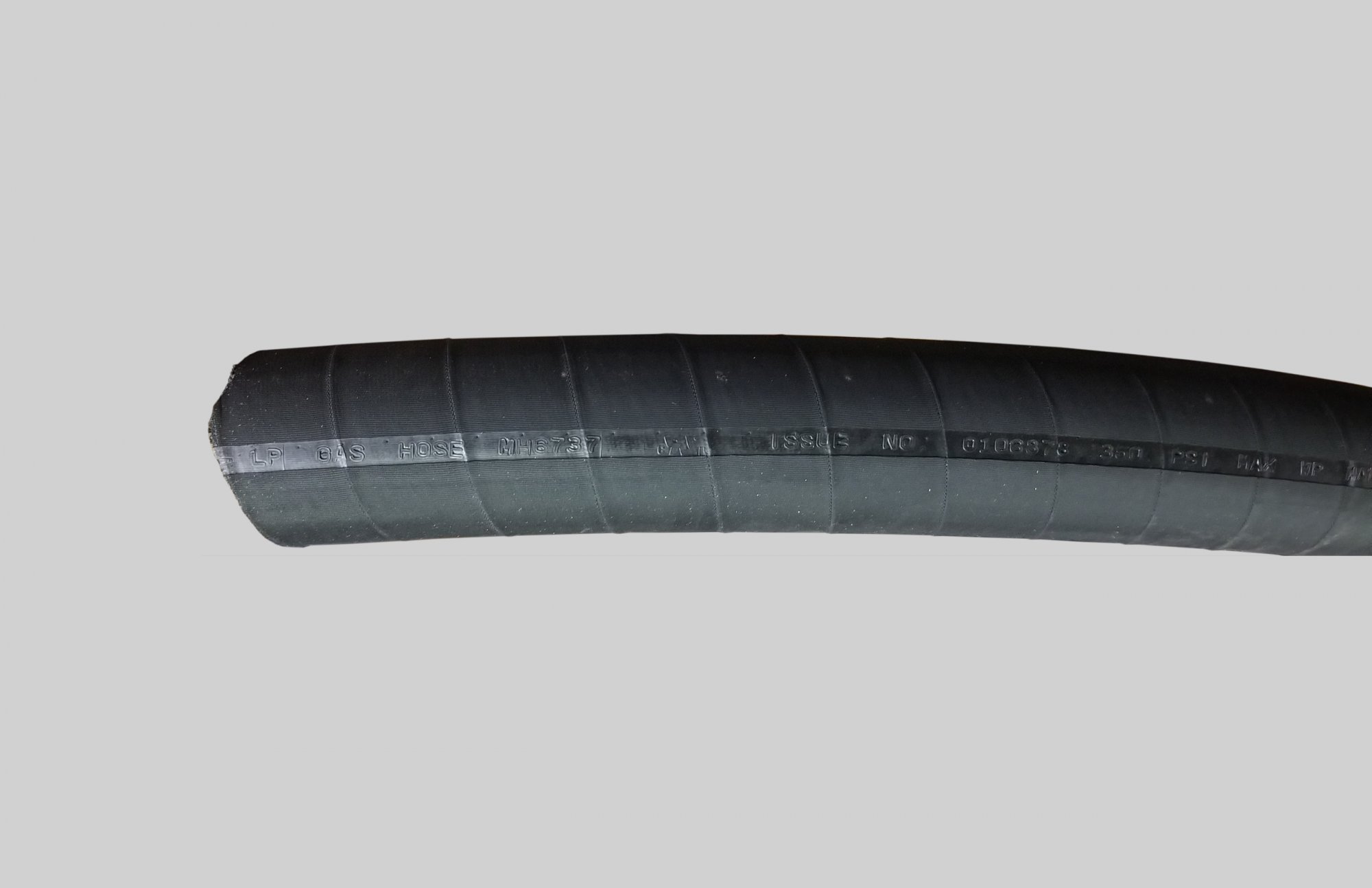

Side 1: Parker/ Dayco 7232 CGA Type 1 Caution - LP Gas Hose MH6737 UR (UL Recognized component, with backyards "R") Issue No. XXXX 350 PSI, Max WP Made in USA Type brand.

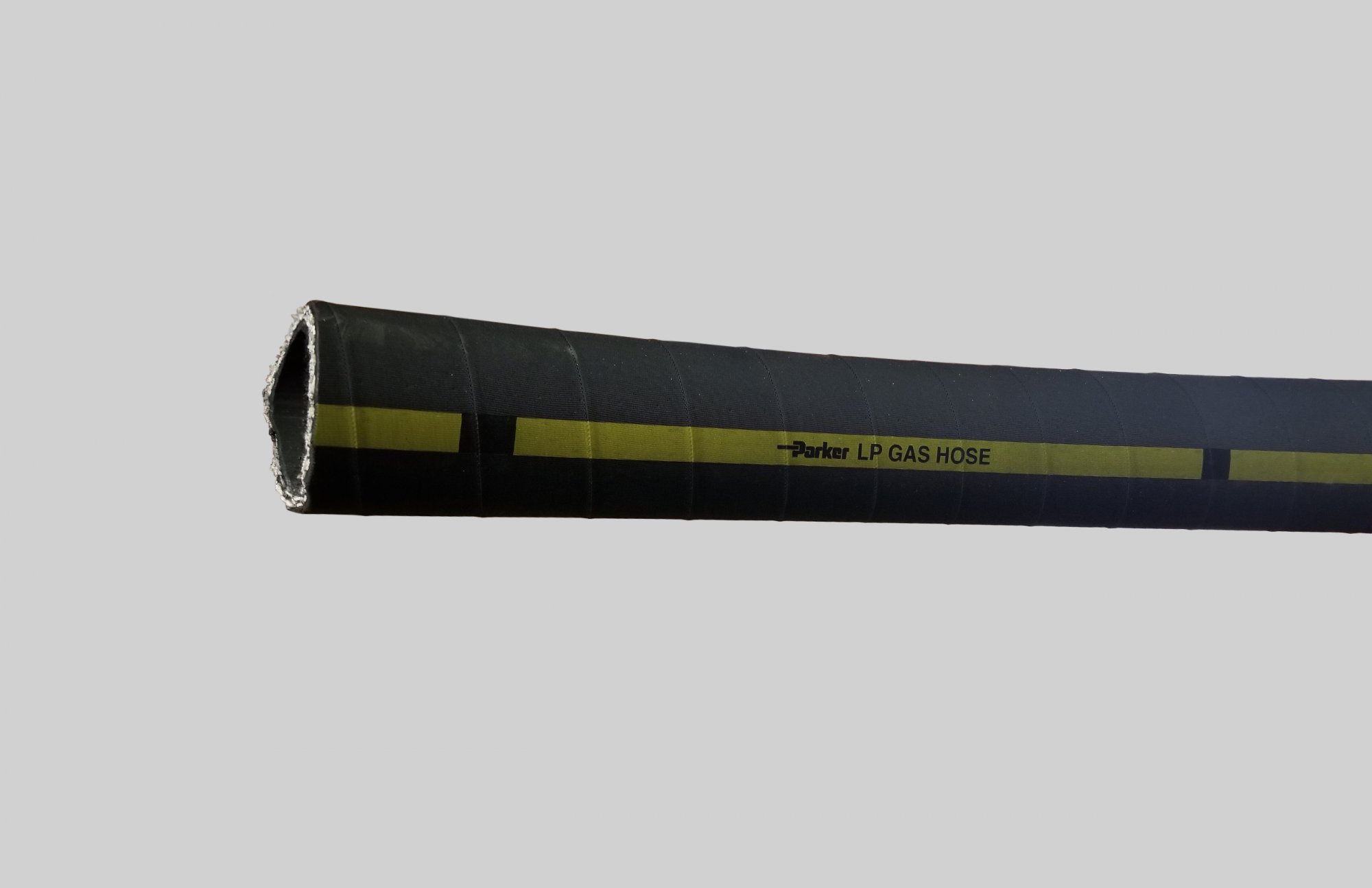

Side 2: Parker/ Dayco LP Gas Hose

Brand Description: Emboss Brand and Black letter color, Yellow background

Part #

I.D. (in.)

I.D. (mm)

Reinf. Braids

O.D. (in.)

O.D. (mm)

Approx. Wt. Per 100'

Min. Bend Radius

Max. Rec. WP

7232-1252 1-1/4 31.8 2 1.815 46.1 85 12.0 350
7232-1252100 1-1/4 31.8 2 1.815 46.1 85 12.0 350
7232-1503K 1-1/2 38.1 3 2.156 54.8 112 14.0 350
7232-2003K 2 50.8 3 2.750 69.9 177 16.0 350

Lengths: 1-1/4" reels are max. 3 pieces, 25'. min. length. 1-1/2". and 2" are 150'. pkg., max. 3 pieces with 40'. min. length.

Couplings: Coupling style 2, 3, 8, or for other coupling recommendations refer to NAHAD Assembly Guidelines.
