LYNX Series Coupler – The Best in Bottom Loading
LYNX is optimized to bring your liquid terminals and tank trucks the very best in dry-break API technology. From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss.

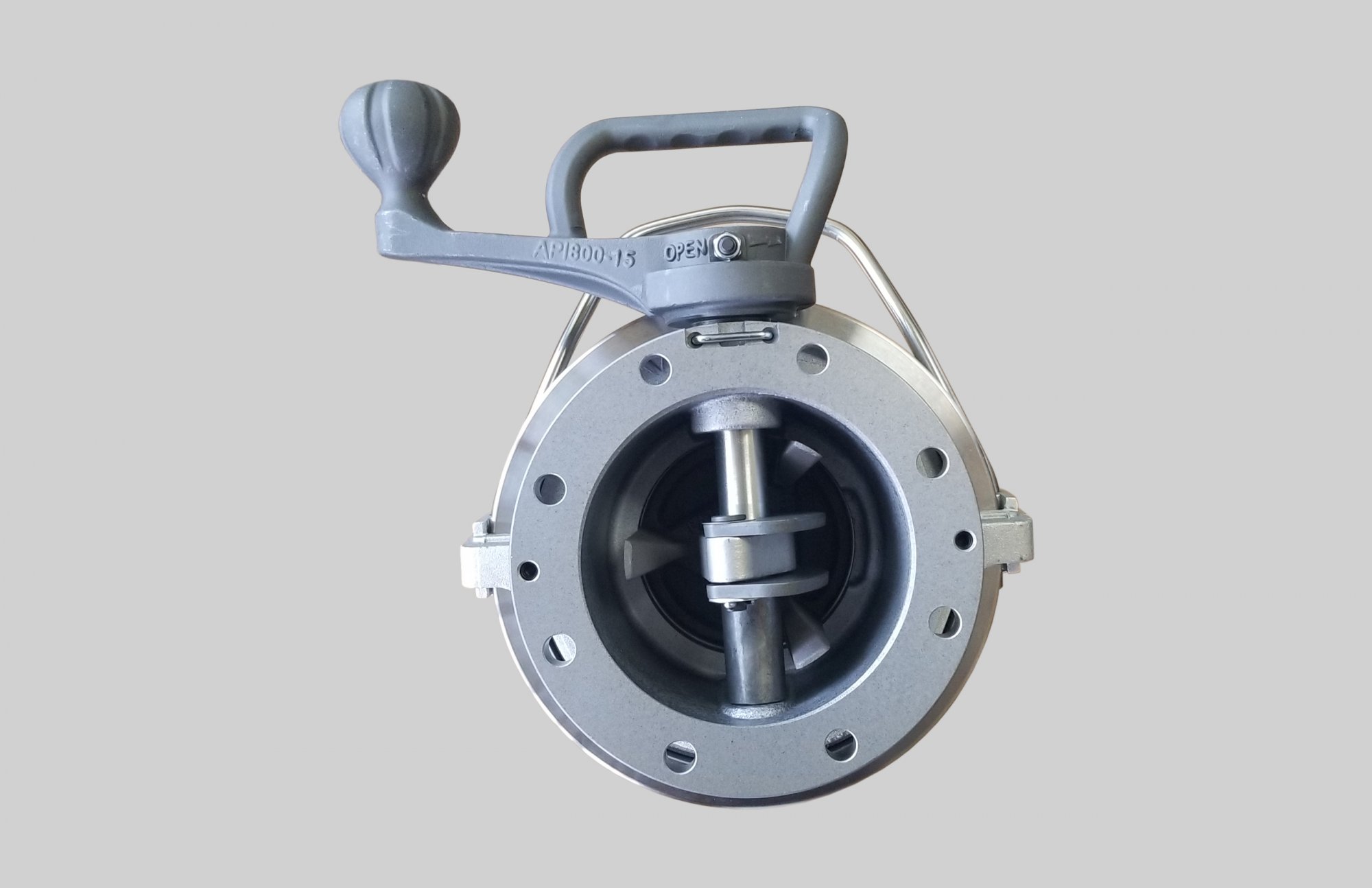

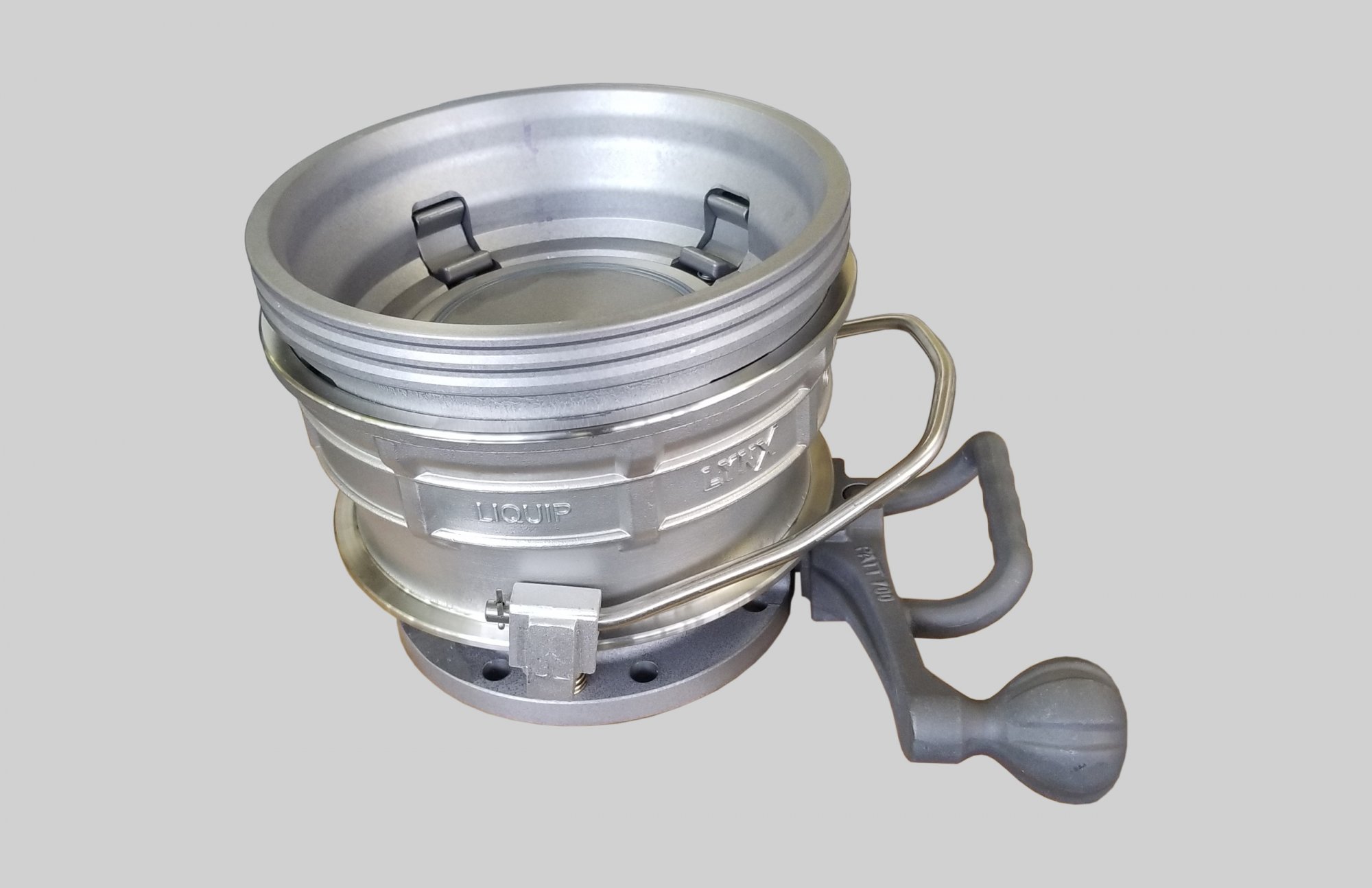

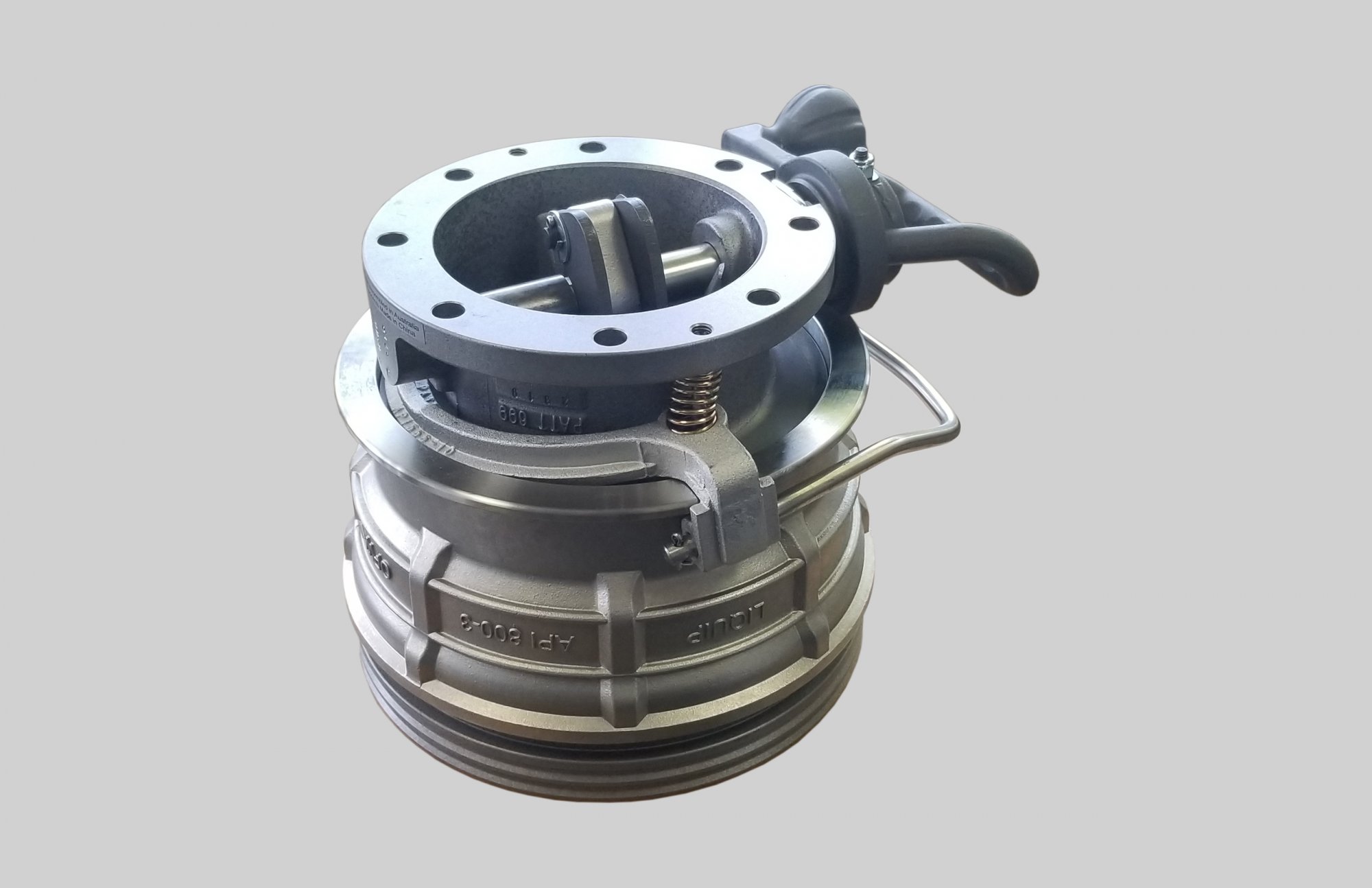

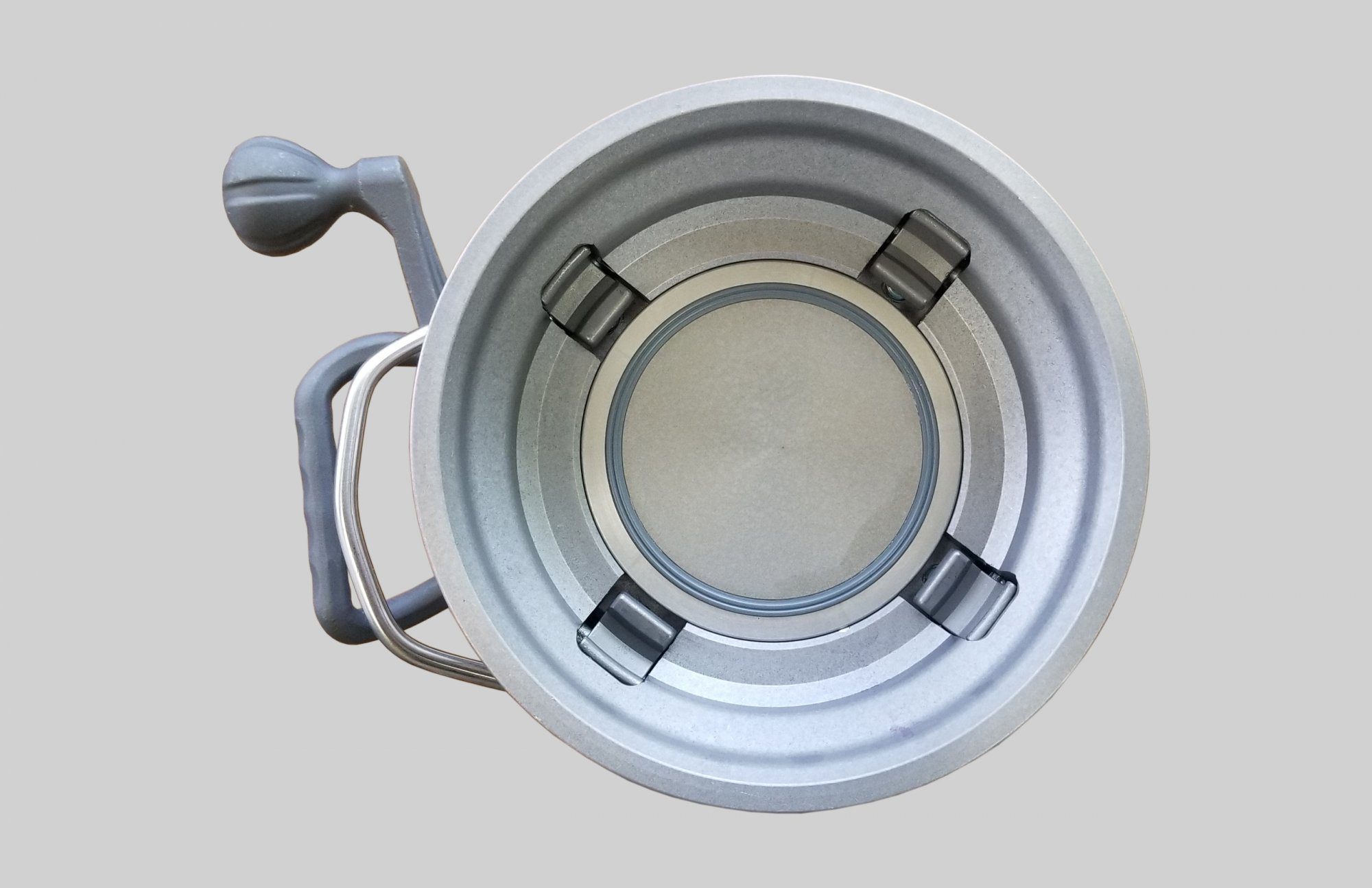

Lynx API Coupler Short Handle c/w Viton GFLT Seals
LYNX Series Coupler – The Best in Bottom Loading
LYNX is optimized to bring your liquid terminals and tank trucks the very best in dry-break API technology. From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss.
Lynx API Coupler Short Handle c/w Viton GFLT Seals
Part# LYNX850VG
| Handle Length | Short 5.9" (150mm) or Long 7.8" (200mm) |
| Seals | Fluorocarbon, Nitrile/Buna, Fluorosilicone, FFKM, Ultra Low-Temp (FKM) |
| Max Working Pressure | 80 psi (5.5 bar) (550 kPa) |
| Product Test Pressure | 119 psi (8.2 bar) (820 kPa) |
| Design Pressure | 363 psi (25 bar) (2500 kPa) |
| Max Surge Pressure | 493 psi (34 bar) (3400 kPa) |
| Operating Temperature | Fluorocarbon: -20°F to +200°F (-28°C to +90°C); Nitrile/Buna: -40°F to 212°F (-40°C to 100°C); Fluorosilicone: -49°F to 350°F (-45°C to 177°C); FFKM: 23°F to 140°F (-5°C to 60°C); FKM (Ultra Low-Temp): -40°F to 200°F (-40°C to 90°C) |
| Design Standard | API RP 1004 8th EDITION 2003 - Bottom Loading and Vapour Recovery; AS5602-2009 |
| Dismantling | Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn |
| Mounting | • By industry standard 4" (100 mm) TTMA Flange • 8 holes Ø7/16" on 5.8" PCD, 6.6" outside diameter (Ø11 mm on 149 mm PCD, 168 mm OD) • Use spring washers when mounting coupler as per common industry practice |
| Adjustment or Service | Refer to Maintenance Instructions document |
| Weight | 19 lbs. (8.6 kg.) |
