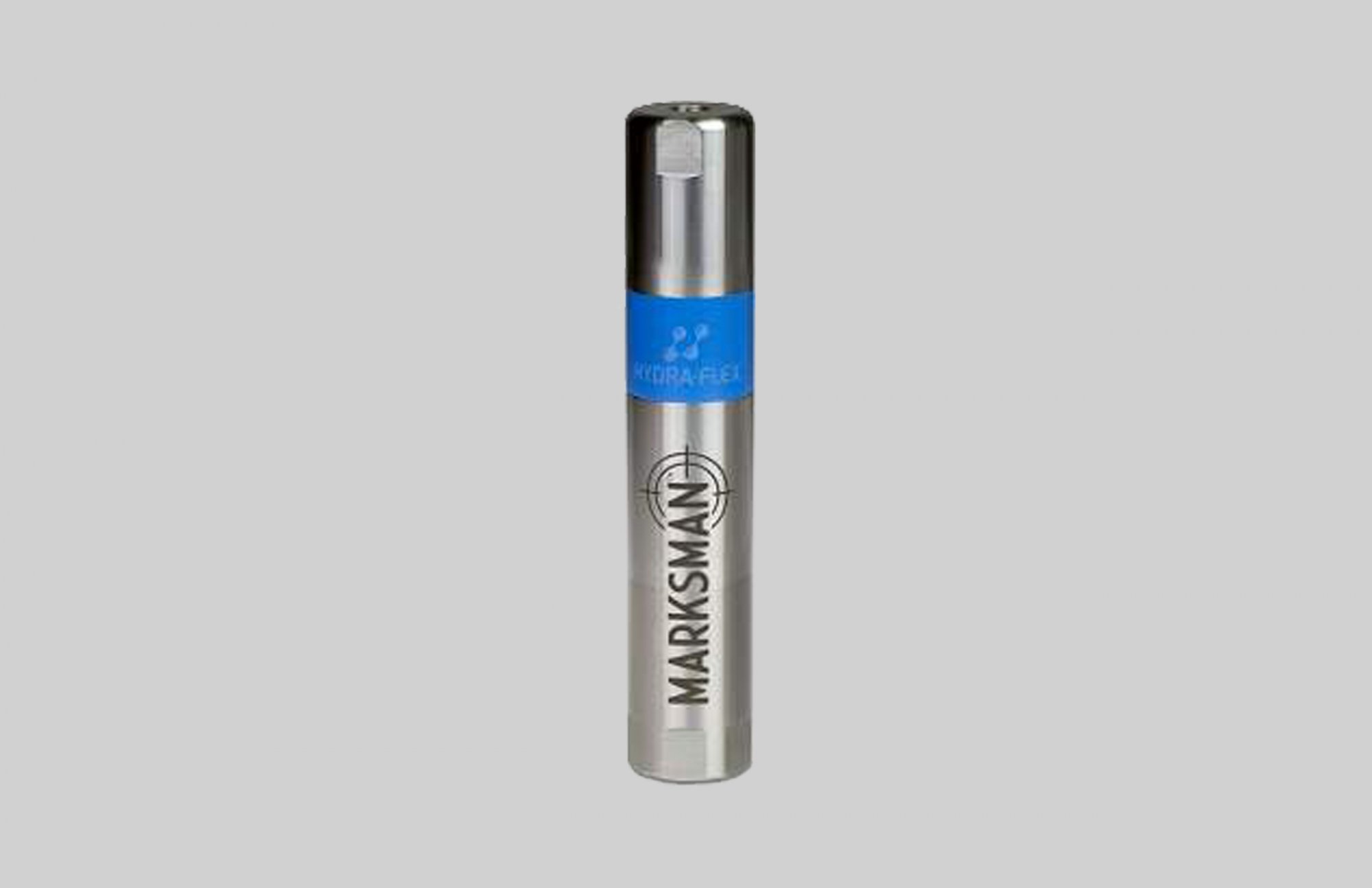

Marksman – Long Distance Cleaning Nozzle

The Marksman™ is a long distance cleaning nozzle, designed to provide precision in distance and industrial cleaning performance. Engineered for any hard to reach cleaning applications in the municipal, utility, and industrial markets, the Marksman keeps the operators safer and more efficient while drastically reducing water consumption.

Maximum Inlet Pressure: 2,500 PSI

Housing Material: Stainless Steel

Maximum Water Temperature: 180ºF (+82ºC)

Nozzle Tip & Seat Material: Stainless Steel

Inlet Connection Thread: 1/2” FNPT

Request Quote
Email for Quote
Call for Quote
Categories , , , , , Tags , , ,

Description

The Marksman™ is a long distance cleaning nozzle, designed to provide precision in distance and industrial cleaning performance. Engineered for any hard to reach cleaning applications in the municipal, utility, and industrial markets, the Marksman keeps the operators safer and more efficient while drastically reducing water consumption.

Maximum Inlet Pressure: 2,500 PSI

Housing Material: Stainless Steel

Maximum Water Temperature: 180ºF (+82ºC)

Nozzle Tip & Seat Material: Stainless Steel

Inlet Connection Thread: 1/2” FNPT

Specifications

Nozzle
Size



Part
Number

 Flow Rate Chart (GPM)
@ 500
PSI (34 bar)		 @ 1000
PSI (70 bar)		 @ 1500
PSI (103 bar)		 @ 2000
PSI (138 bar)		 @ 2500
PSI (172 bar)
#12.0

1003150-120

 4.8 GPM (18.2 LPM) 6.8 GPM (25.7 LPM) 8.3 GPM (31.4 LPM) 9.6 GPM (36.3 LPM) 10.8 GPM (40.9 LPM)
#15.0

1003150-150

 5.8 GPM (22.0 LPM) 8.2 GPM 31.0 LPM) 10.0 GPM (37.9 LPM) 11.6 GPM (43.9 LPM) 13.0 GPM (49.2 LPM)
#20.0

1003150-200

 7.8 GPM (29.5 LPM) 11.0 GPM 41.6 LPM) 13.5 GPM (51.1 LPM) 15.6 GPM (59.1 LPM) 17.4 GPM (65.9 LPM)

Additional information

Orifice Size

#12.0, #15.0, #20.0
