Application:

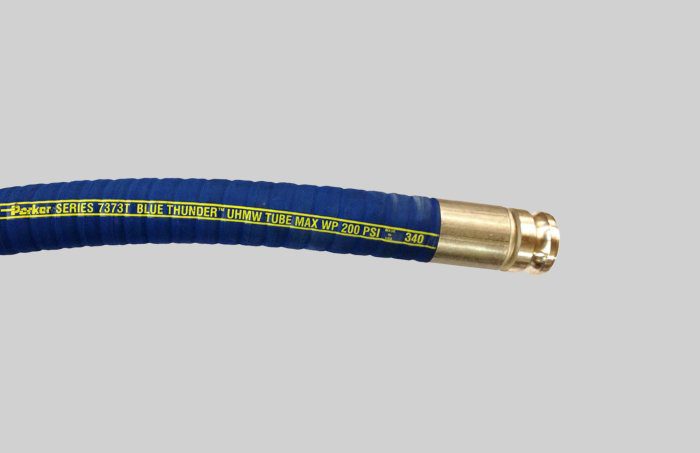

This corrugated hose provides flexibility and durability in chemical full suction and discharge applications. The clear UHMW polyethylene tube will handle 98% of the most common chemicals without leaching and contaminating the product being conveyed.
Tube:
Ultra high molecular weight polyethylene (UHMW)
Cover:
Corrugated blue EPDM
Reinforcement:
Textile plies with helix wire
Temp Range:
-40°F to +250°F
Application:
This corrugated hose provides flexibility and durability in chemical full suction and discharge applications. The clear UHMW polyethylene tube will handle 98% of the most common chemicals without leaching and contaminating the product being conveyed.
Tube:
Ultra high molecular weight polyethylene (UHMW)
Cover:
Corrugated blue EPDM
Reinforcement:
Textile plies with helix wire
Temp Range:
-40°F to +250°F
|
Part # |
I.D. (in.) | O.D. (in.) | Working PSI | Bend Radius (in.) | Weight (lbs/ft) | Standard Length |
| BTH150 | 1-1/2" | 2.13" | 200 | 4.0 | .89 | 150 |
| BTH200 | 2" | 2.63" | 200 | 5.0 | 1.16 | 150 |
| BTH300 | 3" | 3.63" | 200 | 6.5 | 1.68 | 150 |
| BTH400 | 4" | 4.68" | 150 | 9.5 | 2.26 | 150 |
