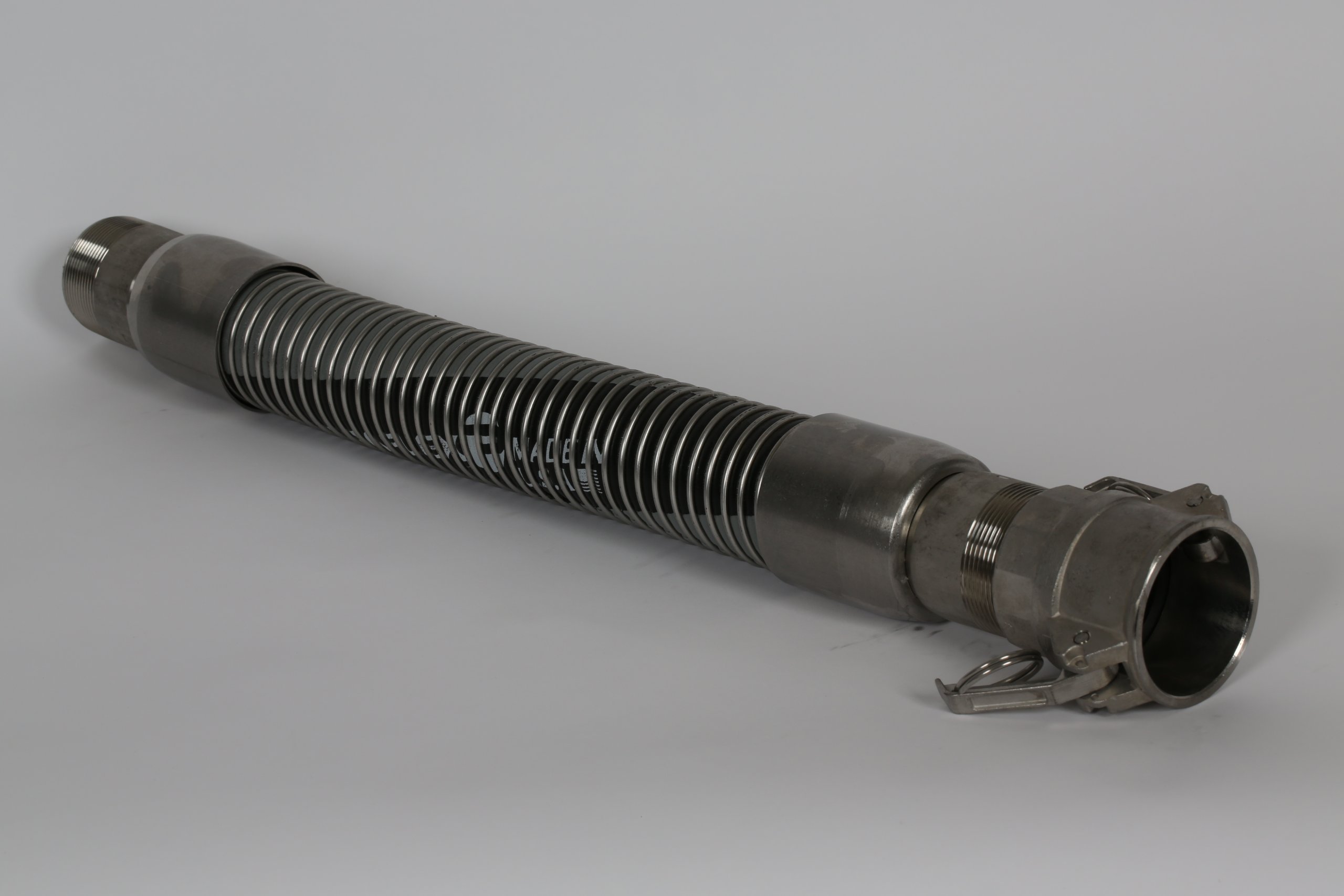

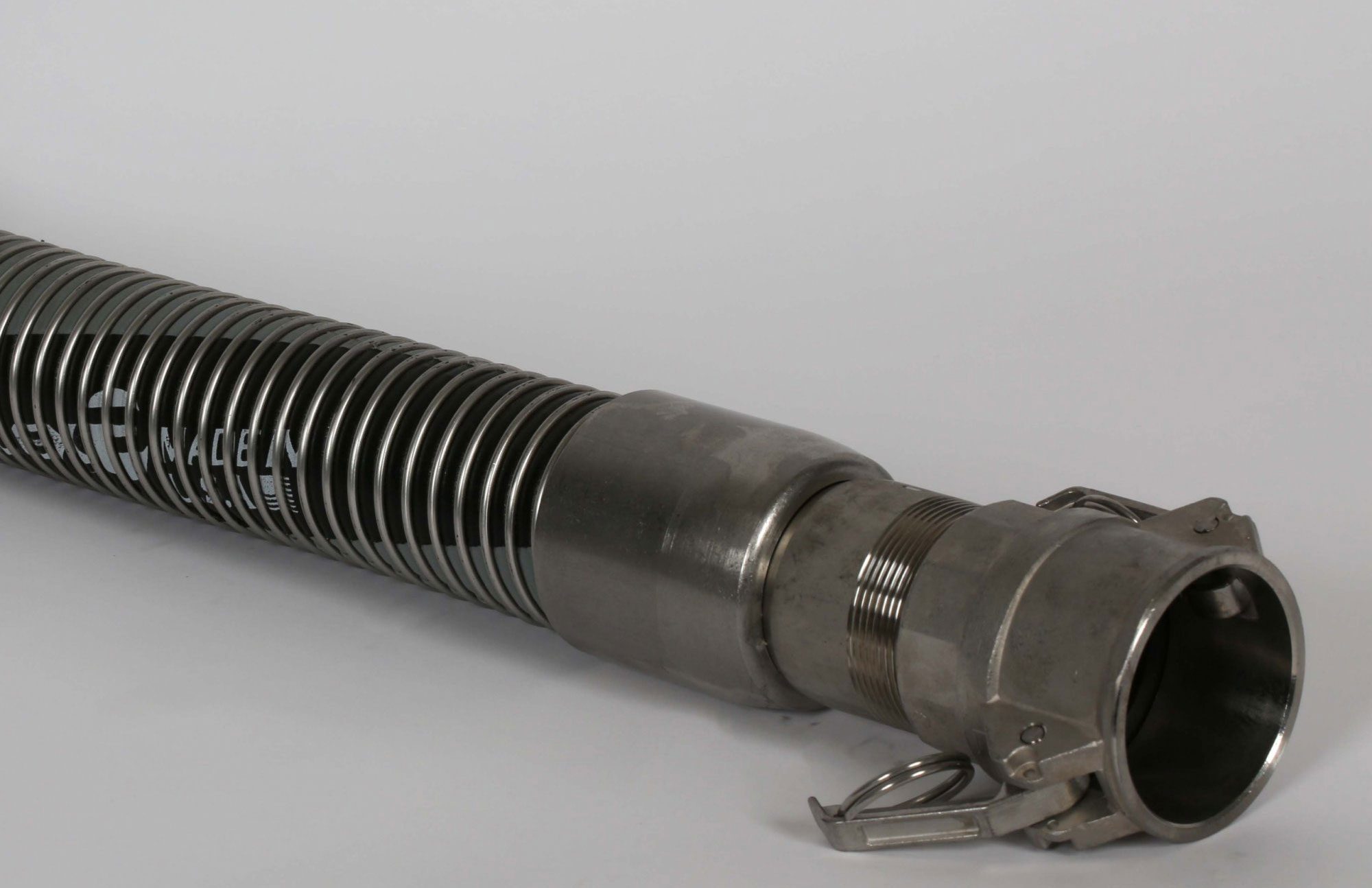

PERAFLEX SGT OR SST AGGRESSIVE CHEMICAL HOSE

A PTFE lined suction and discharge hose designed to convey the most aggressive chemicals when a polypropylene liner is inadequate

Call for price
Categories: , ,

Download:   Catalog

Description

Applications:
• Transfer of aggressive chemicals and solvents
• Resists abrasion, ozone, and fire
• 5 to 1 safety ratio

Tube:
• PTFE or FEP Teflon liner supported by seamless polypropylene

Temp Range:
• -40°F to +212°F

Reinforcement:
• High-density polyethylene woven fabric with internal and external wires

Cover:
• Grey vinyl coated polyester

Wire:
• SGT: Internal – stainless steel
External – galvanized
SST: Internal – stainless steel
External – stainless steel

Specifications

SGT

    Part #

SST

Part #

I.D

(in.)

Working

PSI

Bend

Radius ( in.)

Weight

(lbs/ft)

Standard

Length

SGT100 SST100 1 200 2.0 .65 80
SGT125 SST125 1 1/4 200 - - 80
SGT150 SST150 1 1/2 200 3.5 1.0 80
SGT200 SST200 2 200 4.0 1.3 80
SGT250 SST250 2 1/2 200 4.5 2.1 80
SGT300 SST300 3 200 6.0 2.5 80
SGT400 SST400 4 200 7.0 3.1 80
SGT600 SST600 6 200 22 7.9 80

Additional information

Diameter

1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 6"

Type

SST, SGT
