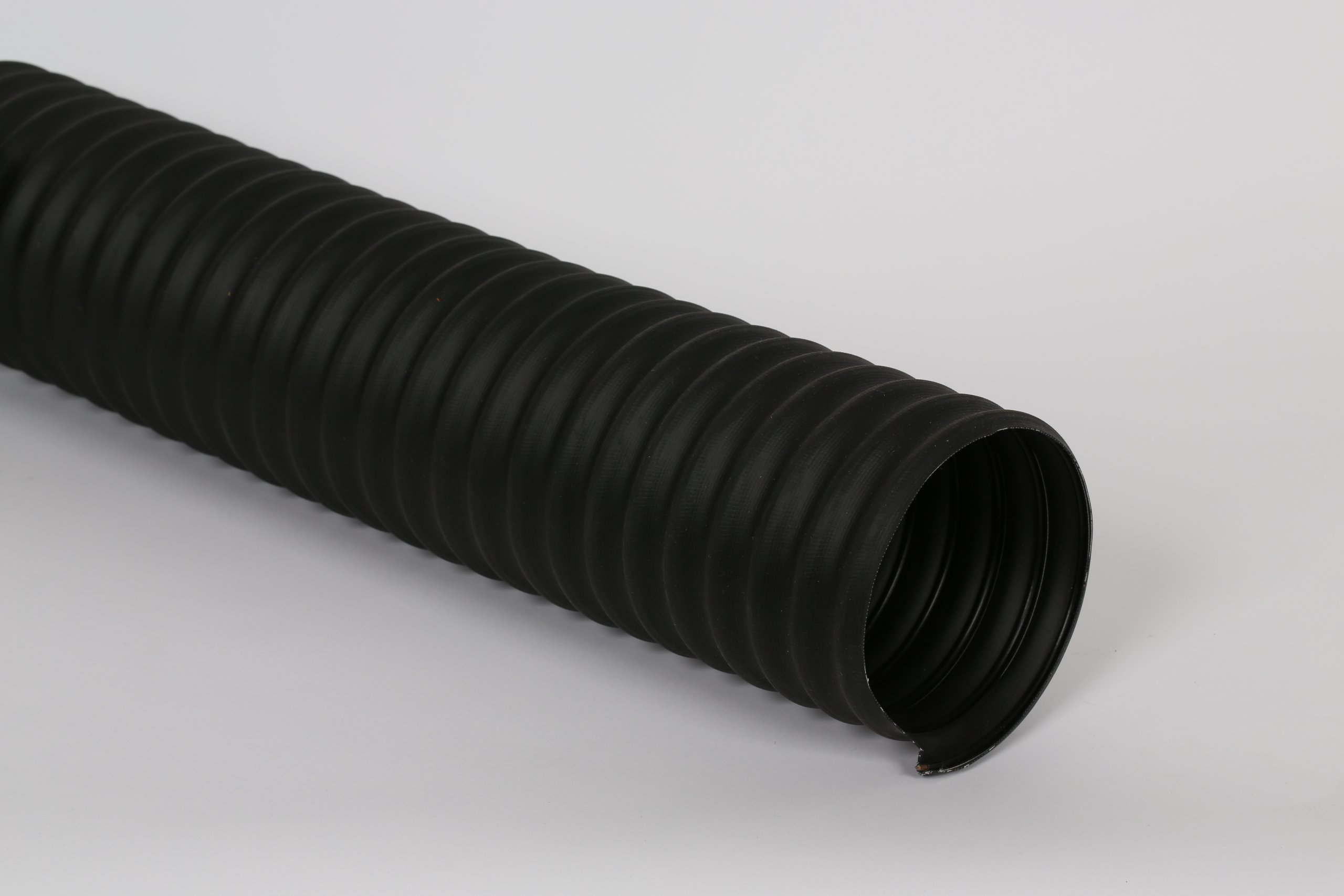

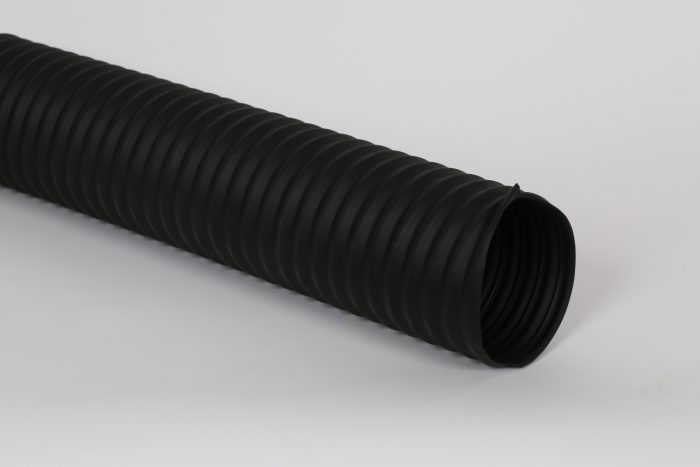

RFH-045 – HEAVY DUTY GENERAL PURPOSE DUCTING

Heavy duty general purpose ducting, used in the same applications as standard RFH ducting, at higher working pressures.

Call for price
Categories: ,

Description

Applications:
• Same as RFH but can handle higher pressure and abrasion

Tube:
• Thermoplastic rubber

Reinforcement/Cover:
• Wire helix

Temp Range:
• -60°F to +275°F (intermittent to 300˚F)

Specifications

Part #

I.D

(in.)

O.D.

(in.)

Working

PSI

Bend

Radius ( in.)

Weight

Radius (in.)

Standard

Length

RFHBK400HD 4 4.35 12 6.50 .66 25,50
RFHBK600HD 6 6.38 7 8.50 .91 25,50
RFHBK800HD 8 8.41 8 12.00 1.10 25,50
RFHBK1000HD 10 10.45 8 14.00 1.66 25,50
RFHBK1200HD 12 12.45 6 16.00 2.20 25,50

Additional information

Diameter

4", 6", 8", 10", 12"
