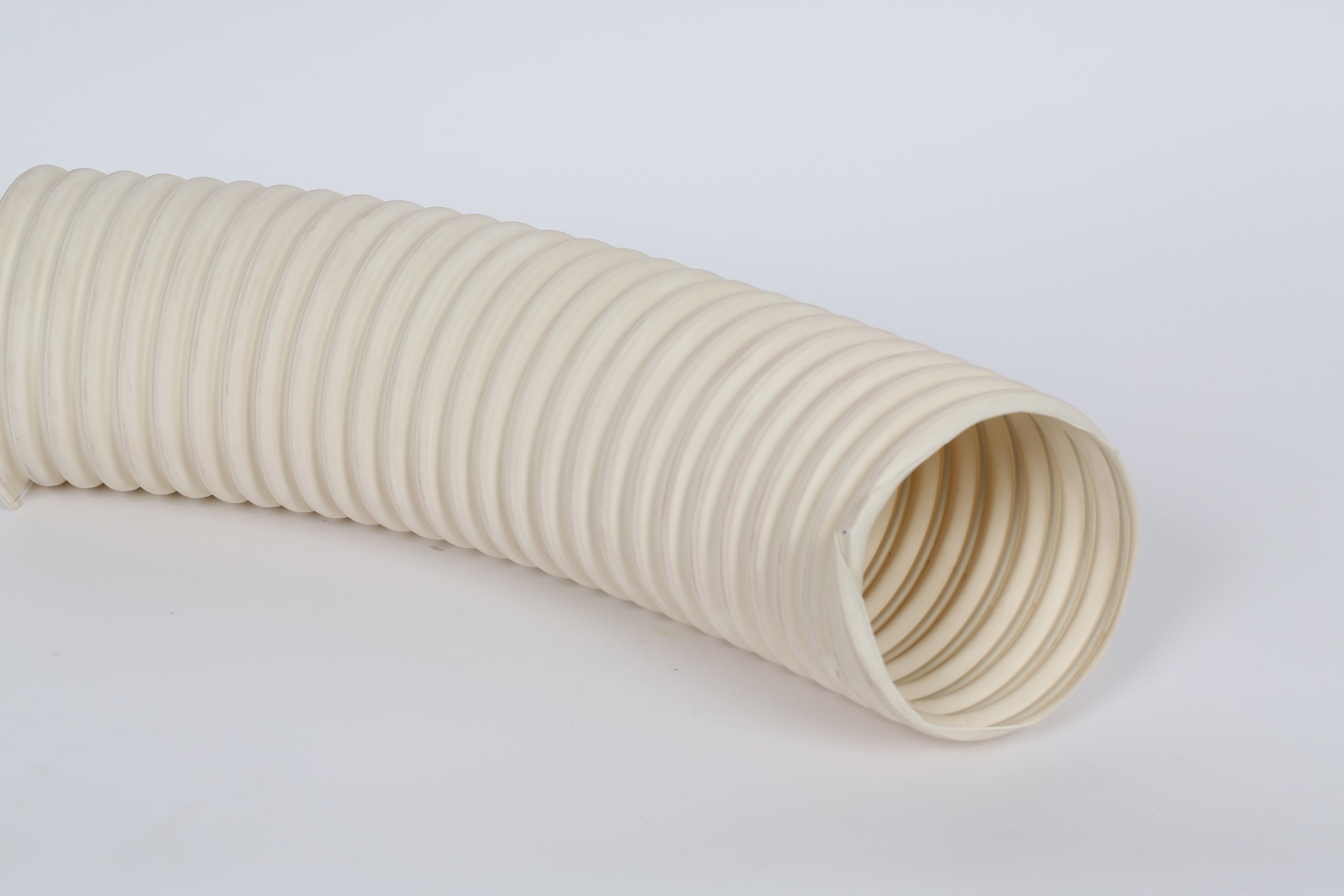

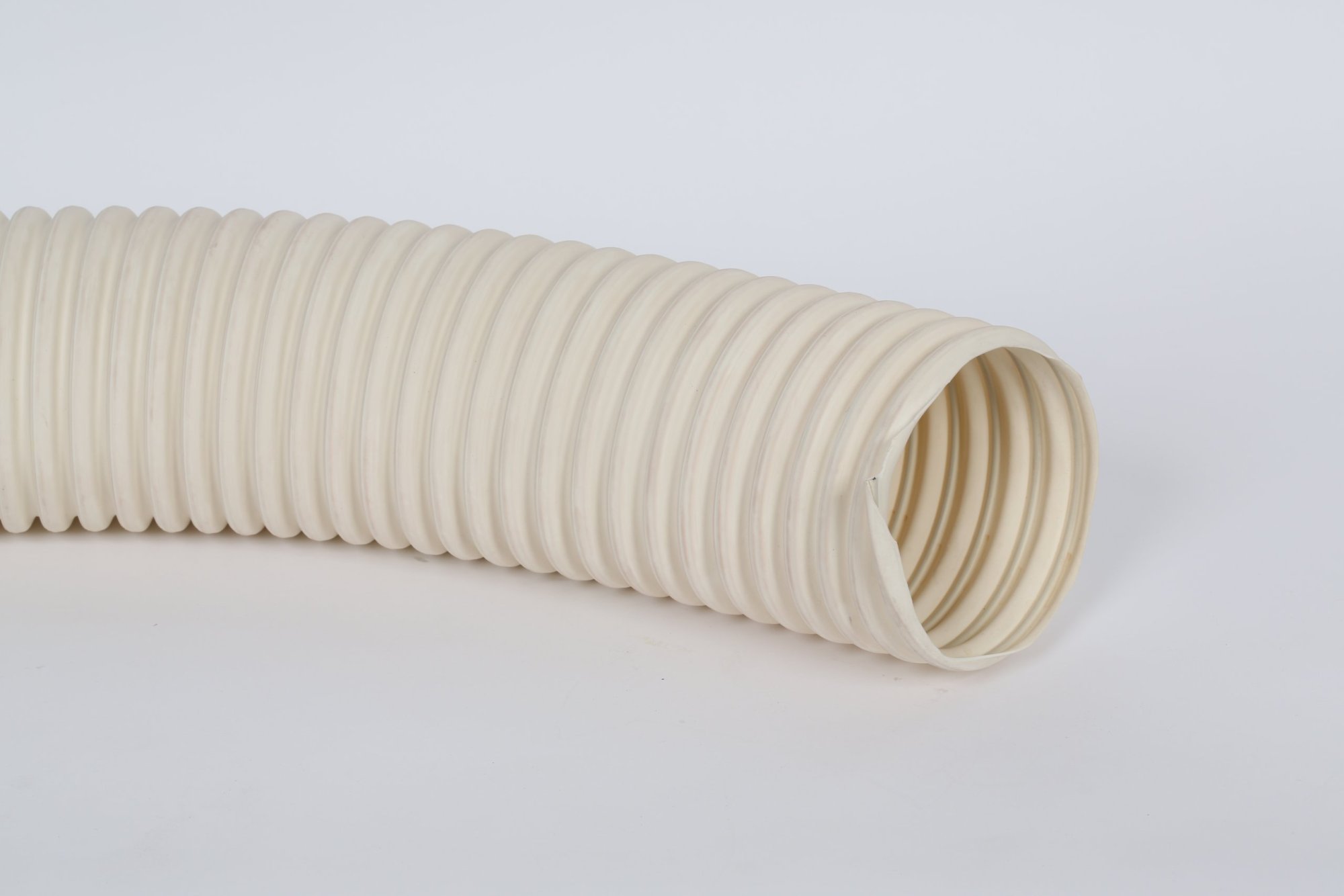

Applications:
• Use with pharmaceutical products
• Use with food
• FDA approved
Tube:
• White thermoplastic rubber
Reinforcement:
• Internal wire helix
Temp Range:
• -60°F to +275°F
*other sizes available
Applications:
• Use with pharmaceutical products
• Use with food
• FDA approved
Tube:
• White thermoplastic rubber
Reinforcement:
• Internal wire helix
Temp Range:
• -60°F to +275°F
*other sizes available
| Part # |
I.D (in.) |
O.D. (in.) |
Working PSI |
Bend Radius ( in.) |
Weight Radius (in.) |
Standard Length |
| RFHWH200 | 2 | 2.27 | 17 | 3.50 | .24 | 25,50 |
| RFHWH300 | 3 | 3.27 | 10 | 4.25 | 1.20 | 25,50 |
| RFHWH400 | 4 | 4.29 | 10 | 6.50 | .50 | 25,50 |
| RFHWH500 | 5 | 5.29 | 9 | 8.00 | .63 | 25,50 |
| RFHWH600 | 6 | 6.29 | 8 | 8.75 | .85 | 25,50 |
| RFHWH800 | 8 | 8.35 | 6 | 12.00 | 1.20 | 25,50 |
| RFHWH1000 | 10 | 10.38 | 4 | 12.50 | 1.63 | 25,50 |
| Diameter | 2", 3", 4", 5", 6", 8", 10" |
|---|
