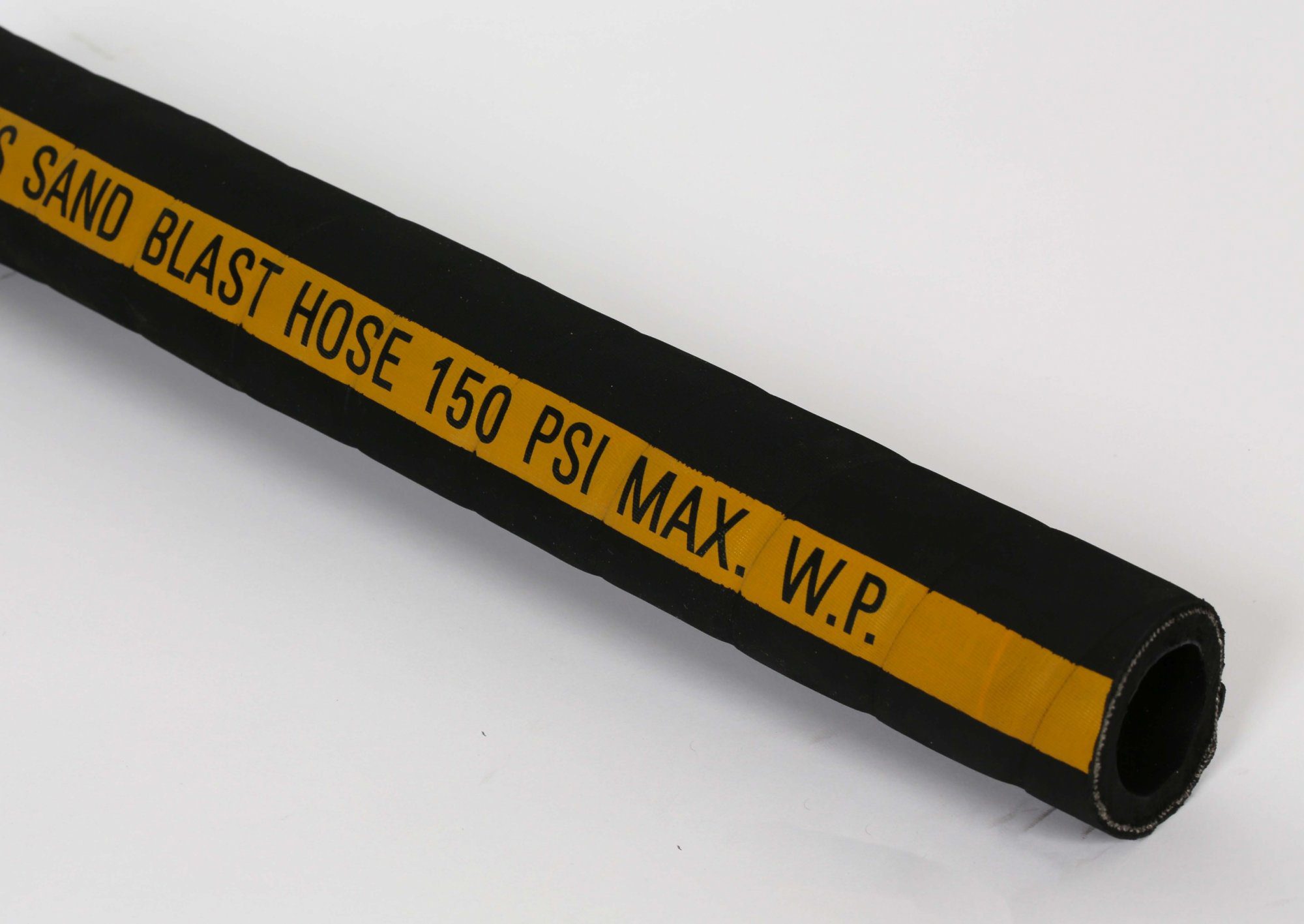

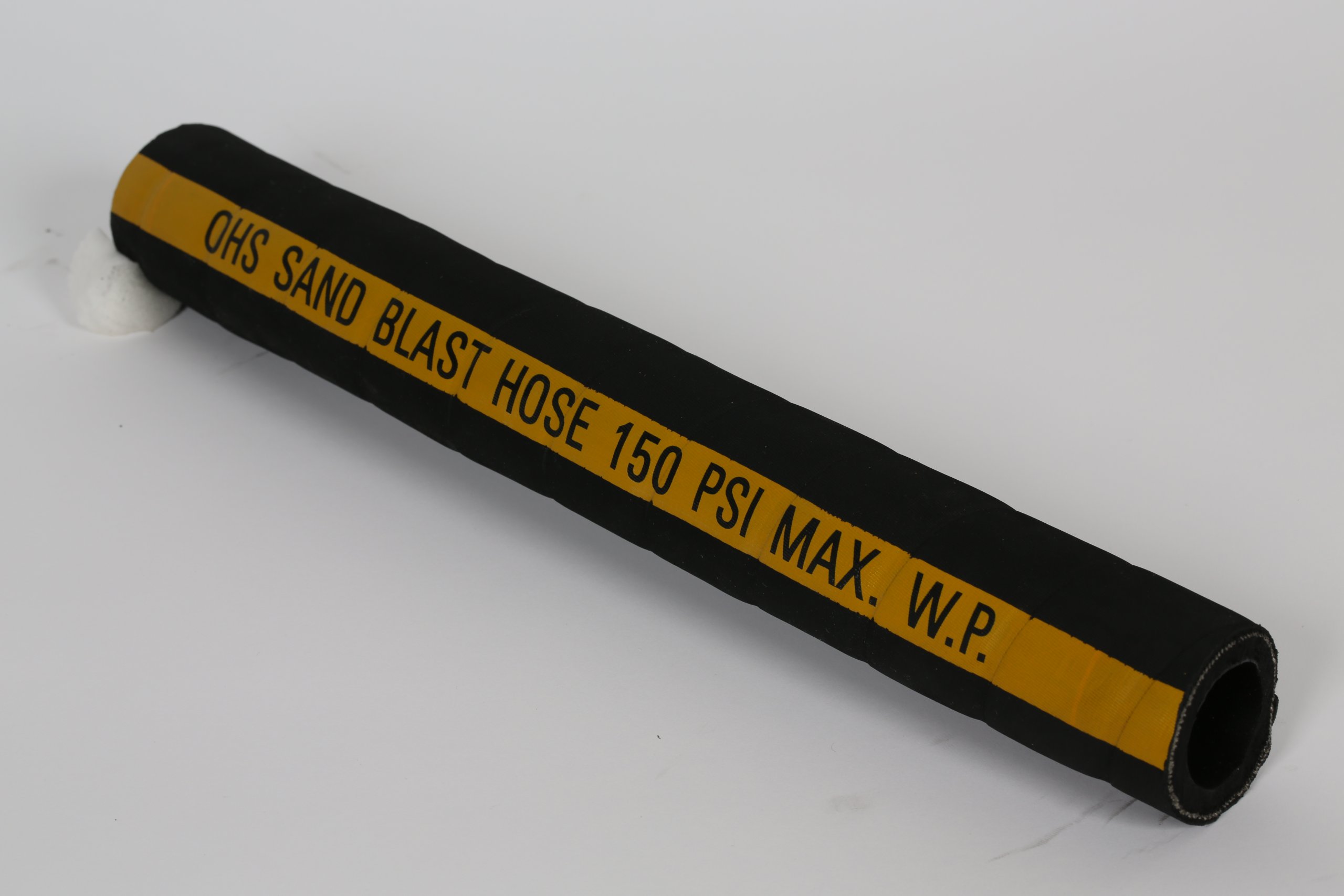

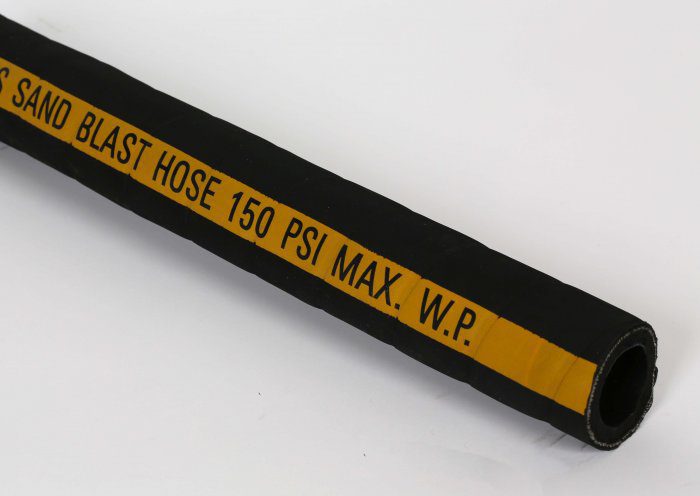

Applications:
• For conducting sand, steel shot, and other abrasives for blast cleaning
Tube:
• Thick black static conductive abrasion resistant natural rubber
Reinforcement:
• Two layers of synthetic textile cords
Cover:
• Black static conductive synthetic rubber
Temp Range:
• -30°F to +180°F
Applications:
• For conducting sand, steel shot, and other abrasives for blast cleaning
Tube:
• Thick black static conductive abrasion resistant natural rubber
Reinforcement:
• Two layers of synthetic textile cords
Cover:
• Black static conductive synthetic rubber
Temp Range:
• -30°F to +180°F
Part # |
I.D. (in.) |
O.D. (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
ISB075 |
3/4" |
1.50" |
150 |
- |
- |
50, 100 |
ISB050 |
1/2" |
|
150 |
- |
- |
50, 100 |
OHSSB125 |
1-1/4" |
2.16" |
150 |
- |
1.22 |
50, 100 |
OHSSB150 |
1-1/2" |
2.36" |
150 |
- |
1.36 |
50, 100 |
Other sizes available upon request. Ask us!
| Inner Diameter | 1-1/2", 1-1/4" |
|---|
