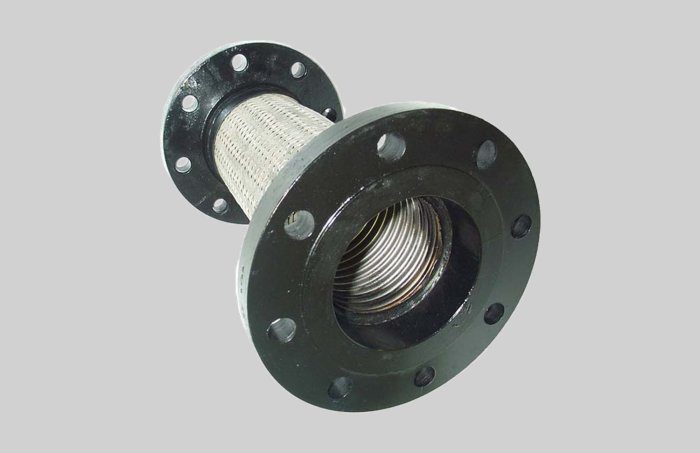

Series 800 Stainless Steel Hose

Construction: Annular / Close
Hose Material: 316 or 321 Stainless Steel
Braid Material: 304 Stainless Steel (316 available on request)
Characteristics: Heavy Weight / Medium Flexibility

Description

Construction: Annular / Close
Hose Material: 316 or 321 Stainless Steel
Braid Material: 304 Stainless Steel (316 available on request)
Characteristics: Heavy Weight / Medium Flexibility

Specifications

Normal

I.D

No.

Braids

O.D

(in.)

Weight Per

Foot (lbs.)

Constant (di.)

Flexing (in.)

Bend (di.)

Static (in.)

Max Work

PSI

Max Test

PSI

Burst

PSI

1/4 ”

0

1

2

.50

.57

.64

.09

.17

.26

5.00 2.50

180

2562

4099

270

3843

6148

-

10250

16400

3/8”

0

1

2

.67

.74

.81

.13

.25

.36

5.50 2.75

100

1501

2401

150

2251

3602

-

6004

9604

1/2”

0

1

2

.82

.92

1.02

.39

.63

.87

8.00 4.00

80

2194

3510

120

3291

5265

-

8777

14040

3/4”

0

1

2

1.21

1.31

1.41

.48

.79

1.10

8.00 4.00

70

1311

2098

105

1966

3147

-

5244

8392

1”

0

1

2

1.50

1.60

1.70

.79

1.20

1.61

9.00 4.50

40

1069

1710

60

1603

2565

-

4276

6840

1  1/4”

0

1

2

1.85

1.97

2.10

.79

1.20

1.61

10.00 5.00

33

1110

1776

49

1665

2664

-

4443

7040

    1 1/2”

0

1

2

2.17

2.30

2.43

1.36

2.11

2.86

10.00 5.00

20

868

1388

30

1302

2082

-

3472

5552

2”

0

1

2

2.51

2.64

2.76

1.60

2.56

3.52

11.50 5.75

15

810

1296

23

1215

1944

-

3240

5184

2 1/2”

0

1

2

3.23

3.36

3.49

2.00

3.12

3.30

24.00 12.00

10

578

925

15

867

1387

-

2312

3700



3”

0

1

2

3.78

3.91

4.03

1.21

2.00

2.80

22.00 9.00

10

316

506

15

474

758

-

2160

3456

4”

0

1

2

4.81

4.93

5.05

3.10

4.55

6.00

40.00 20.00

8

333

533

12

499

799

-

1332

2132

6”

0

1

2

6.87

7.10

7.33

3.85

6.45

9.05

48.00

24.00

5

266

425

7.50

399

637

-

1062

1700
