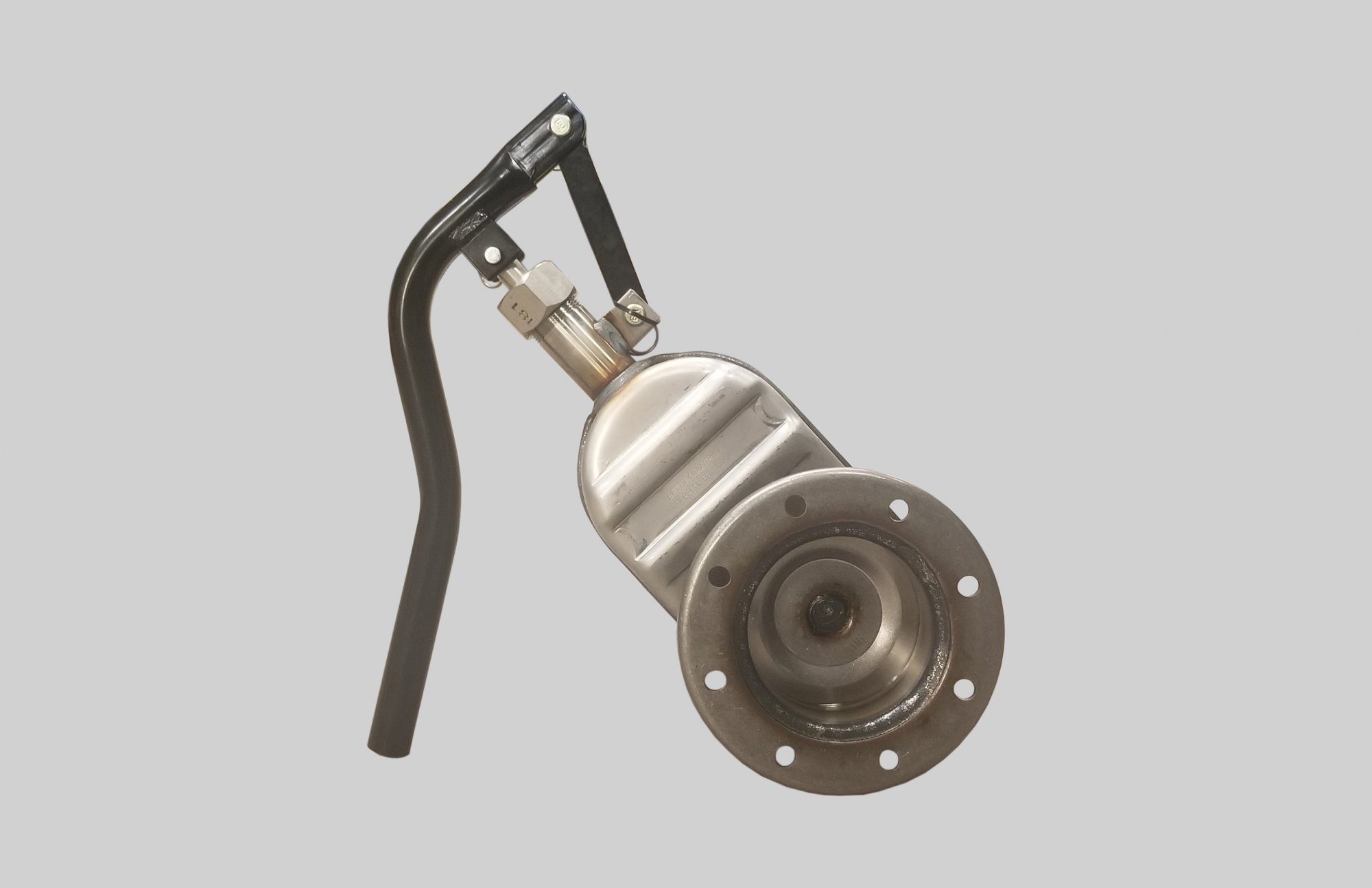

Sliding Gate Valve – Flange x Flange Drilling

Specifications

TTMA Drilling - TTMA Flange x Flange

Part # Size Material Weight (lbs)
SV903MSM 3 Steel 11.4
SV903SSM 3 316 Stainless 11.4
SV904MSM 4 Steel 14.9
SV904SSM 4 316 Stainless 14.9
SV906MSM 6 Steel 32.5
SV906SSM 6 316 Stainless 32.5

ANSI Drilling - ANSI Flange x Flange

Part # Size Material Weight (lbs)
SV953MSM 3 Steel 19
SV953SSM 3 316 Stainless 19
SV954MSM 4 Steel 24.5
SV954SSM 4 316 Stainless 24.5
SV956MSM 6 Steel 46
SV956SSM 6 316 Stainless 46

TTMA Flange

Size O.D. B.C. Holes Thick PSI
3 6 1/8 4 7/8 8 - 7/16 0.1345 50
4 7 1/8 5 7/8 8 - 7/16 0.1345 50
6 9 3/8 8 1/8 12 - 7/16 0.1345 50

ANSI Flange

Size O.D. B.C. Holes Thick PSI
3 7 1/2 6 4 - 3/4 1/2 50
4 9 7 1/2 8 - 3/4 1/2 50
6 11 9 1/2 8 - 7/8 1/2 50
