Sliding Gate Valve – Flange x Thread Drilling

Categories Tank Truck Equipment, Dry Bulk, Dry Bulk Parts, Dry Bulk Tank Truck Parts, Valves Tags ansi, drilling, flange, Gate, sliding, Steel, thread, ttma, Valve

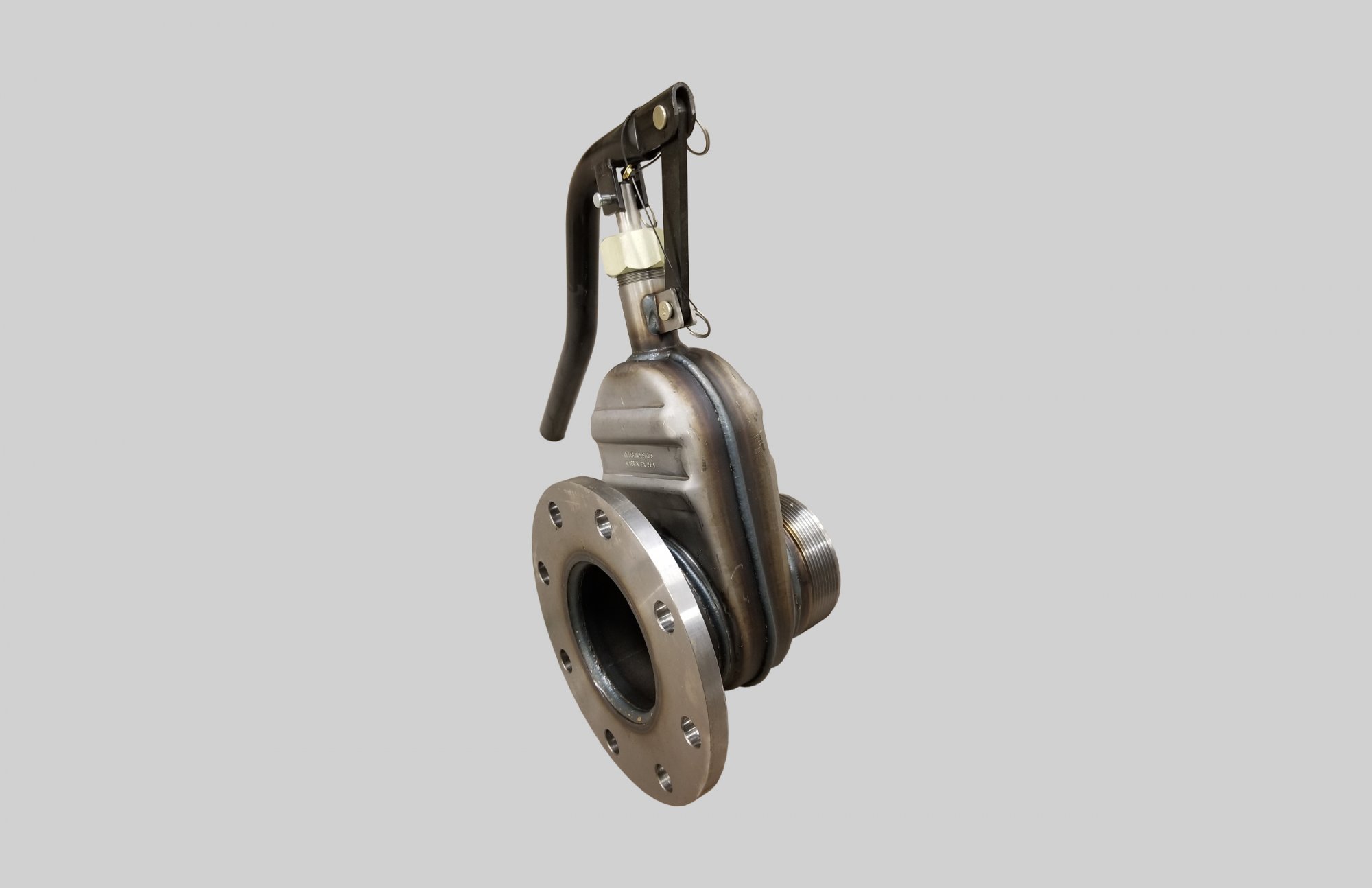

Sliding Gate Valve - Flange x Thread Drilling

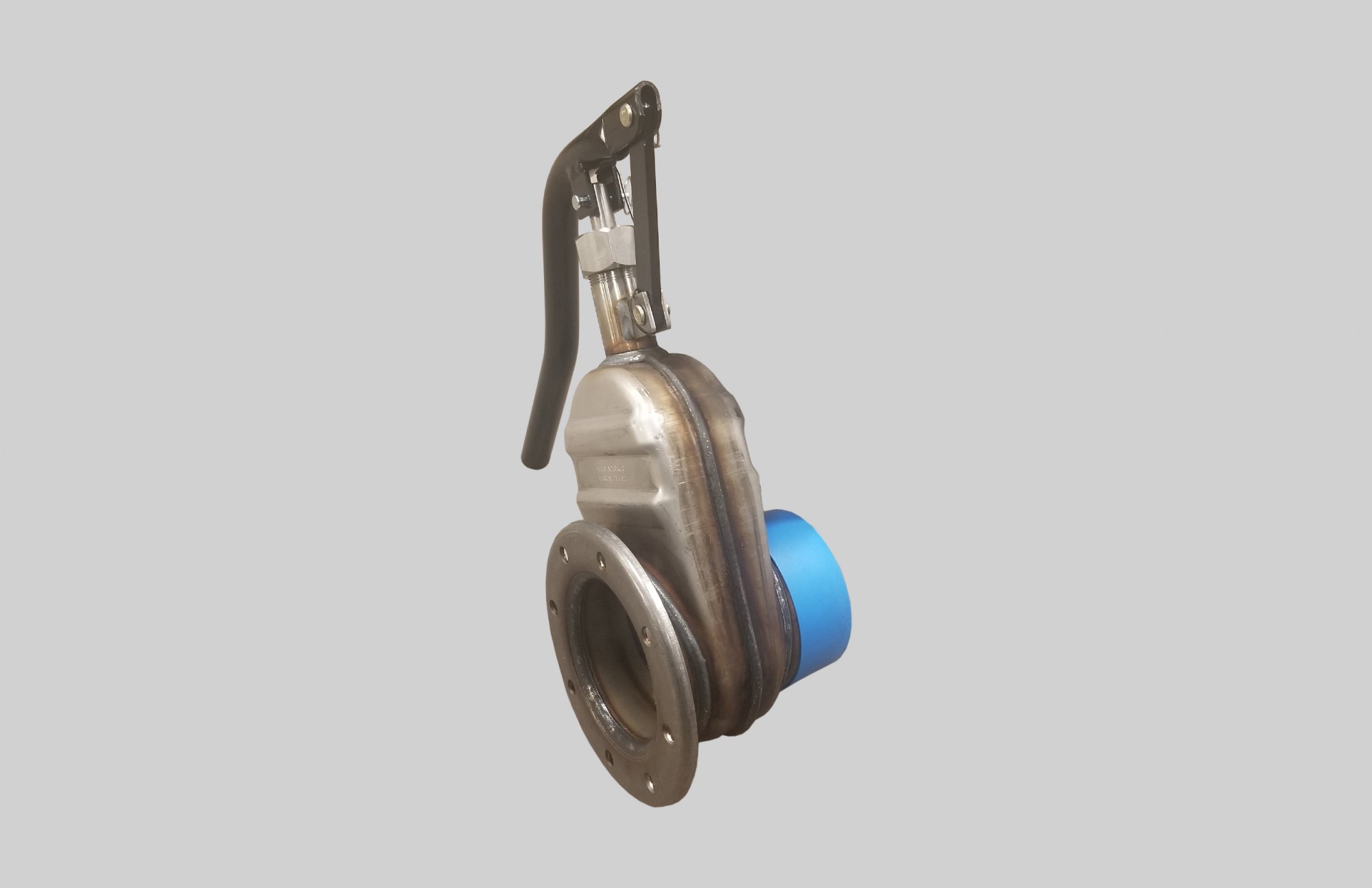

Sliding Gate Valve - Flange x Thread Drilling - Image 2

Specification

Specifications

TTMA Drilling - TTMA Flange x Thread

Part #	Size	Material	Weight (lbs)
SV913MSM	3	Steel	10.9
SV913SSM	3	316 Stainless	10.9
SV914MSM	4	Steel	14.1
SV914SSM	4	316 Stainless	14.1
SV916MSM	6	Steel	30
SV916SSM	6	316 Stainless	30

ANSI Drilling - ANSI Flange x Thread

Part #	Size	Material	Weight (lbs)
SV963MSM	3	Steel	15
SV963SSM	3	316 Stainless	15
SV964MSM	4	Steel	20
SV964SSM	4	316 Stainless	20
SV966MSM	6	Steel	40
SV966SSM	6	316 Stainless	40

TTMA Flange

Size	O.D.	B.C.	Holes	Thick	PSI
3	6 1/8	4 7/8	8 - 7/16	0.1345	50
4	7 1/8	5 7/8	8 - 7/16	0.1345	50
6	9 3/8	8 1/8	12 - 7/16	0.1345	50

ANSI Flange

Size	O.D.	B.C.	Holes	Thick	PSI
3	7 1/2	6	4 - 3/4	1/2	50
4	9	7 1/2	8 - 3/4	1/2	50
6	11	9 1/2	8 - 7/8	1/2	50
