SMOOTH BORE TEFLON HOSE

Categories: Assemblies, Metal Hose Assemblies, Teflon

Description
Specification

Description

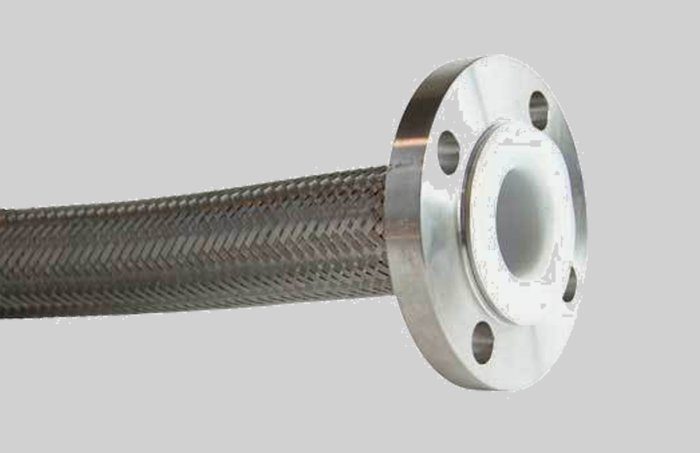

Lined, Stainless Steel Hose, Lap Joint Flange Both Ends

Temperature Range:
-65°F to +350°F

Test Pressure:
1.5 times oper.pressure

Clean, Dry, Cap and Seal

Class 300 Flanges also available

Specifications

Nom Size	Hose I.D.	Hose O.D.	Working Pressure (P.S.I.) 70°F - 350°F	Min. Bend Radius (Inches)	Vacuum Rating @ 70°F	Vacuum Rating @ 250°F	"A" REF
1"	0.86	1.50	275 200	10	FULL	FULL	3.00
1 1/2"	1.32	2.12	275 200	12	FULL	FULL	3.00
2"	1.82	2.75	275 200	18	FULL	FULL	3.50
3"	2.90	4.10	275 200	28	FULL	26"	3.50
4"	3.75	5.12	250 190	42	FULL	24"	4.00
6"	5.75	7.30	200 160	60	22" Hg	20"	4.50
8"	7.75	9.45	185 160	84	22" Hg	C.F.	5.00
