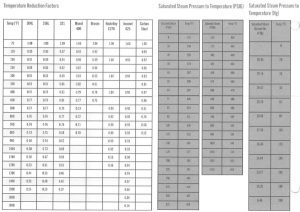

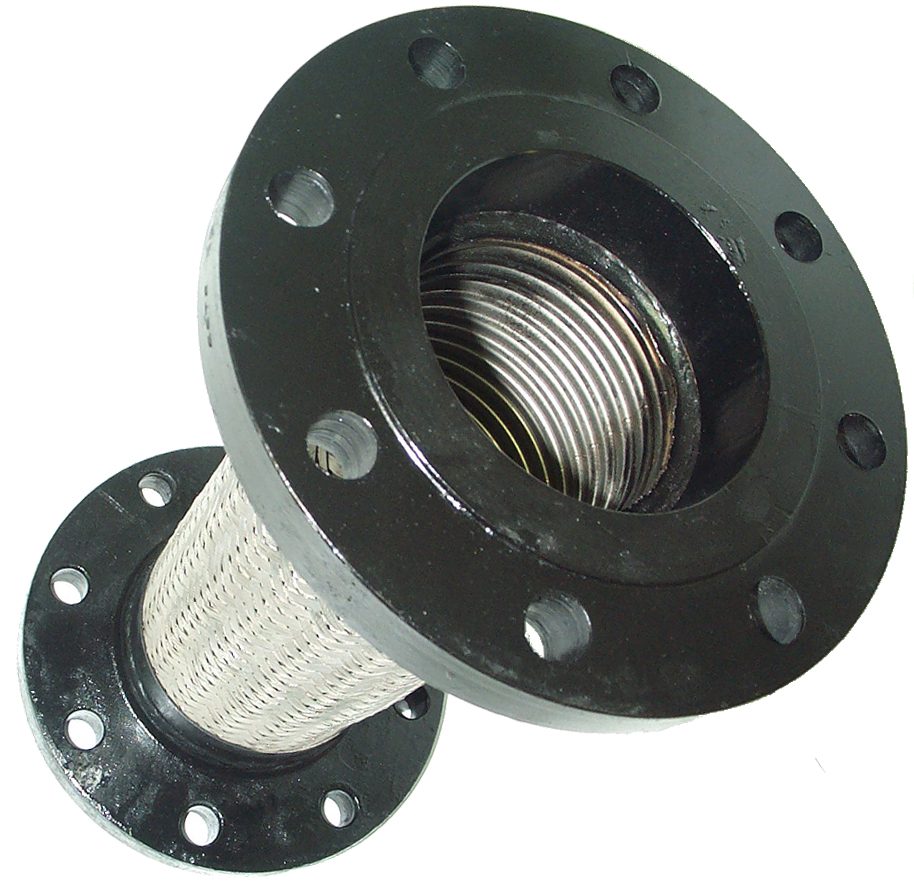

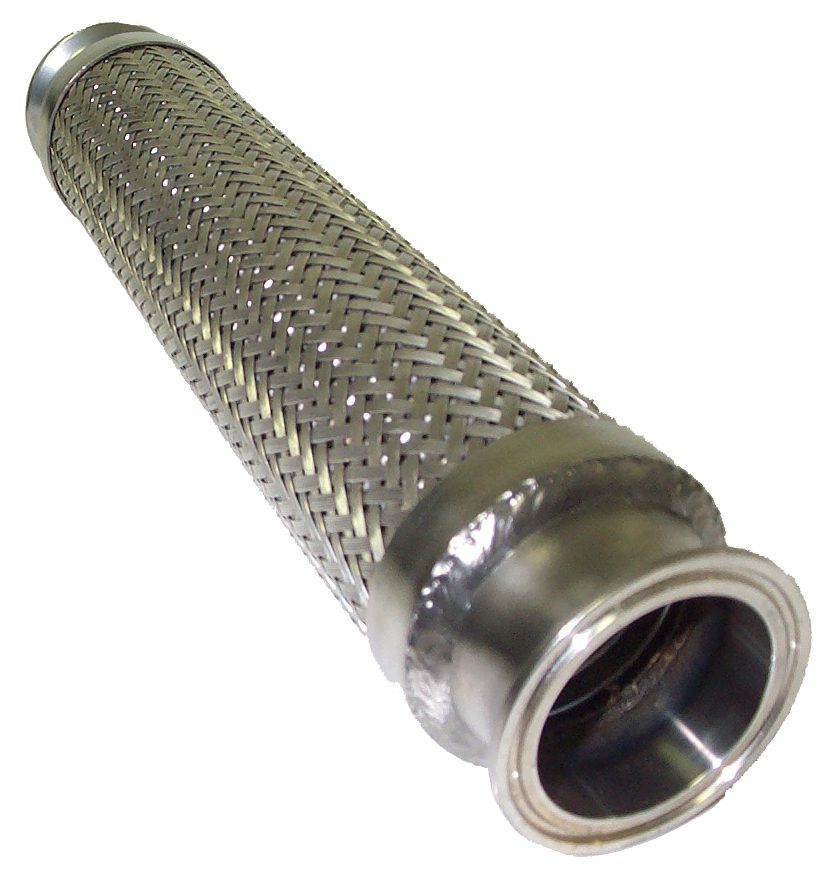

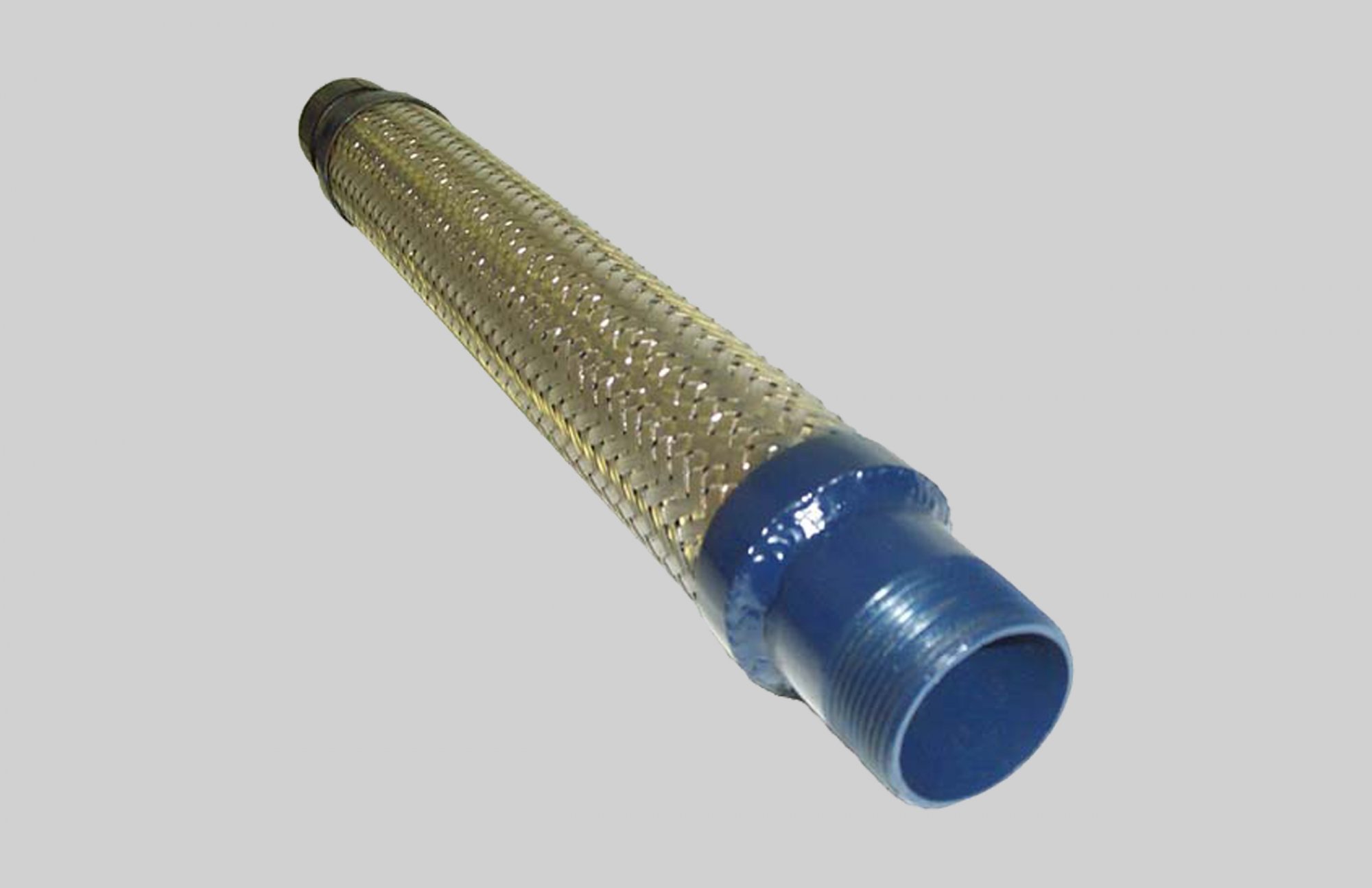

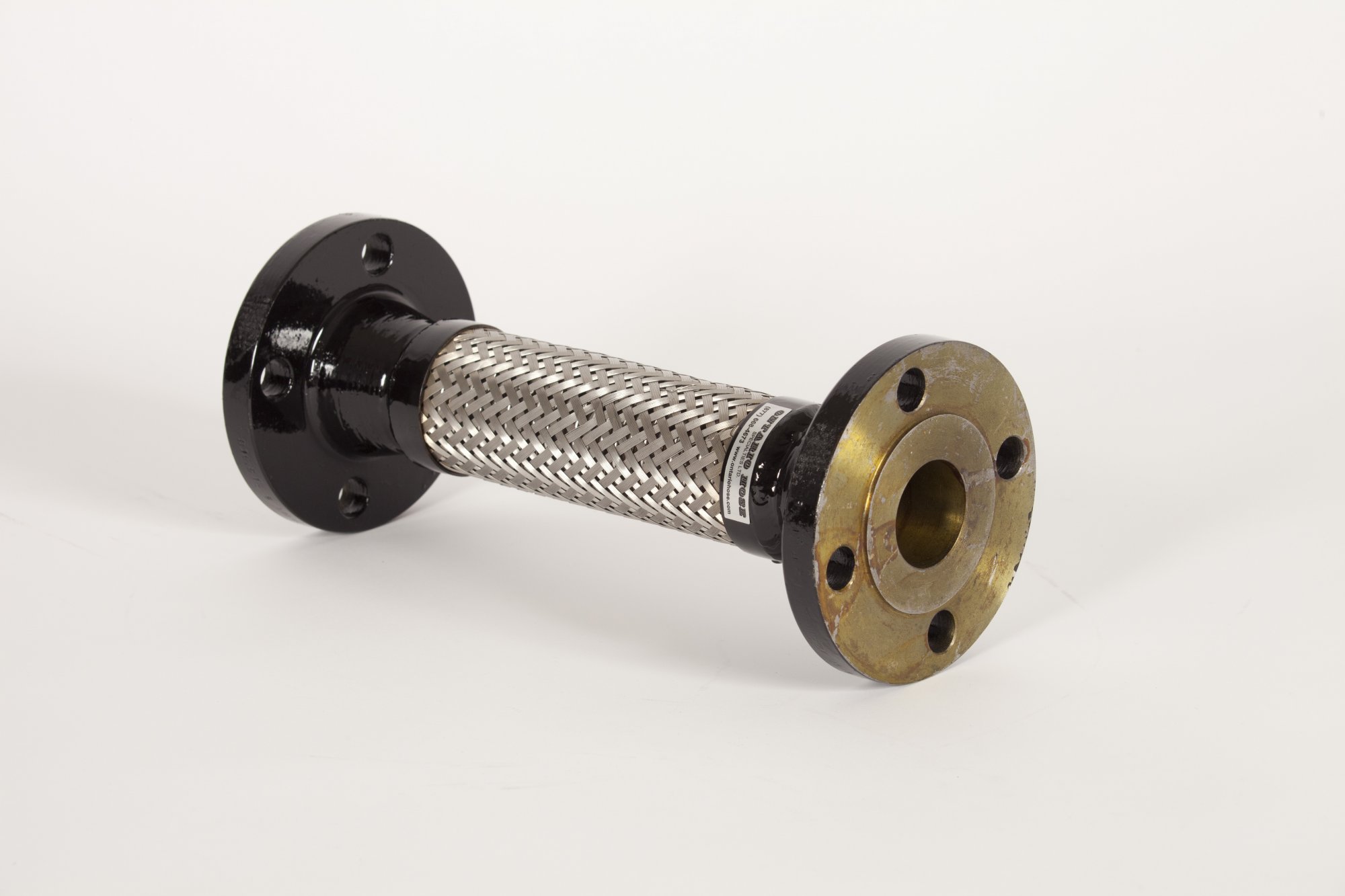

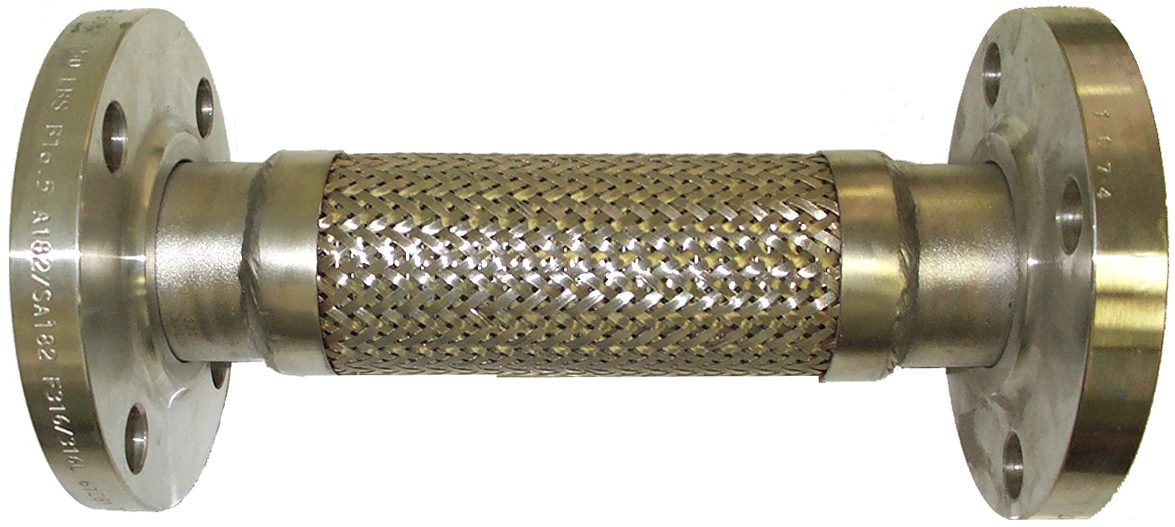

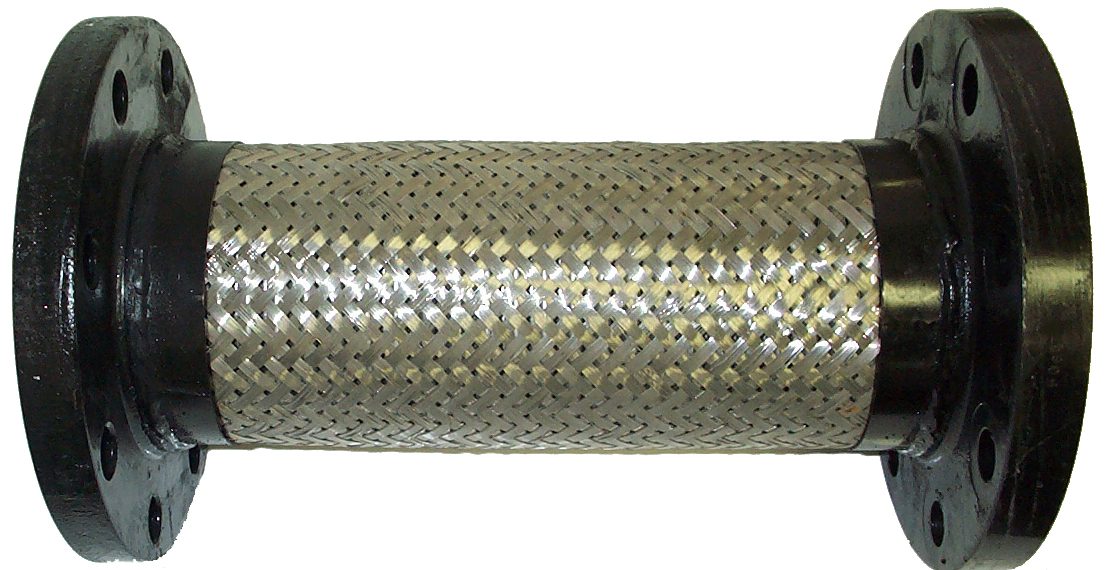

Specifications
Normal I.D |
No. Braids |
O.D (in.) |
Weight Per Foot (lbs.) |
Constant (di.) Flexing (in.) |
Bend (di.) Static (in.) |
Max Work PSI |
Max Test PSI |
Burst PSI |
1/4 ” |
0 1 2 |
.48 .57 .64 |
.09 .17 .26 |
5.00 | 1.00 |
180 2116 3125 |
270 3844 4687 |
- 8464 12500 |
3/8” |
`0 1 2 |
.63 .70 .81 |
.13 .25 .36 |
5.50 | 1.25 |
100 1501 2401 |
150 2251 3602 |
- 6004 9604 |
1/2” |
0 1 2 |
.82 .89 .96 |
.23 .34 .46 |
6.00 | 1.50 |
80 1075 1720 |
120 1613 2580 |
- 4301 6880 |
3/4” |
0 1 2 |
1.21 1.28 1.35 |
.39 .59 .79 |
8.00 | 2.25 |
70 792 1267 |
105 1188 1901 |
- 3168 5069 |
1” |
0 1 2 |
1.51 1.58 1.65 |
.53 .75 .98 |
9.00 | 2.75 |
40 571 914 |
60 857 1370 |
- 2285 3654 |
1 1/4” |
0 1 2 |
1.85 1.93 2.02 |
.76 1.07 1.37 |
10.50 | 3.50 |
25 531 850 |
38 797 1274 |
- 2125 3398 |
1 1/2” |
0 1 2 |
2.19 2.28 2.37 |
.84 1.23 1.63 |
12.00 | 4.00 |
20 472 755 |
30 708 1133 |
- 1887 3021 |
2” |
0 1 2 |
2.60 2.72 2.84 |
.90 1.52 2.14 |
15.00 | 5.00 |
15 516 826 |
23 774 1239 |
- 2064 3302 |
2 1/2” |
0 1 2 |
3.23 3.33 3.43 |
1.16 1.86 2.56 |
20.00 | 8.00 |
12 387 619 |
18 581 929 |
- 1548 2477 |
3” |
0 1 2 |
3.78 3.88 3.98 |
1.21 2.00 2.80 |
22.00 | 9.00 |
10 316 506 |
15 474 758 |
- 1264 2022 |
4” |
0 1 2 |
4.85 4.98 5.10 |
1.69 2.68 3.68 |
27.00 | 13.00 |
8 232 371 |
12 348 557 |
- 927 1485 |
5” |
0 1 2 |
5.90 6.03 6.15 |
2.50 3.75 5.00 |
31.00 | 18.00 |
6 191 306 |
9 286 458 |
- 764 1222 |
6” |
0 1 2 |
6.87 7.10 7.33 |
3.47 4.75 6.04 |
36.00 |
19.00 |
5 165 264 |
8 247 396 |
- 660 1056 |
8” |
0 1 2 |
9.09 9.19 9.28 |
5.56 9.44 13.36 |
40.00 | 20.00 |
6 234 374 |
9 350 561 |
- 934 1495 |
