For applications requiring quick exchange of different degree nozzles.

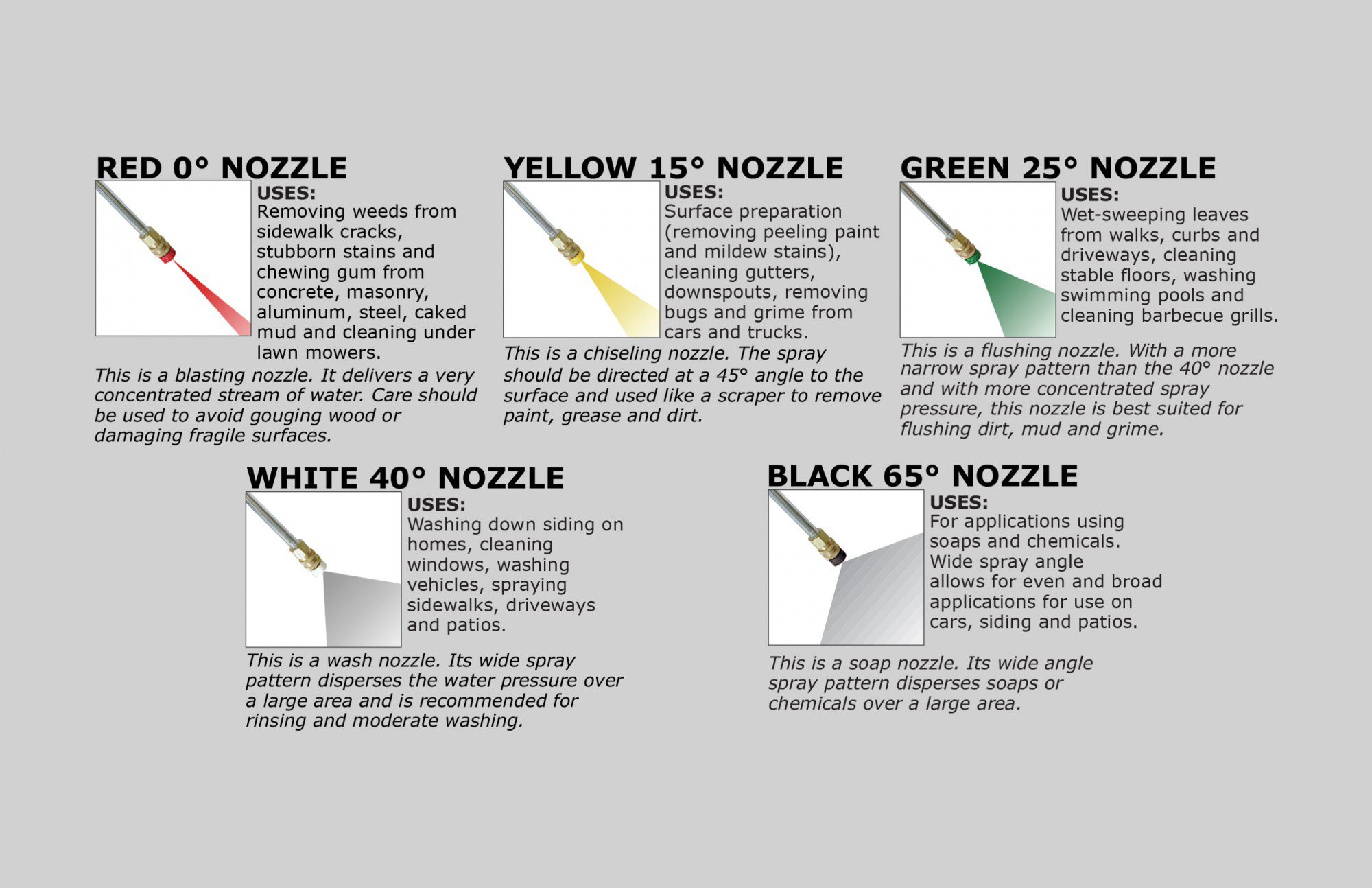

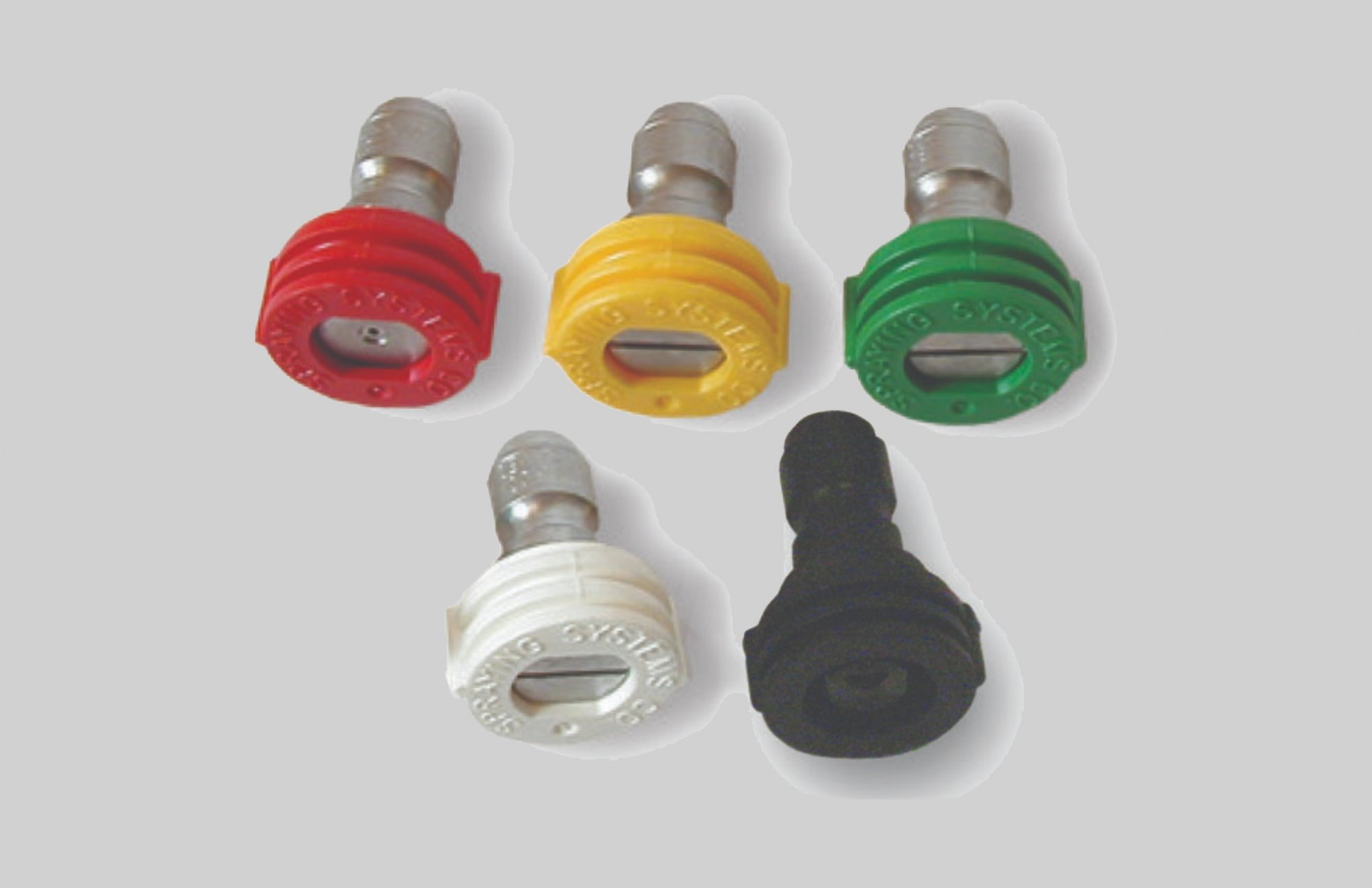

• 1/4” quick connect/disconnect design. • Spray angles range from high impact solid stream 0˚ to 40˚ flat spray. • QCMEG include color coded protective nozzle guards identify nozzle degree.
For applications requiring quick exchange of different degree nozzles.
• 1/4” quick connect/disconnect design. • Spray angles range from high impact solid stream 0˚ to 40˚ flat spray. • QCMEG include color coded protective nozzle guards identify nozzle degree.
| Orifice Size | 0° (Red) | 15° (Yellow) | 25° (Green) | 40° (White) | Soap Nozzles |
| 2.0 | - | 900001520 | 900002520 | - | - |
| 2.5 | - | - | 900002525 | - | - |
| 3.0 | 900000D30 | 900001530 | 900002530 | 900004030 | - |
| 3.5 | 900000D35 | 900001535 | 900002535 | 900004035 | - |
| 4.0 | 900000D40 | 900001540 | 900002540 | 900004040 | - |
| 4.5 | 900000D45 | 900001545 | 900002545 | 900004045 | - |
| 5.0 | 900000D50 | 900001550 | 900002550 | 900004050 | - |
| 5.5 | 900000D55 | 900001555 | 900002555 | 900004055 | - |
| 6.0 | 900000D60 | 900001560 | 900002560 | 900004060 | - |
| 6.5 | 900000D65 | 900001565 | 900002565 | 900004065 | - |
| 7.0 | 900000D70 | 900001570 | 900002570 | 900004070 | - |
| 7.5 | 900000D375 | 900001575 | 900002575 | 900004075 | - |
| 8.0 | 900000D80 | 900001580 | 900002580 | 900004080 | - |
| 8.5 | 900000D85 | 900001585 | 900002585 | 900004085 | - |
| 9.0 | 900000D90 | 900001590 | 900002590 | 900004090 | - |
| 10.0 | 900000D10 | 900001510 | 900002510 | 900004010 | - |
| 12.0 | 900000D12 | 900001512 | 900002512 | 900004012 | - |
| 15.0 | 900000D15 | 900001515 | 900002515 | 900004015 | - |
| 20.0 | 900000D20 | 900015D20 | - | - | - |
| 30.0 (Special Order) | - | 900015D30 | - | - | - |
| 35.0 (Special Order) | - | 900015D35 | - | - | - |
| 40.0 | - | - | - | - | 83900654 |
| 40.0 | - | - | - | - | 9000S2540 |
OHS #
| Part # | Description |

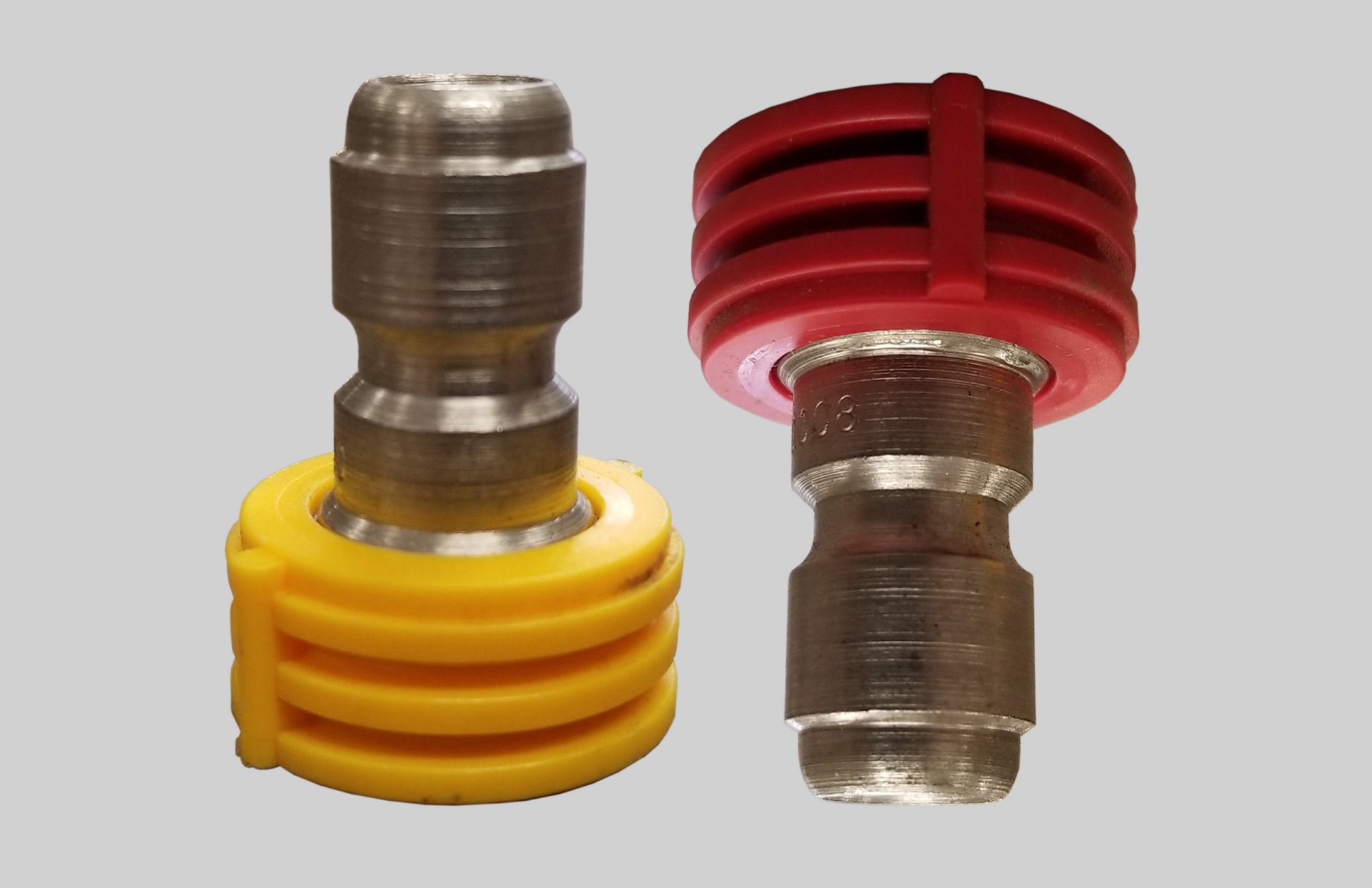

| ST-900000D80 | 1/4" #8 Red 0° Suttner Male Quick Disc Nozzle |
| ST-900001580 | 1/4" #8 Yellow 15° Suttner Male Quick Disc Nozzle |
