Applications:
• Provides the utmost in performance, reliability and durability
• Handles rugged conditions, extremes of heat and cold, and corrosive and lethal chemicals
• Teflon is non-aging, has extreme resistance to weather, and its non-stick surface makes cleaning easy

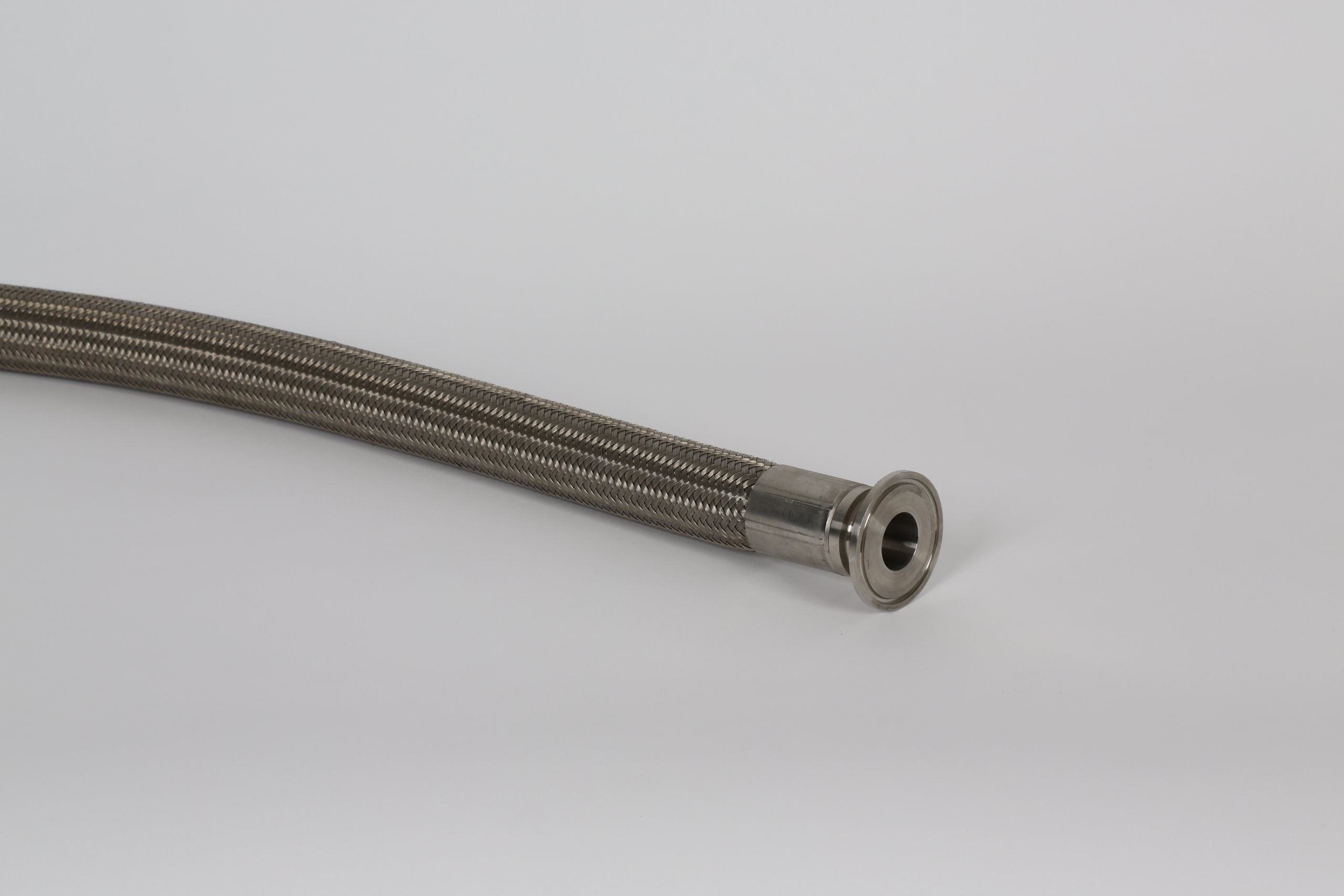

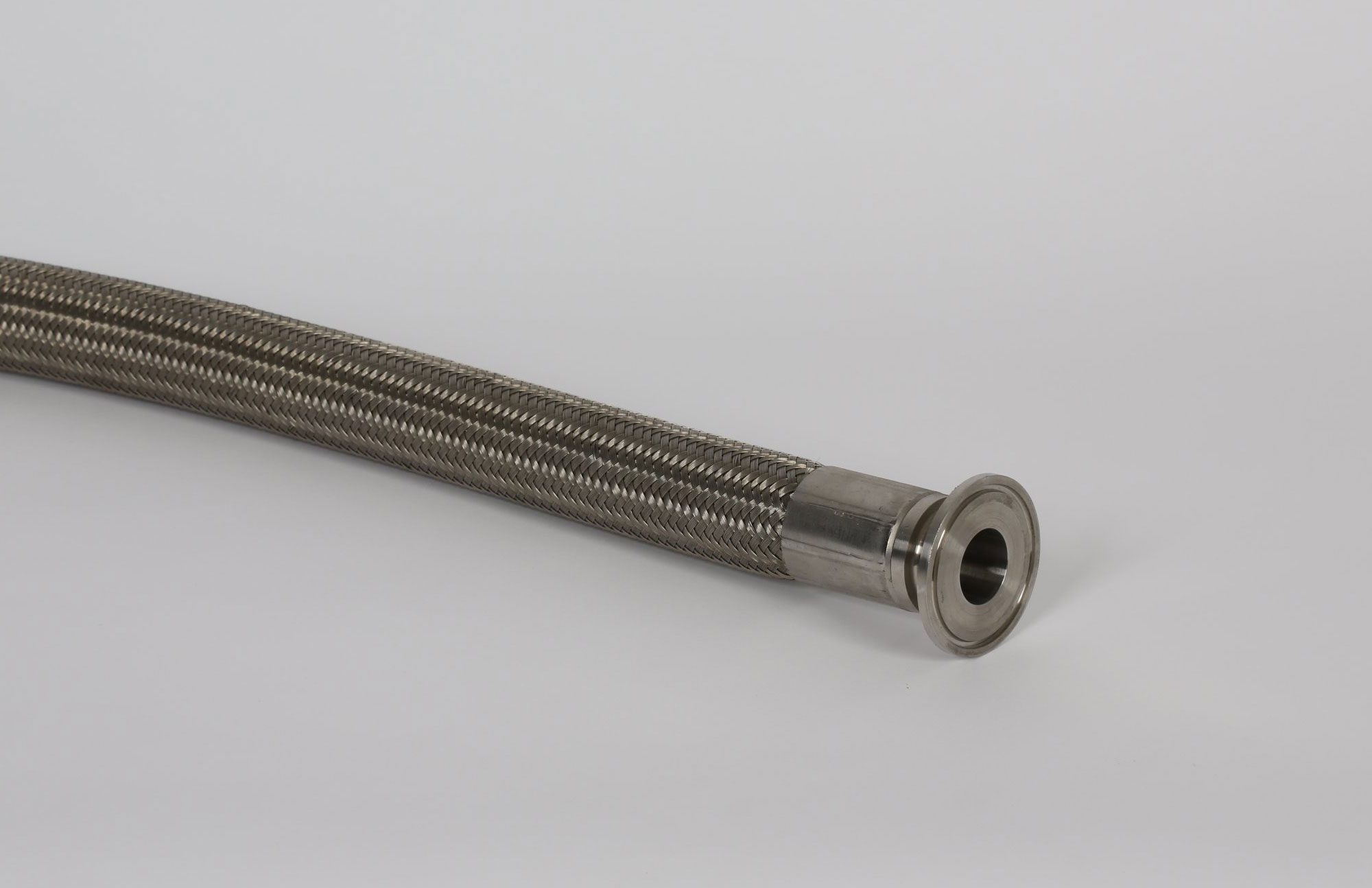

Tube:
• Convoluted Teflon tube with static liner (8500 series) or without (8000 series)
Reinforcement/Cover:
• Stainless steel (304) braid
Temp Range:
• -65°F to +400°F
Applications:
• Provides the utmost in performance, reliability and durability
• Handles rugged conditions, extremes of heat and cold, and corrosive and lethal chemicals
• Teflon is non-aging, has extreme resistance to weather, and its non-stick surface makes cleaning easy
Tube:
• Convoluted Teflon tube with static liner (8500 series) or without (8000 series)
Reinforcement/Cover:
• Stainless steel (304) braid
Temp Range:
• -65°F to +400°F
| Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
| With Static Liner | ||||||
|
8508 |
1/2 | 0.78 | 1550 | 1.5 | .23 | - |
| 8512 | 3/4 | 1.05 | 1250 | 2.5 | .31 | - |
| 8516 | 1 | 1.32 | 1000 | 3.0 | .42 | - |
| 8520 | 1 1/4 | 1.58 | 1000 | 3.5 | .52 | - |
| 8524 | 1 1/2 | 1.83 | 750 | 4.5 | .59 | - |
| 8532 | 2 | 2.38 | 550 | 6.0 | .86 | - |
| Without Static Liner | ||||||
| 8008 | 1/2 | 0.78 | 1550 | 1.5 | .23 | - |
| 8012 | 3/4 | 1.05 | 1250 | 2.5 | .31 | - |
| 8016 | 1 | 1.32 | 1000 | 3.0 | .42 | - |
| 8020 |
1 1/4 |
1.58 | 1000 | 3.5 |
.52 |
- |
| 8024 | 1 1/2 | 1.83 | 750 | 4.5 | .59 | - |
| 8032 | 2 | 2.38 | 550 | 6.0 | .86 | - |
