C.S.A Certified Assemblies

Stainless Steel Metal Hose Assemblies for Natural Gas and Propane Transfer

• Sizes 1/4″ ID through 6″ ID with fittings welded each end
• Single Braided to 2-1/2″ ID, Double-Braided from 3″ through 6″ ID
• CSA labels permanently attached
• Hoses 100% tested per CSA standard for minimum of 1 minute
• Supplied with Carbon Steel or Stainless Steel end fittings

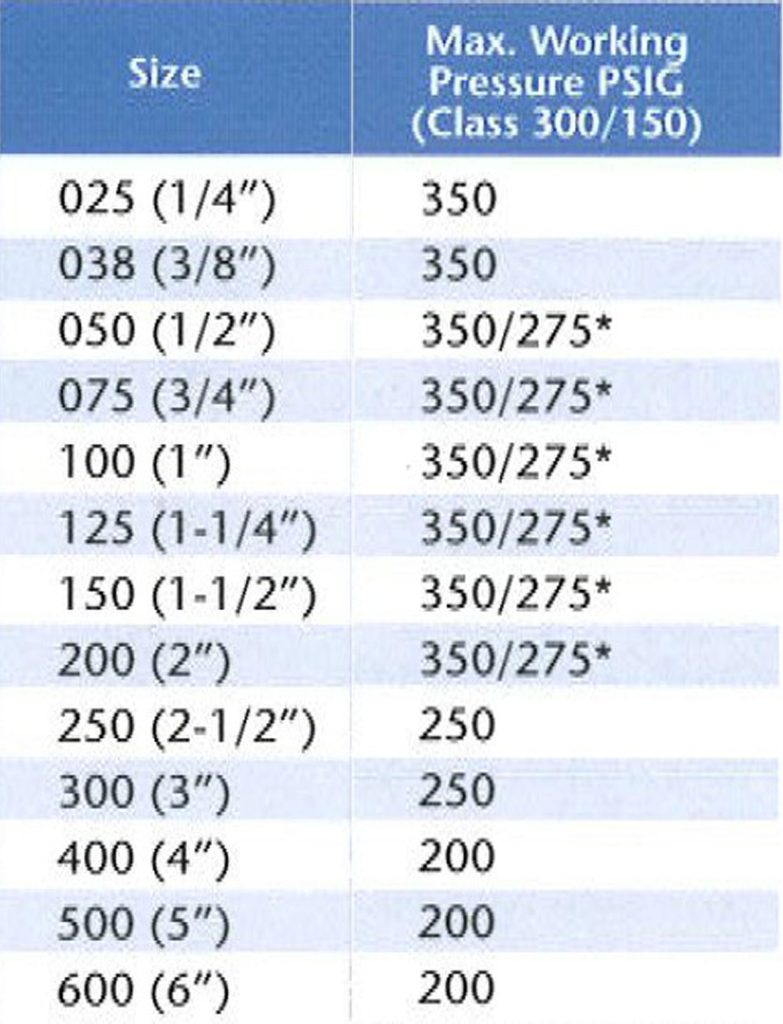

Pressure Range:

• Max WP 350 PSIG (*275 PSIG for Class 150# Flanges) – 1/4″ through 2″ ID
• Max WP 250 PSIG (All end fitting types) – 2-1/2″ and 3″ ID
• Max WP 200 PSIG (All end fitting types) – 4″ and 6″ ID

Required Information:

• Nominal Hose and Fitting Size
• Operating Pressure in PSIG
• End Fitting Type
• Hose Length in Inches

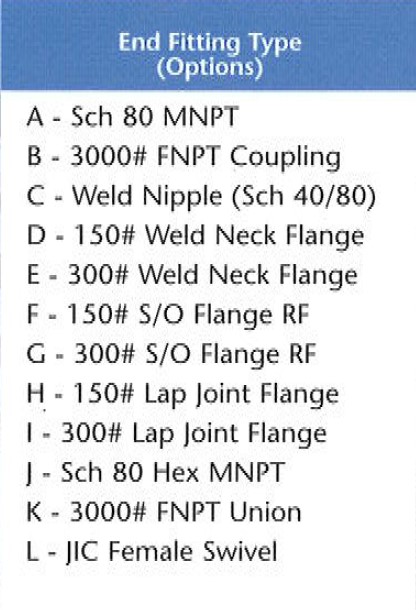

Available Fittings:

Carbon Steel fittings are supplied as material. T304 or T316 fittings are special request.

For more information, please give us a call at (905) 670-0113, or email us at webstore@ontariohose.com for more details.
