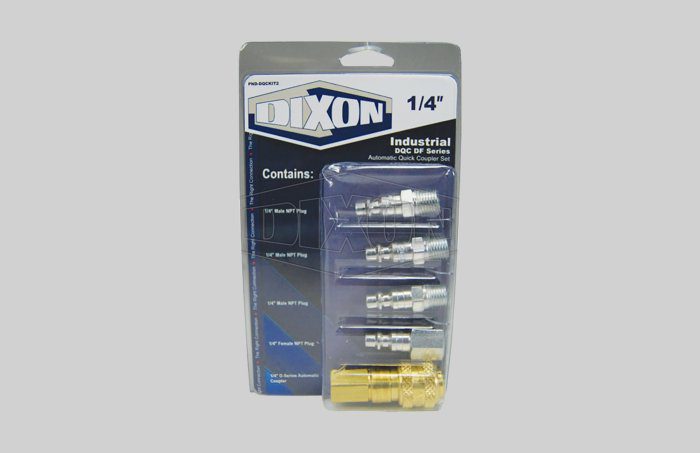

1/4″ INDUSTRIAL DQC DF SERIES AUTOMATIC QUICK COUPLER SET DIXON Existing customers can log in to their account for additional savings Call for price Categories: Air, Air Fittings, Fittings, Hose Fittings Description Specification Description Specifications Coupler- Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst Coupler- Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst Female Plug- Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst Male Plug- Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 11,500 PSI (790 bar) Burst Female/Male Plug- Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 16,000 PSI (1,100 bar) Burst Female/Male Plug- Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 6,500 PSI (448 bar) Burst Construction Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Nitrile (Buna-N) seals are standard Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel tubular valve Specifications Part Number PND-DQCKIT2 Description (Case Qty 6 Required) Includes 2DF2-B, D2F2, D2M2 (3) Material Coupler - Brass,Plug - Steel Thread NPTF Thread Size 1/4" Maximum OD Coupler - 0.99",Female Plug - 0.79",Male Plug - 0.65" (Coupler - 25.1mm,Female Plug - 20.1mm,Male Plug - 16.5mm) Body Size 1/4" Hex Coupler & Female Plug - 11/16",Male Plug - 9/16" Length Coupler - 2.38",Female Plug - 1.66",Male Plug - 1.69" (Coupler - 60.5mm,Female Plug - 42.2mm,Male Plug - 42.9mm) Pressure Rating See Product Details Temperature Range -40°F to +250°F (-40°C to +121°C) Mandatory Pkg/Box Qty 6 Weight lb 0.5916 Related products Dust Caps – Domestic ANSI 150# Flange Gaskets Cam Couplings – Domestic E “Air King” Universal Couplings – Hose Ends
