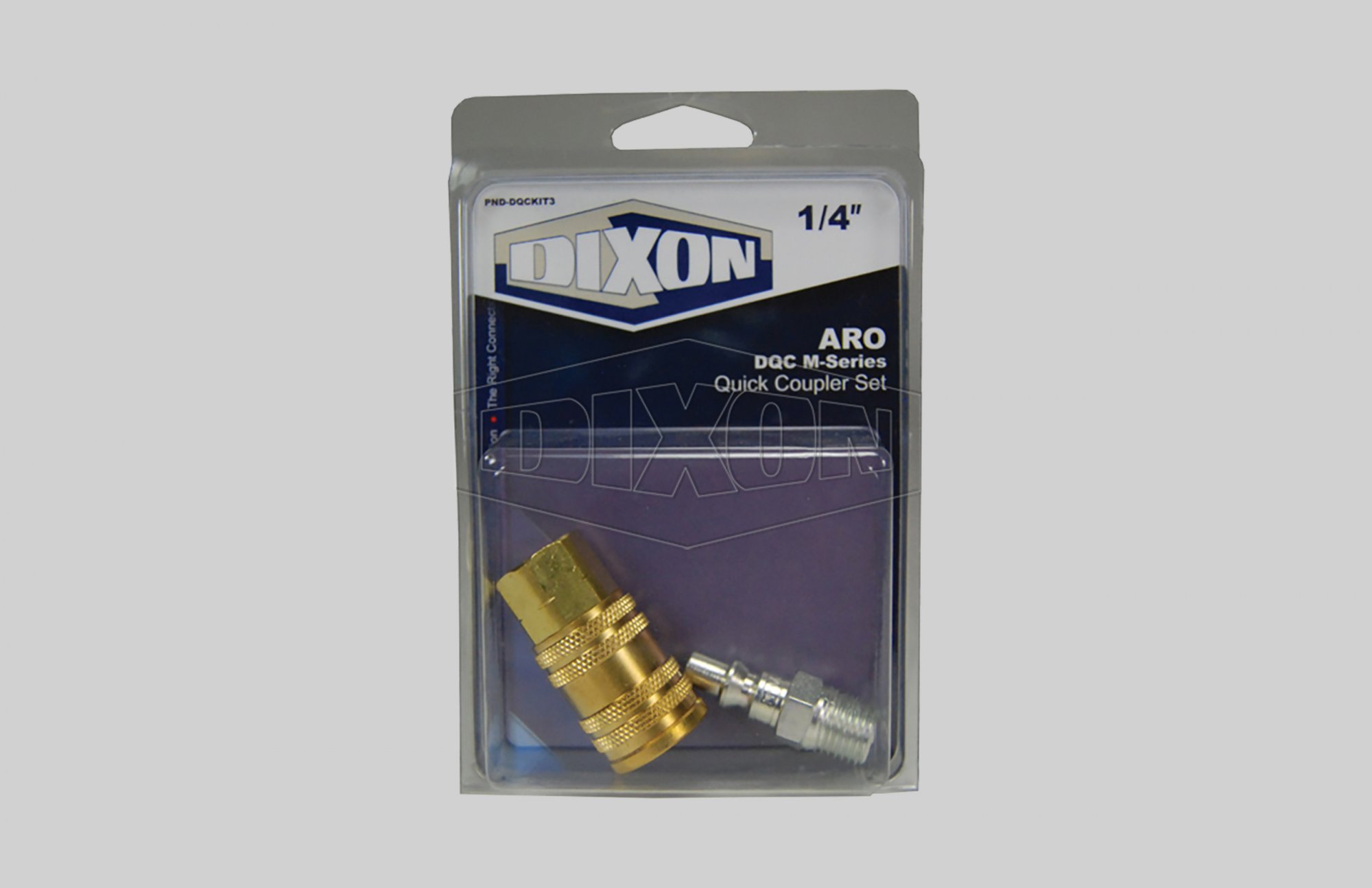

ARO DQC M-Series Quick Coupler Set

Specifications

  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 12,700 PSI (876 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 12,400 PSI (855 bar) Burst
  • Rated pressure for connected Auto Steel Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 2,600 PSI (179 bar) Burst
  • Rated pressure for connected Manual Steel Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 12,400 PSI (855 bar) Burst

Construction

  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , , ,
ARO DQC M-Series Quick Coupler Set

Description

Specifications

  • Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 12,700 PSI (876 bar) Burst
  • Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 12,400 PSI (855 bar) Burst
  • Rated pressure for connected Auto Steel Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 2,600 PSI (179 bar) Burst
  • Rated pressure for connected Manual Steel Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 12,400 PSI (855 bar) Burst

Construction

  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.

Specifications

Part Number PND-DQCKIT3
Description (Case Qty 6 Required)
Includes 2MF2-B, M2M2
Material Brass,
Steel
Thread NPT
Thread Size 1/4"
Maximum OD Coupler - 0.87",
Plug - 0.65"
Body Size Coupler - 1/4"
Hex Coupler - 3/4",
Plug - 9/16"
Length Coupler - 1.97",
Plug - 1.60"
Pressure Rating See Product Details
Temperature Range -40°F to +250°F (-40°C to +121°C)
Mandatory Pkg/Box Qty 6
Weight lb 0.3350
