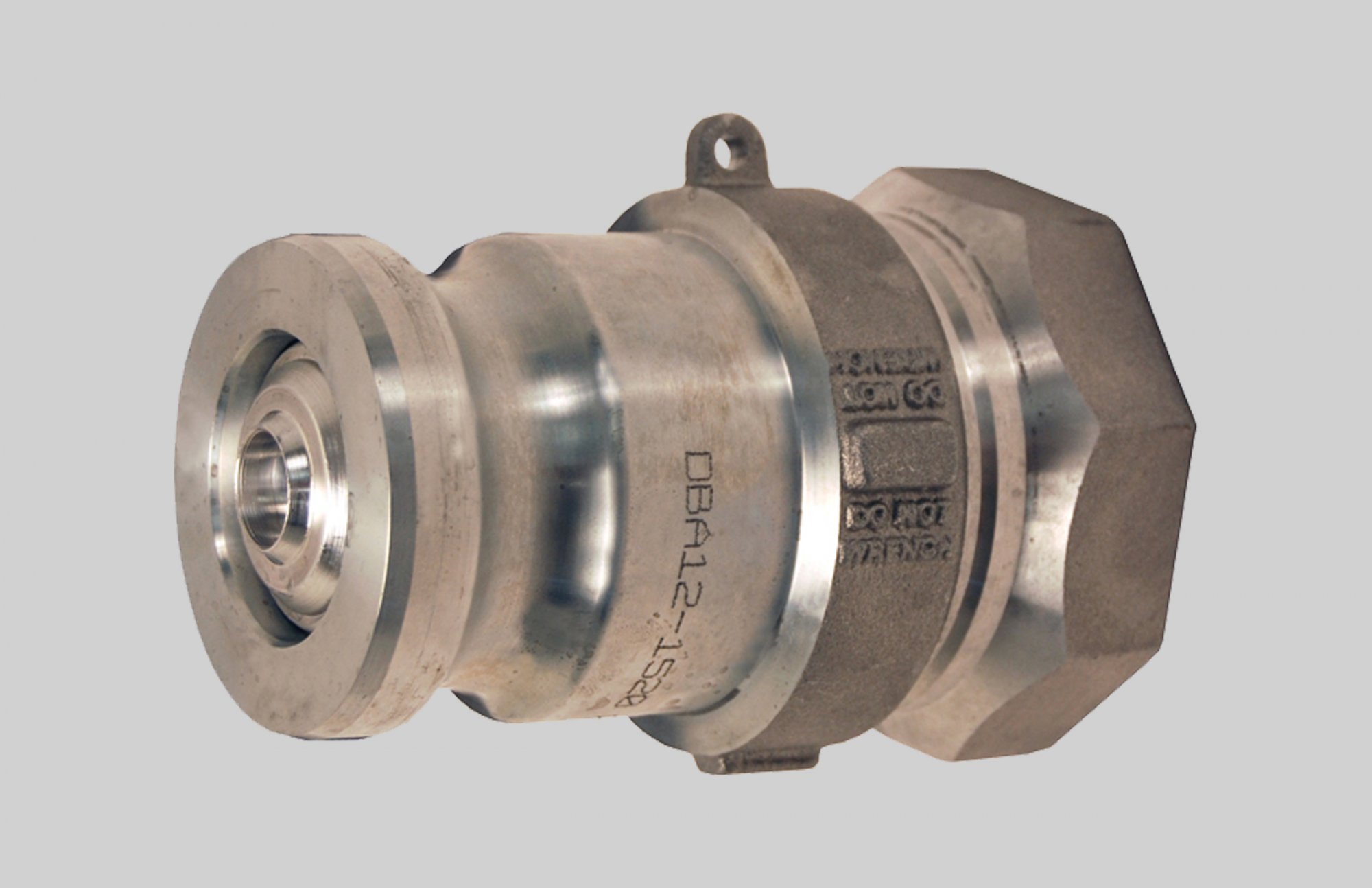

BAYLOC™ DRY DISCONNECT JUMP SIZE ADAPTER X FEMALE NPT

Call for price

Description

Applications

  • Dry disconnects help prevent spillage from normal or accidental disconnects. A spring loaded sealing device is designed to “snap” closed should the valve become disconnected with the poppet open, significantly limiting liquid loss.
  • For use in transfer of hazardous fluids

Use

  • Use with DBC or D2C style couplers
  • Use with standard cam and groove dust caps sized one size larger than the dry disconnect size
  • Use Cam & Groove Dust Cap Size: 2″

Features

  • Two-piece adapter design for easy rebuilding of adapters

Construction

  • Brass Stem

Specifications

Part Number DBA11**
Description Cam & Groove Style
Material Zinc/Aluminum
Seal Buna
Female Thread NPT
Female Thread Size 2"
Adapter Size 1-1/2"
Maximum Operating Pressure 150 PSI at 70°F(21°C)
Weight Lb 2.1800
