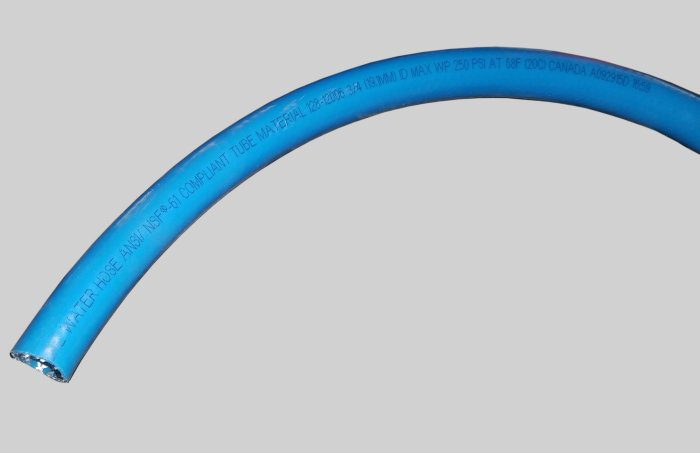

BLUE PURE WATER HOSE

POTABLE WATER

Call for price
Categories: ,

Description

PVC Potable Water By-Pass Hose is designed as a temporary conduit for water supply during construction, maintenance and repair of pipe to 150°F and 250 psi, Series 128.

Markets:

  • Construction
  • Food & Beverage
  • General Industrial

Features/Benefits:

  • Tube: Clear/blue tint PVC for sanitary transfer to 150°F
  • Reinforcement: Multiple textile piles for strength and durability
  • Cover: Blue PVC for abrasion and weathering resistance

Application:

  • Potable water
  • Bottled water plants
  • Municipal water supply temporary by-pass connections
  • Water analysis collection

Industry Standards:

  • ANSI/NSF 61 compliant tube compound for a maximum surface area to volume ratio of 200 square inches per liter
  • FDA approved

Specifications

Part # Description
NSF61BL075 3/4" Blue Pure Water Hose NSF61 250 PSI @ 68°F/20°C , Blue PVC Cover
NSF61BL100 1" Blue Pure Water Hose NSF61 250 PSI @ 68°F/20°C , Blue PVC Cover
NSF61BL150 1-1/2" Blue Pure Water Hose NSF61 250 PSI @ 68°F/20°C , Blue PVC Cover
NSF61BL200 2" Blue Pure Water Hose NSF61 250 PSI @ 68°F/20°C , Blue PVC Cover
NSF61PW075 3/4" Pure Water Hose

Maximum Operating Pressure:
75 to 250 PSI, 0.5 to 1.7 MPa

Application:
Water

Weight:
0.03 to 0.13 kg/m, 0.21 to 0.97 lb/ft, 0.21 to 0.97 lb, 0.10 to 0.44 kg

Hose I.D. (Size):
-10 to -32

Nominal Hose Inside Diameter:
17.5 to 50mm

Tube Material:
Clear/blue tint PVC

Hose Reinforcement Material:
Two textile plies

Cover Material:
Blue PVC

Minimum Operating Temperature:
-13°F, -25°C

Maximum Operating Temperature:
150°F, 65°C

Hose Inside Diameter:
5/8" to 2", 15.9 to 50.8mm

Hose Outside Diameter:
0.931" to 2.490", 23.6 to 63.3mm

Length per package:
100' to 300'
