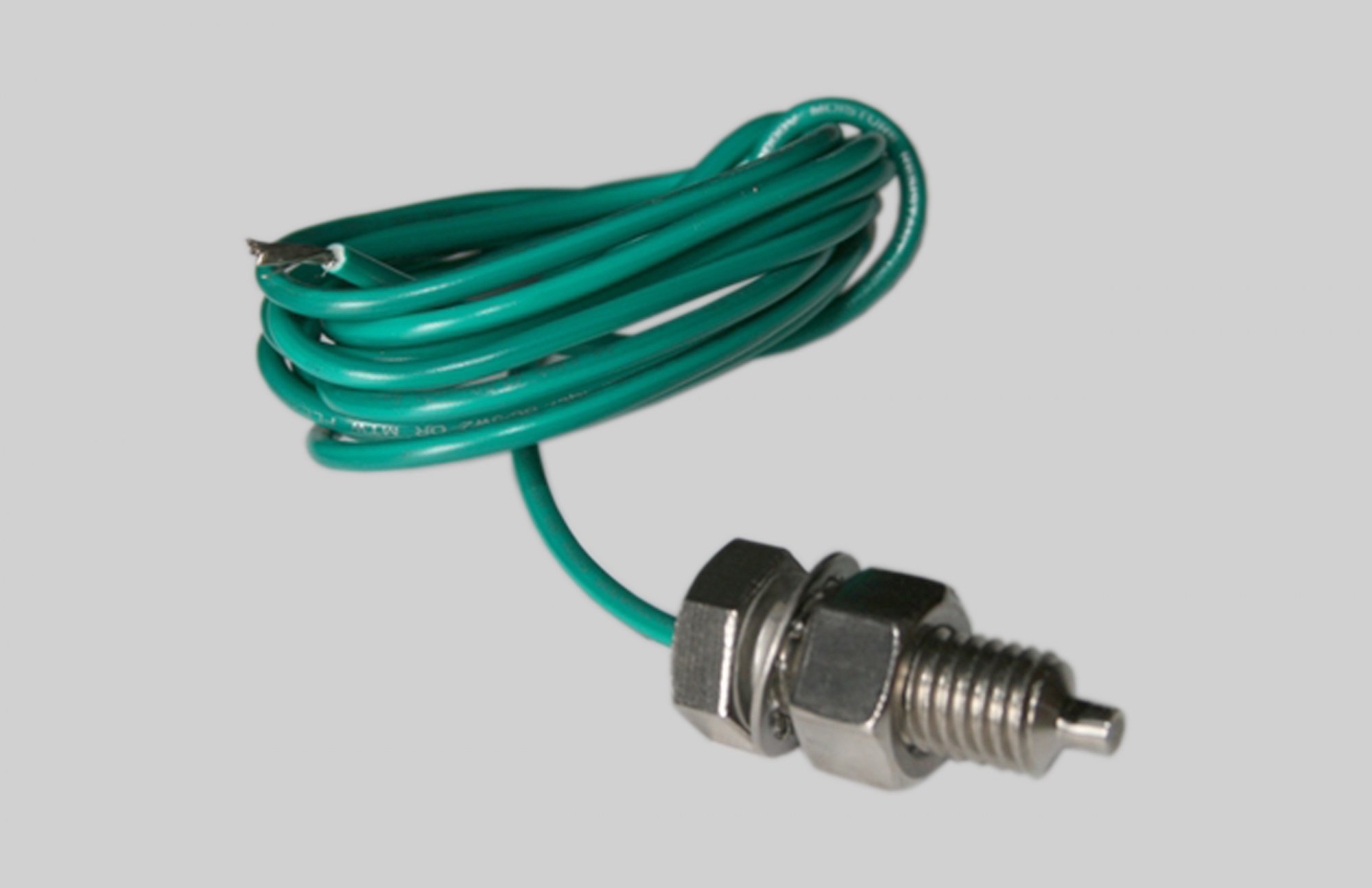

Ground Bolt

For static grounding connected through a Scully Overfill Prevention Control System

Ground Bolt is mounted directly to the vehicle frame and wired to the existing truck-mounted Scully Socket(s)
Only one connection is needed for overfill prevention and ground verification when Using ST-47 Groundhog and Scully Overfill Prevention Control System
Contains “smart” electronic circuitry that offers an intelligent return signal to the Groundhog^™ Control Monitor

Categories Tank Truck Equipment, Liquid - Petroleum, Petroleum Tanks Truck Parts Tags bolt, ground, new, scully

Description
Specification

Description

For static grounding connected through a Scully Overfill Prevention Control System

Ground Bolt is mounted directly to the vehicle frame and wired to the existing truck-mounted Scully Socket(s)
Only one connection is needed for overfill prevention and ground verification when Using ST-47 Groundhog and Scully Overfill Prevention Control System
Contains “smart” electronic circuitry that offers an intelligent return signal to the Groundhog^™ Control Monitor

Specifications

Material:	stainless steel; stainless steel nut and lock-washer
Thread Size:	1⁄2–13 UNC
Pigtail Length:	72″ long
Installation Torque:	125 inch pounds maximum
