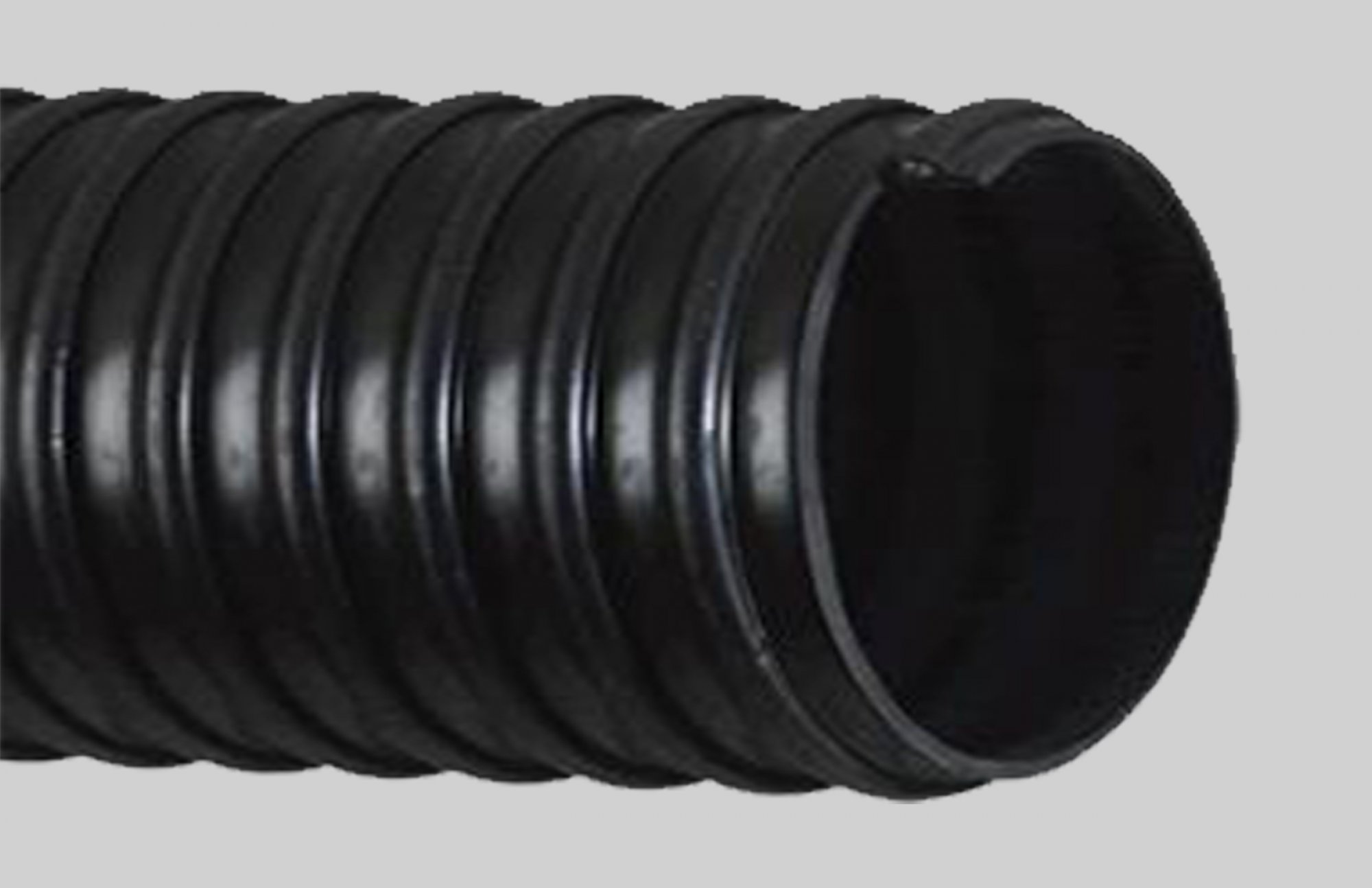

Kanaboom Lite

KANABOOM LITE

MATERIAL HANDLING HOSE

General construction use, such as rock, gravel, sand and crushed concrete. Industrial VAC equipment, roof vacuuming, dry fertilizer and petcoke.

Call for price
Categories: , ,

Description

Temp. Range:

-40°F to 140°F

Application:

General construction use, such as rock, gravel, sand and crushed concrete. Industrial VAC equipment, roof vacuuming, dry fertilizer and petcoke.

Construction:

Flexible abrasion polyurethane liner, rigid PVC helix, smooth bore, PVC corrugated O.D. with static dissipating materials.

Features:

Lightweight and flexible in sub-zero temperatures. Abrasive resistant polyurethane tube provides increased life time, prevents material build up and provides quiet operation. Dissipate material in construction dissipates static charges. External helix provides for easy drag.

Accessories:

Banding coil or Powerlock Clamp

Note:

Not a food-grade hose.

Specifications

Inside* Dia. (Inches) Outside Dia (Inches) Pitch (Inches) Minimum Bend Radius (72°F, Inches) Working Pressure (72°F, PSI) Vacuum Rating (72°F, In Hg) Weight (Lbs/Ft) Standard Length
1 1/2 1.81 0.35 2.0 35 29.0 0.39 100
2 2.36 0.39 2.5 27 29.0 0.55 100
2 1/2 2.93 0.53 4.5 27 29.8 0.75 100
3 3.50 0.59 5.5 25 29.0 1.10 100
4 4.55 0.65 6.5 20 28.0 1.60 50, 100
5 5.73 0.83 11.0 20 28.0 2.75 50, 100
6 6.73 0.83 11.0 20 28.0 3.80 50, 100
8 9.04 0.91 16.0 20 28.0 5.38 25



Additional information

Inner Diameter

4", 6"
