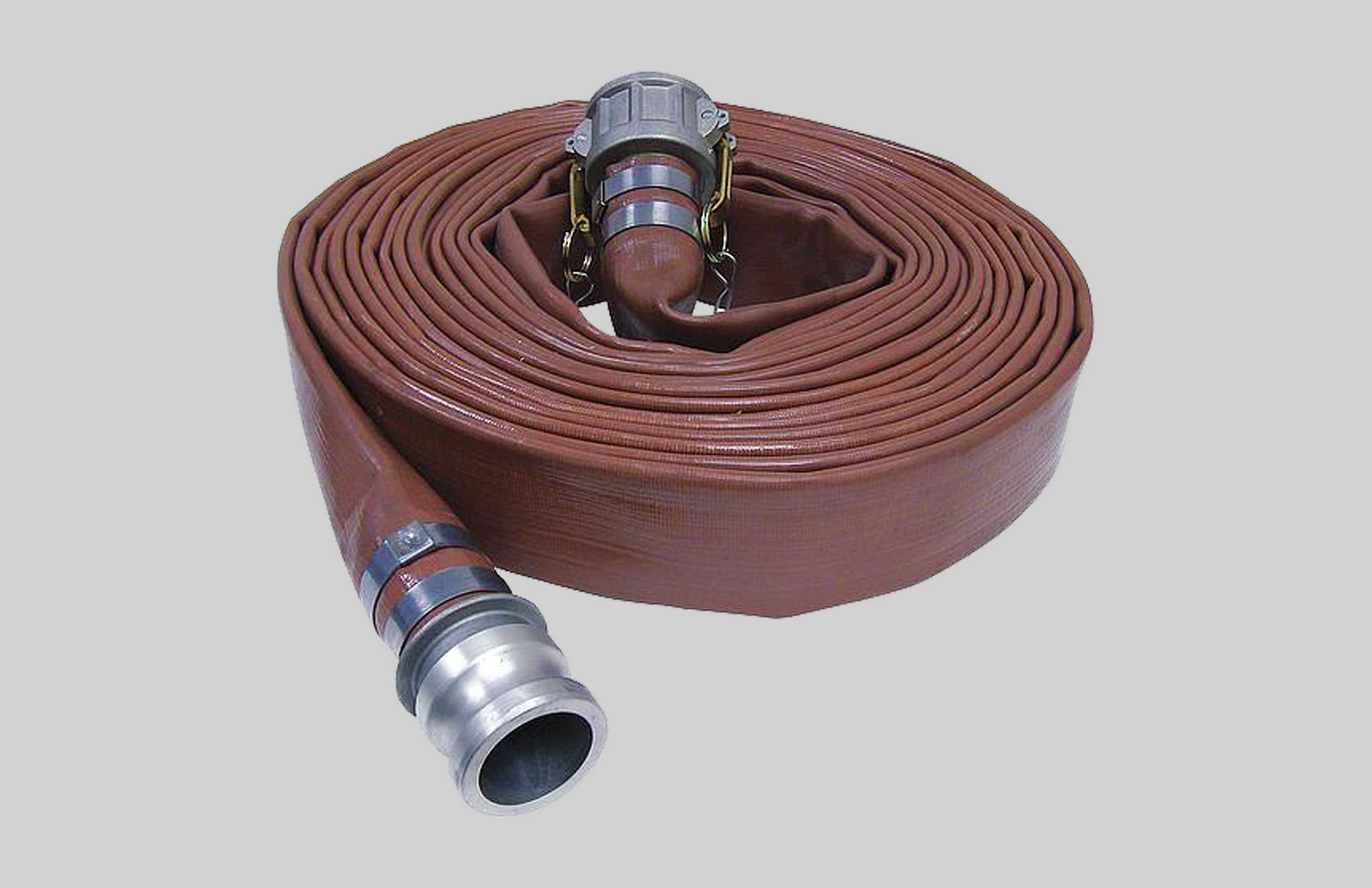

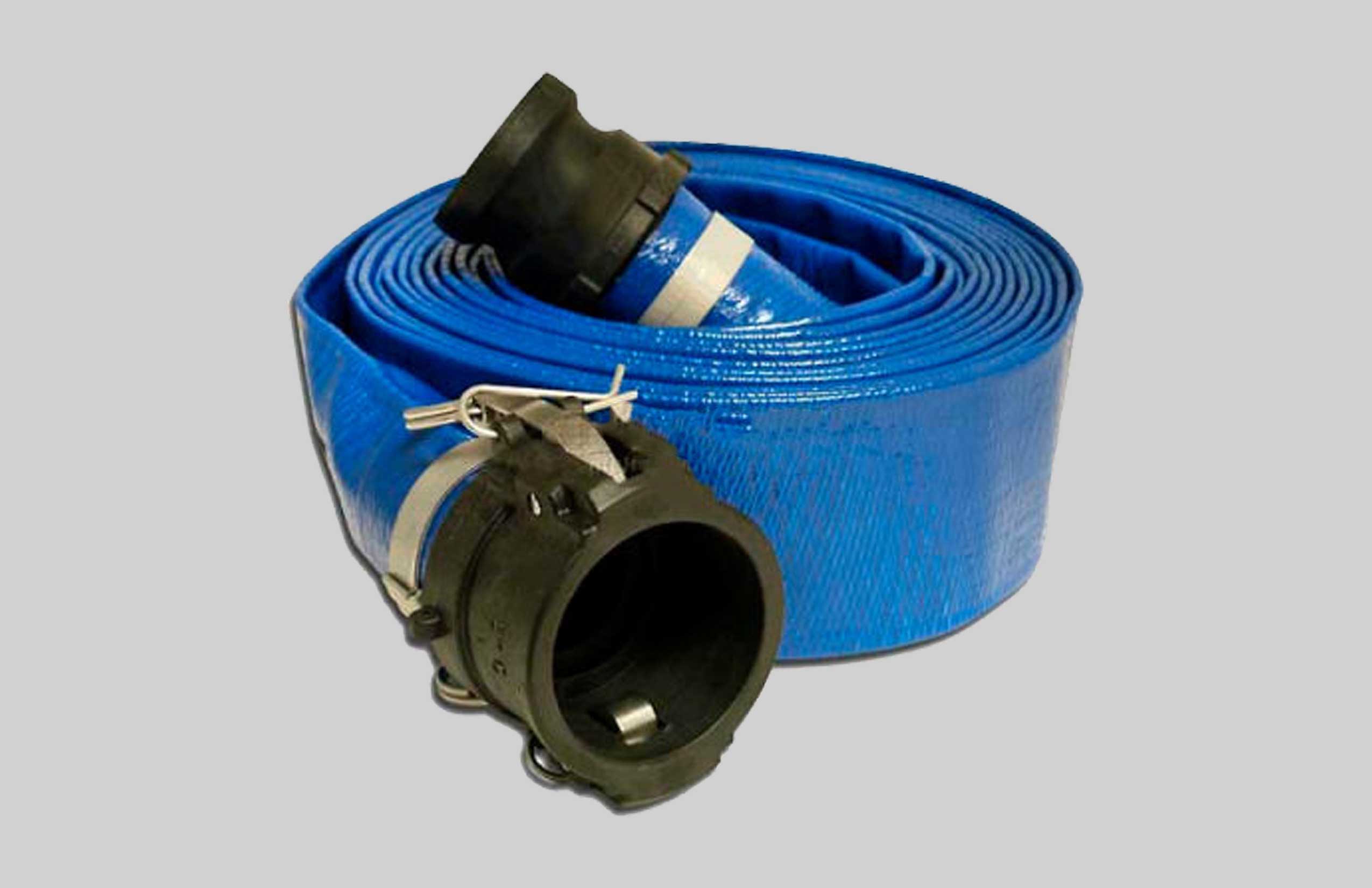

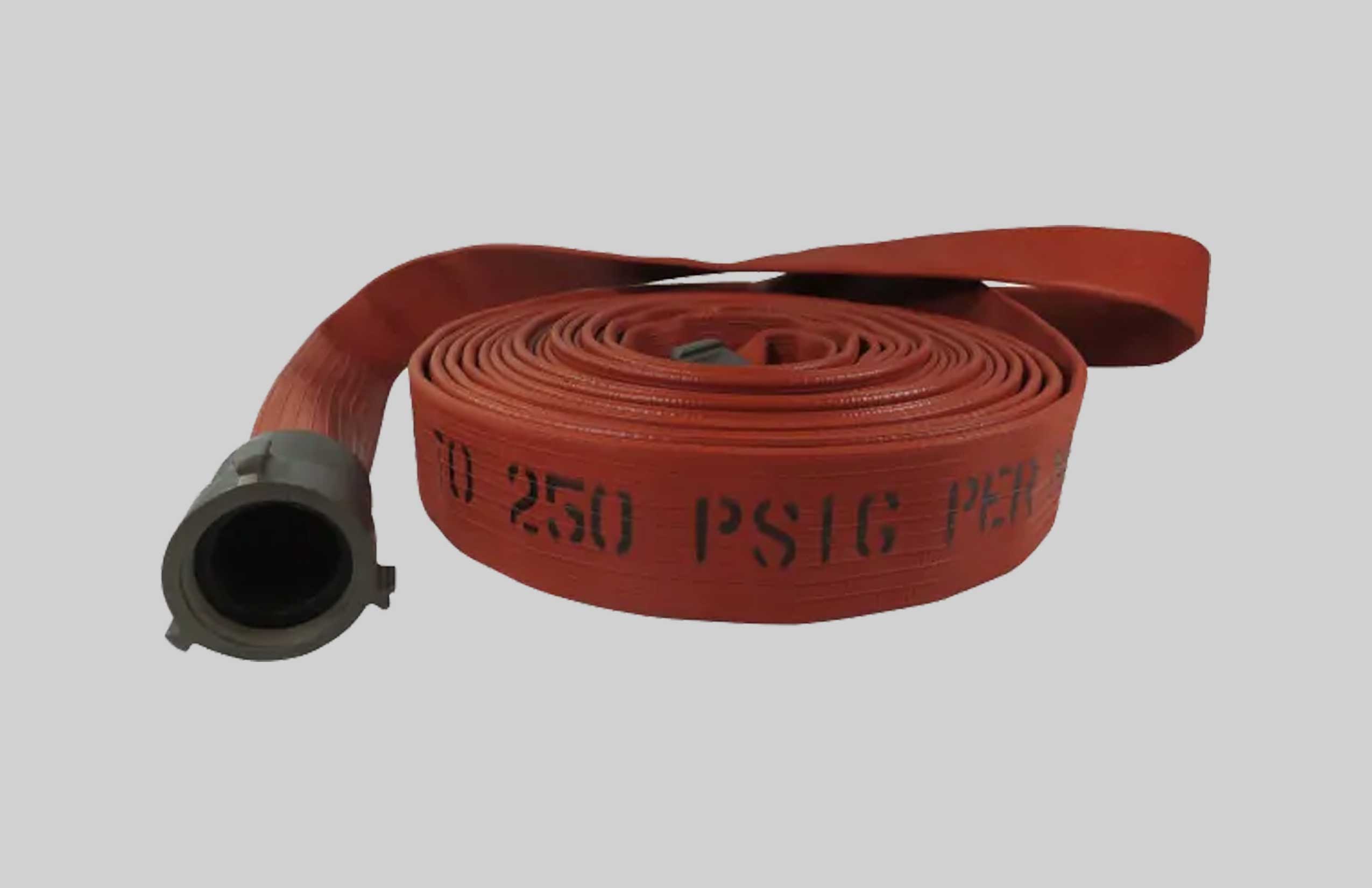

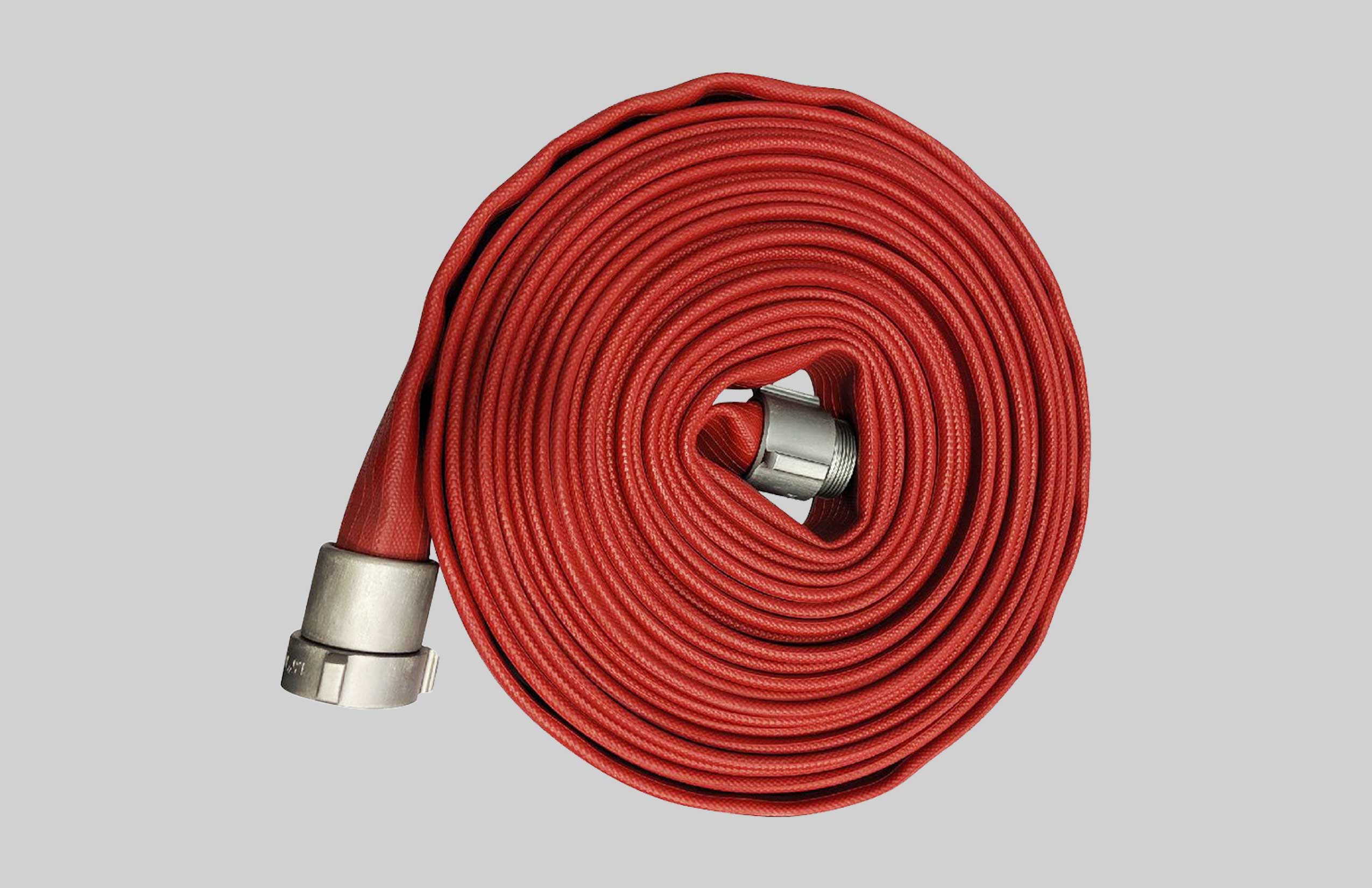

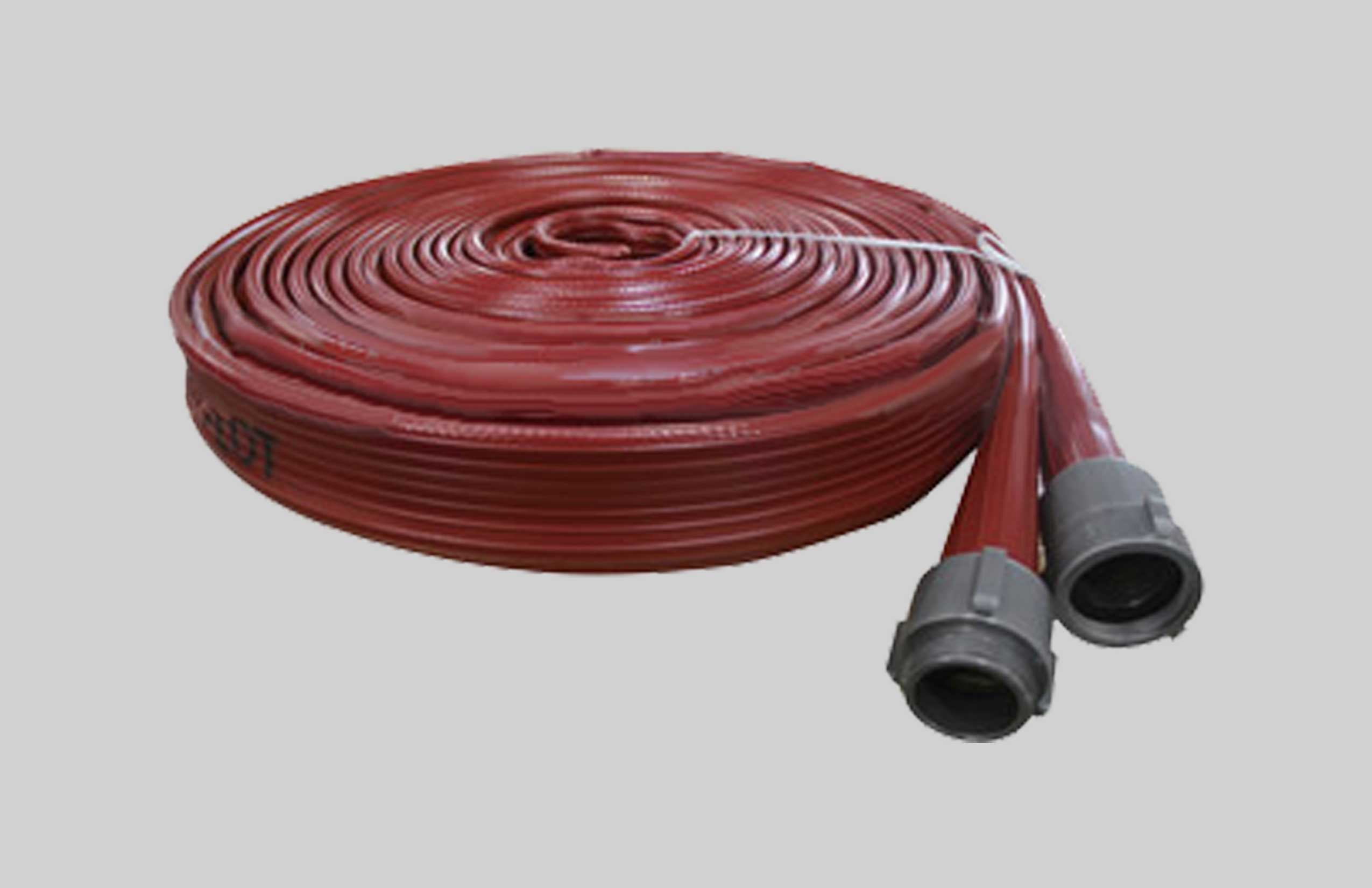

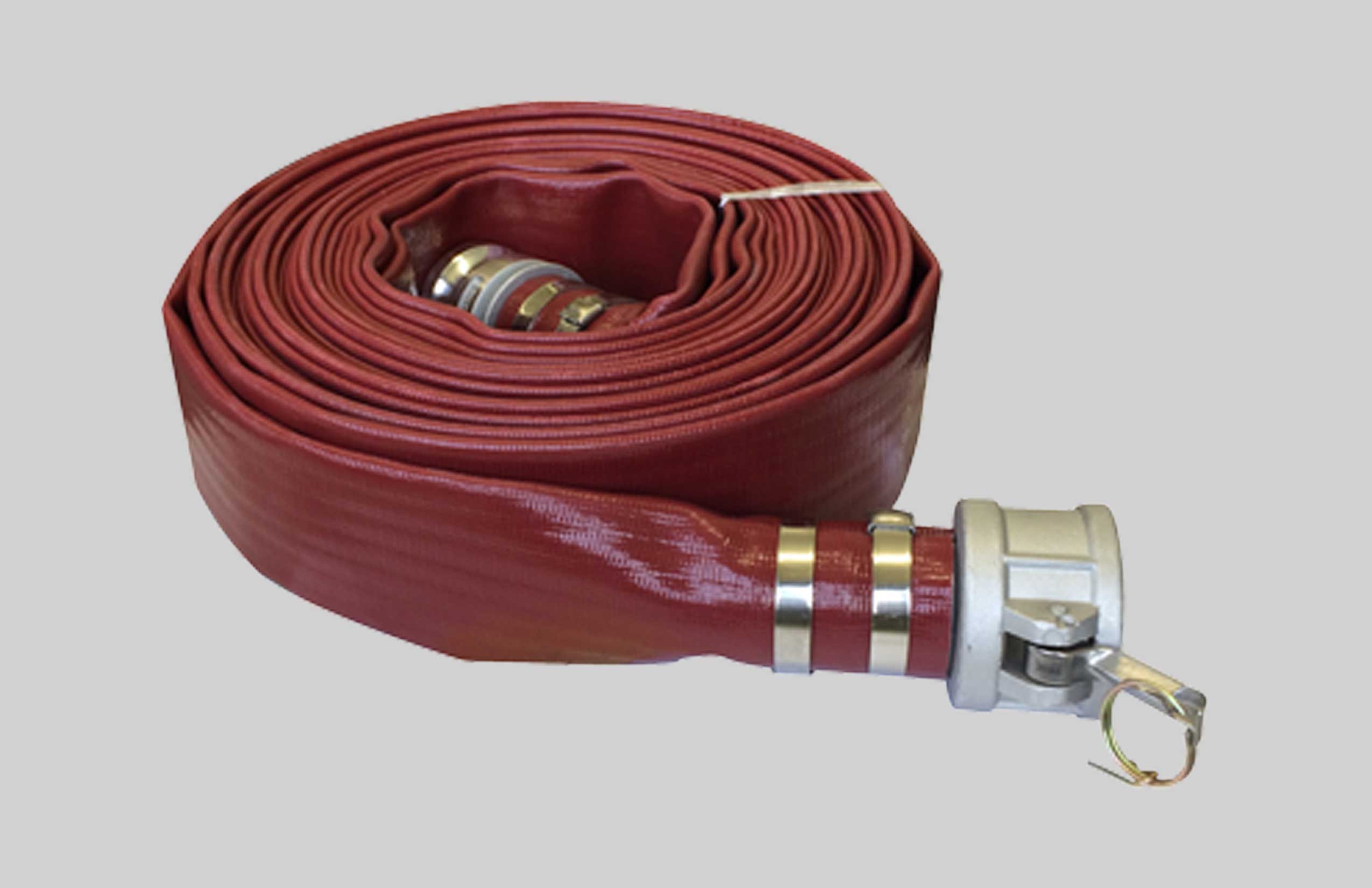

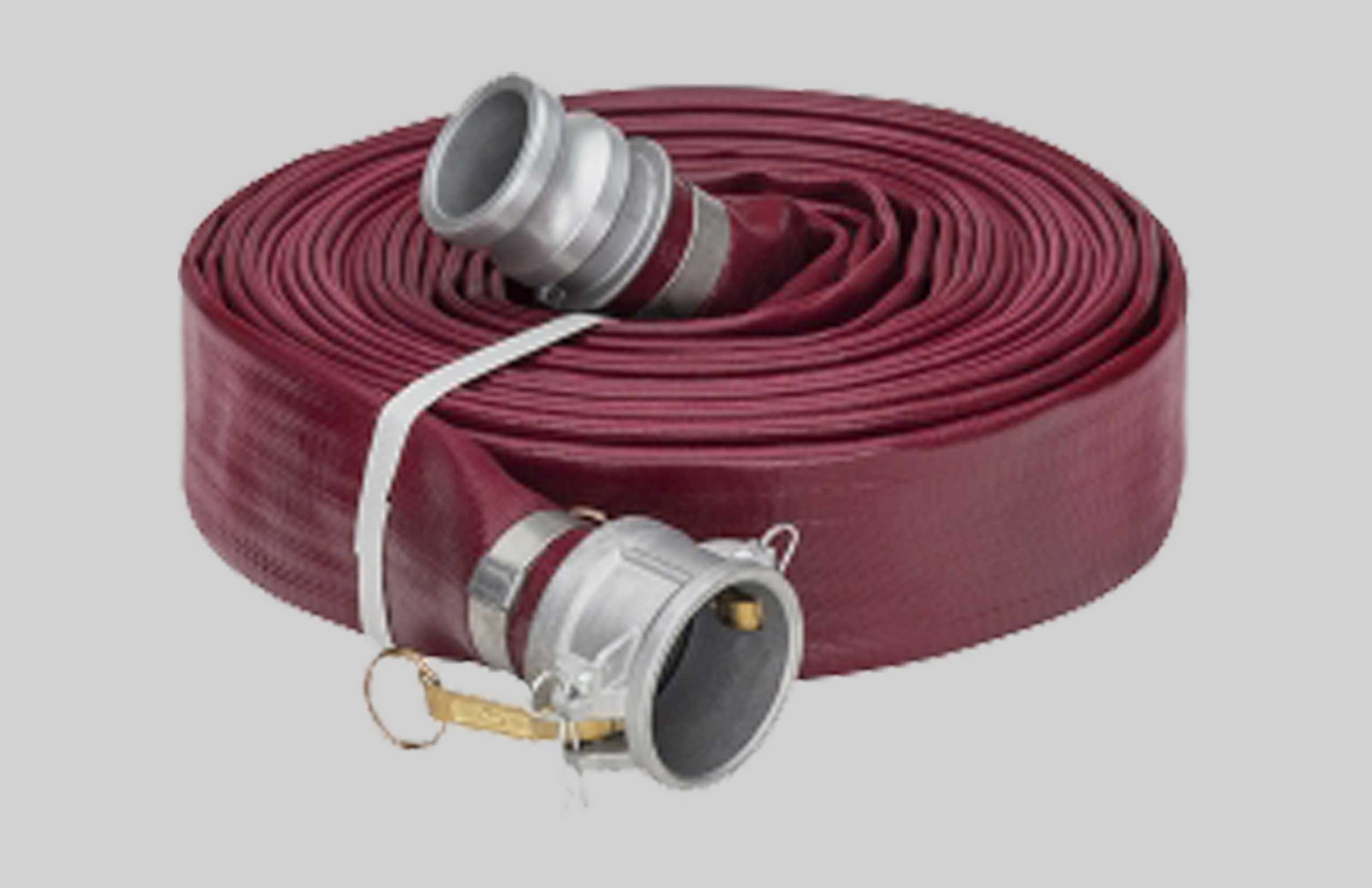

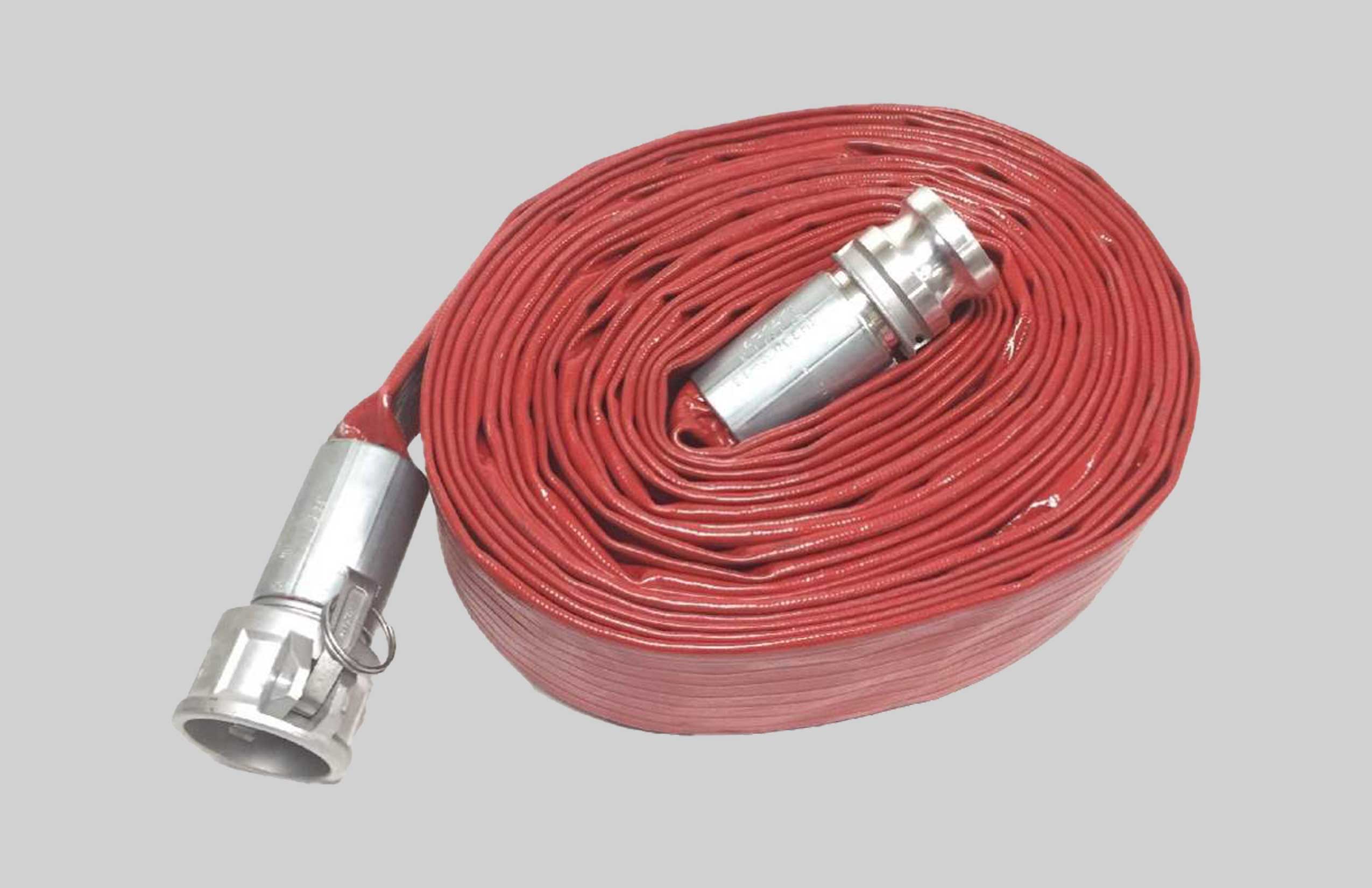

LAYFLAT ASSEMBLIES

Call for price

Description

Application: Designed for municipal firefighting, but widely used by petrochemical plants, navies, mines and other industrial organizations.
Construction: 100% high tenacity synthetic yarn, circular woven and completely protected by synthetic rubber, extruded through the weave to
form a single homogenous construction, without the use of glue or adhesives of any type.
Lining Properties:
Ultimate Tensile Strength: 1750 PSI (12,000 kPa)
Ultimate Elongation: 450%

Abrasion Resistance: Suitable for extreme conditions where abrasion is the most serious concern. Everfort® has excellent abrasion resistance
when tested according to FM2111 and UL19 abrasion tests.
Cold Resistance: Suitable for use in temperatures down to -22°F (-30°C). Can be stored in temperatures as low as -36°F (-38°C).
Ozone Resistance: Shows no visible signs of cracking of the lining or cover when tested in accordance with ASTM D0518 Procedure B,
100pphm/104°F (40°C)
Chemical Resistance: Can withstand exposure to seawater as well as exposure to most chemical substances, hydrocarbons, oils, alkalis, acids
and greases.
Heat Resistance: Capable of withstanding a surface temperature of 1112°F (600°C) for a minimum of two minutes, when subjected to a static
pressure of 100 psi (700kPa), without rupture or damage to the synthetic reinforcement.
Lengths: 25’, 50’, 75’ and 100’, as well as 150’ lengths for selected diameters. Please inquire for availability

Specifications



Part # SJEF250X600CSAMFAL
