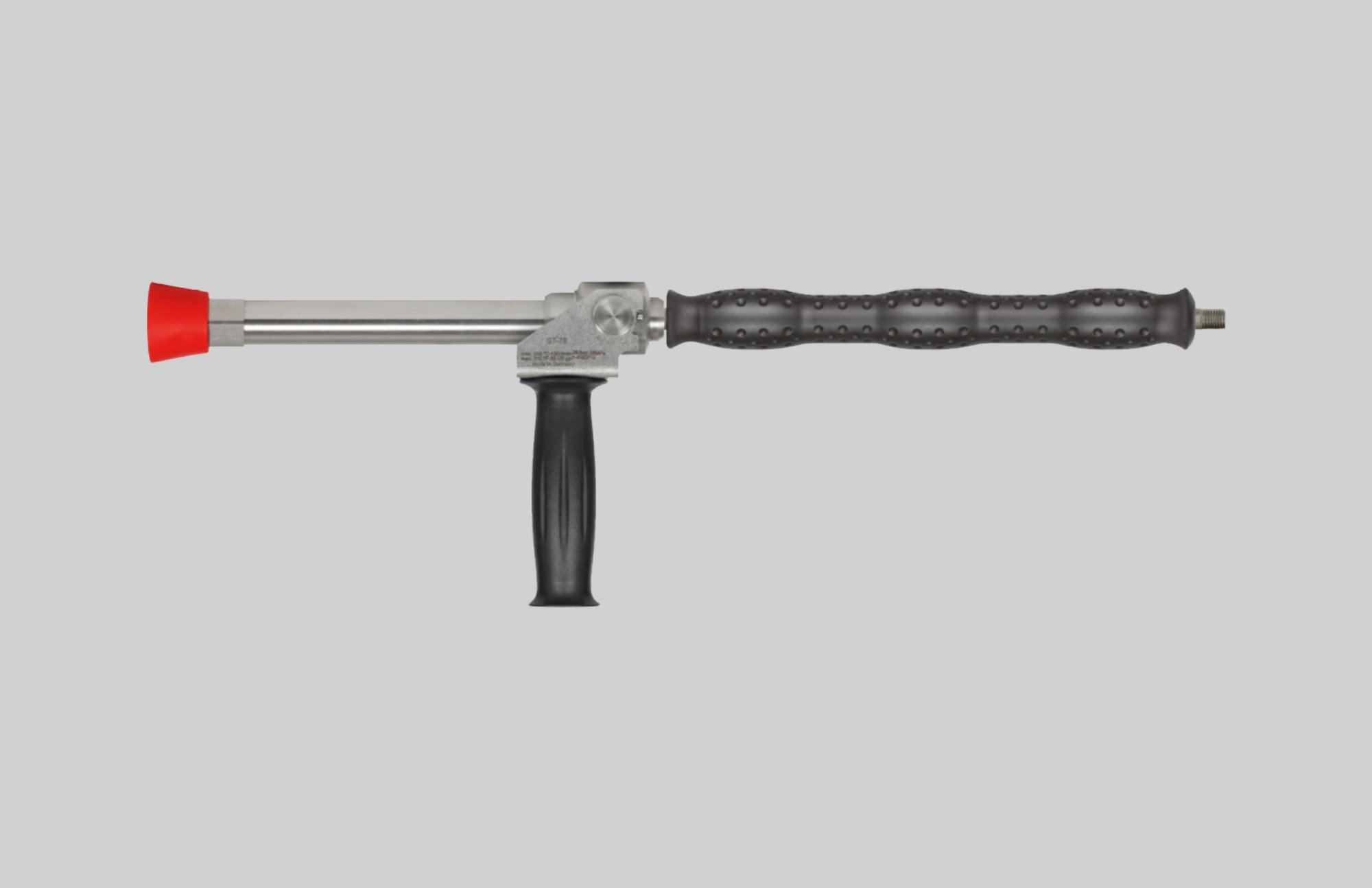

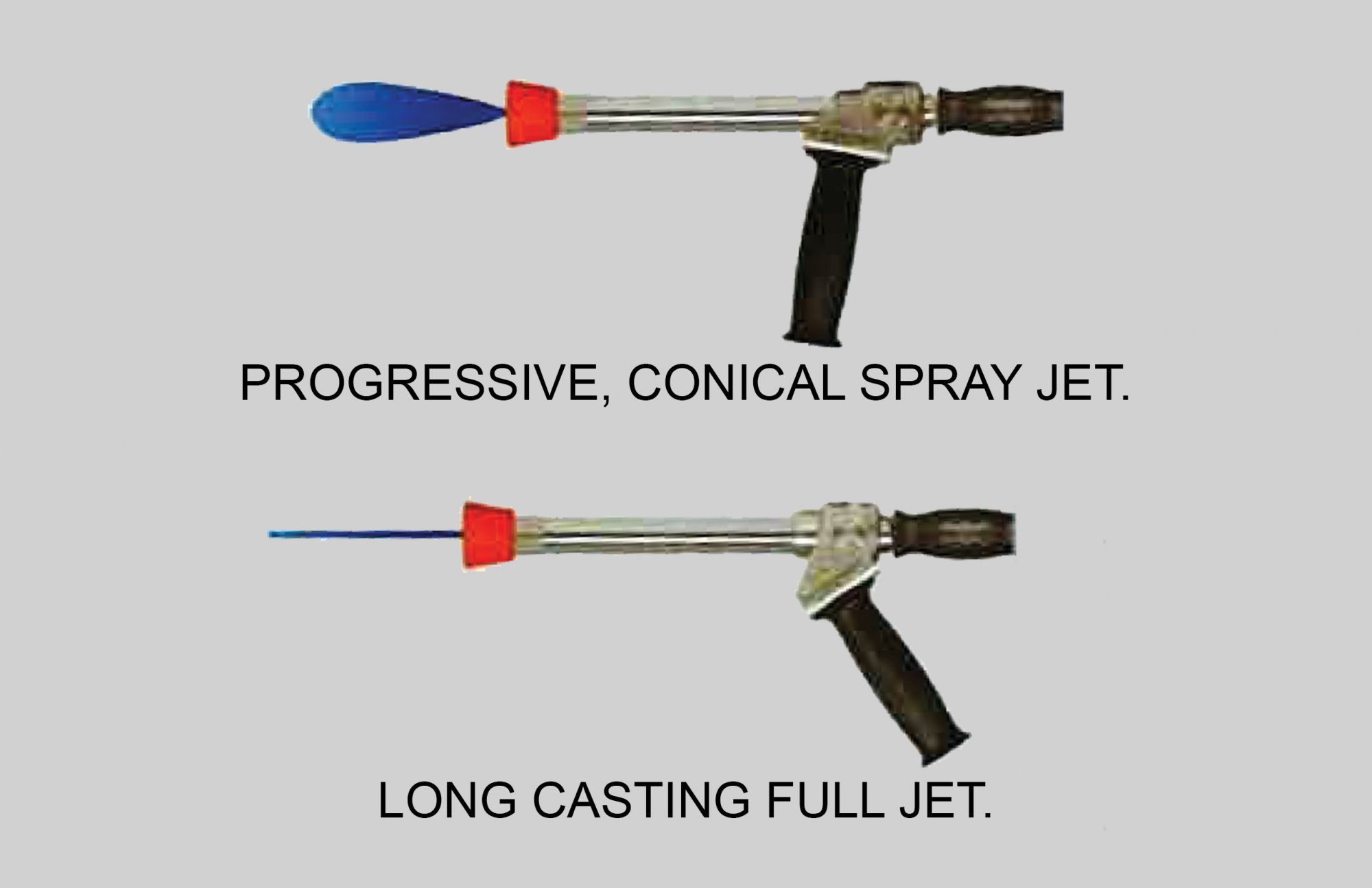

The side handle grip makes an effortless adjustment of the water jet during operation possible. A long casting point jet or a progressive cone like spray jet can be set.
The side handle grip makes an effortless adjustment of the water jet during operation possible. A long casting point jet or a progressive cone like spray jet can be set.
|
Part # |
Pressure PSI |
Temperature | Length | Inlet | Weight (lb.) |
|
200078520 |
2200 |
300°F | 38" | 1/2" FPT | 2.82 |
Stainless Steel Longcast Nozzles
|
Part # |
Description |
| 200078412 | Nozzle ST-78 longcast 1.2mm |
|
200078415 |
Nozzle ST-78 longcast 1.5mm |
|
200078420 |
Nozzle ST-78 longcast 2.0mm |
|
200078423 |
Nozzle ST-78 longcast 2.3mm |
|
200078425 |
Nozzle ST-78 longcast 2.5mm |
|
200078430 |
Nozzle ST-78 longcast 3.0mm |
|
200078435 |
Nozzle ST-78 longcast 3.5mm |
|
200078440 |
Nozzle ST-78 longcast 4.0mm |
|
200078445 |
Nozzle ST-78 longcast 4.5mm |
|
200078450 |
Nozzle ST-78 longcast 5.0mm |
|
200078470 |
Nozzle ST-78 longcast 7.0mm |
Lance Only: #200078500, 30"

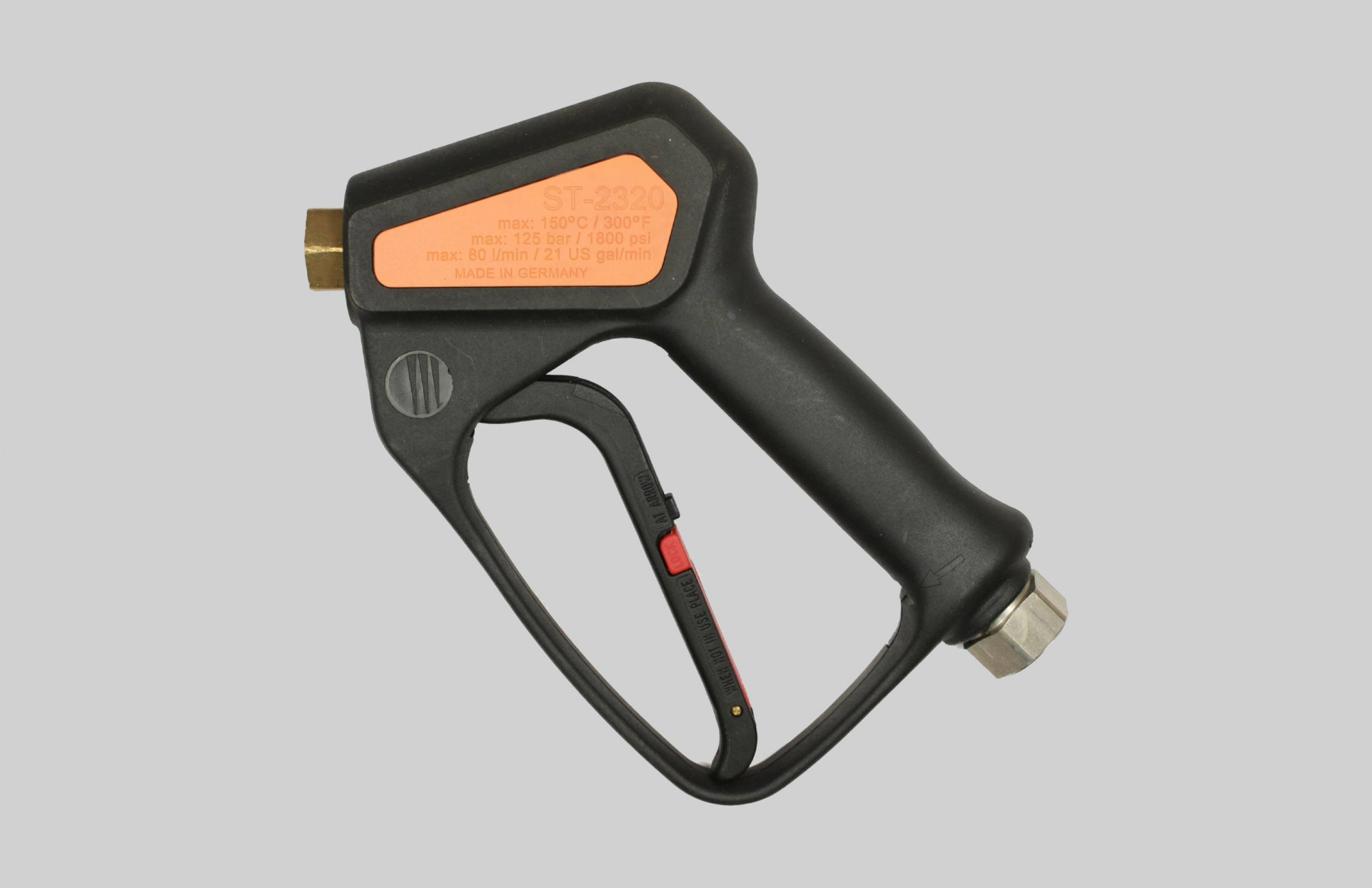

Pictured Gun Specs:
The Suttner ST2320 guns are designed to be used in high flow, high pressure applications, whilst still maintaining their modest size. Gun Cases are made from impact resistant plastic, with a safety lock trigger and internal components made from corrosion resistant materials.
Max Press: 150 Bar
Max Flow: 80 Lpm
Max Temp: 150ºC
Inlet: 1/2″ F
Outlet: 1/4″ F
