Call for price

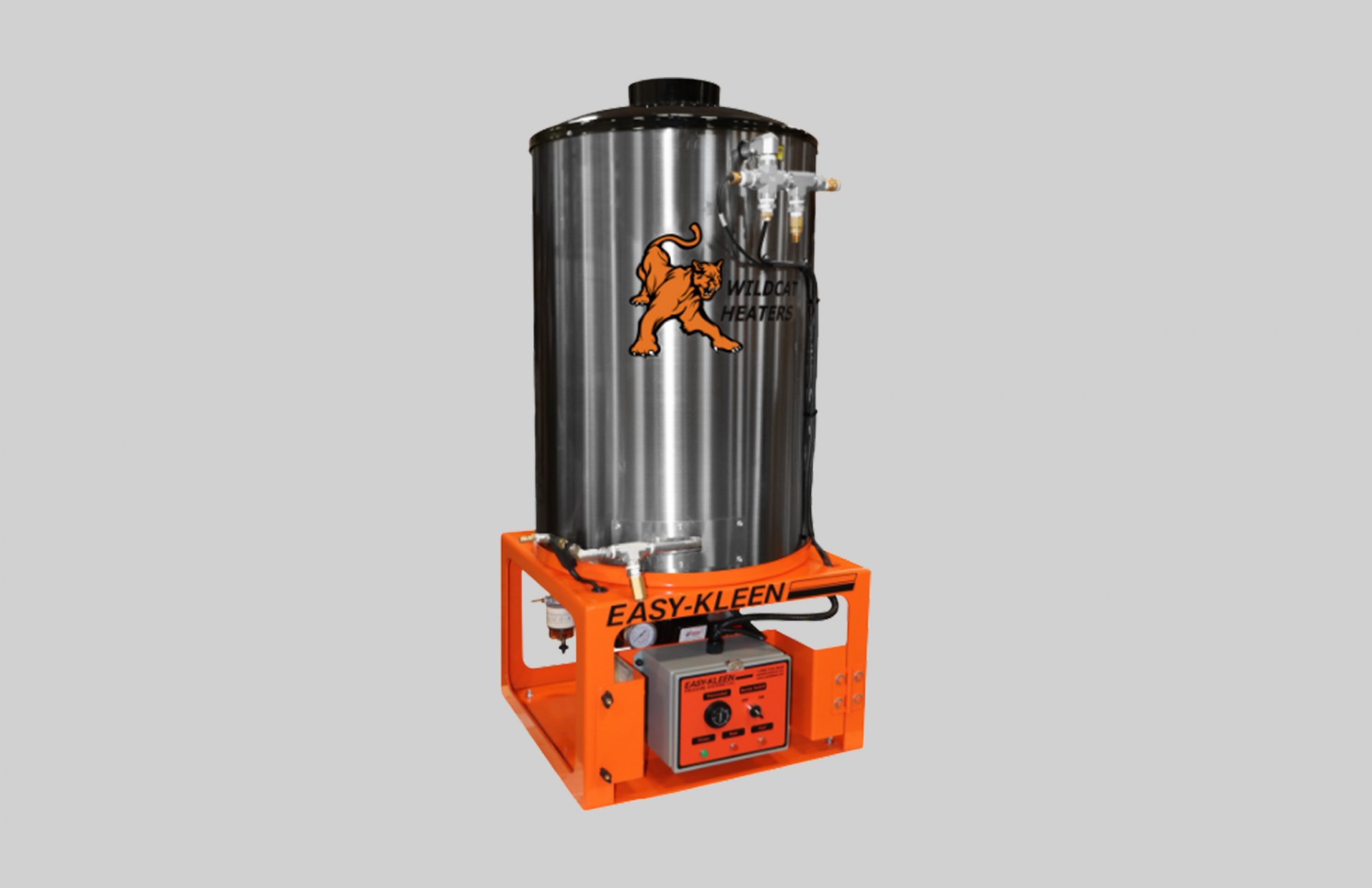

Heating Coil
Elliptically wound cold process of stretched reduced fully body normalized ASTM AS3/APIPSL schedule 80 or optional 160 pipe is structurally braced to minimize pipe wear and vibration. The coil is sealed with a ceramic blanket and enclosed in a stainless steel housing for heating efficiency. These coils have been specially designed to be paired with the burners for maximum heating and fuel efficiency. The coils are securely mounted to the frames to reduce vibration and enhance ease of maintenance. Wet/dry steam option available. {Optional 11,500 PSI Coils)

Optional CRN/ASME 30.1 Pressure Vessel Coded CoilsBurners (Wayne)
Quality North American made oil fired burners with adjustable thermostats are used due to their efficiency and durability. Safety features include: flow switch, pressure switch, rupture disc, high limit and adjustable thermostat.

Control Panel
Nema 4 water tight control panels are utilized.

Industrial grade frames are fully welded and powder coated for longevity. Install ready.

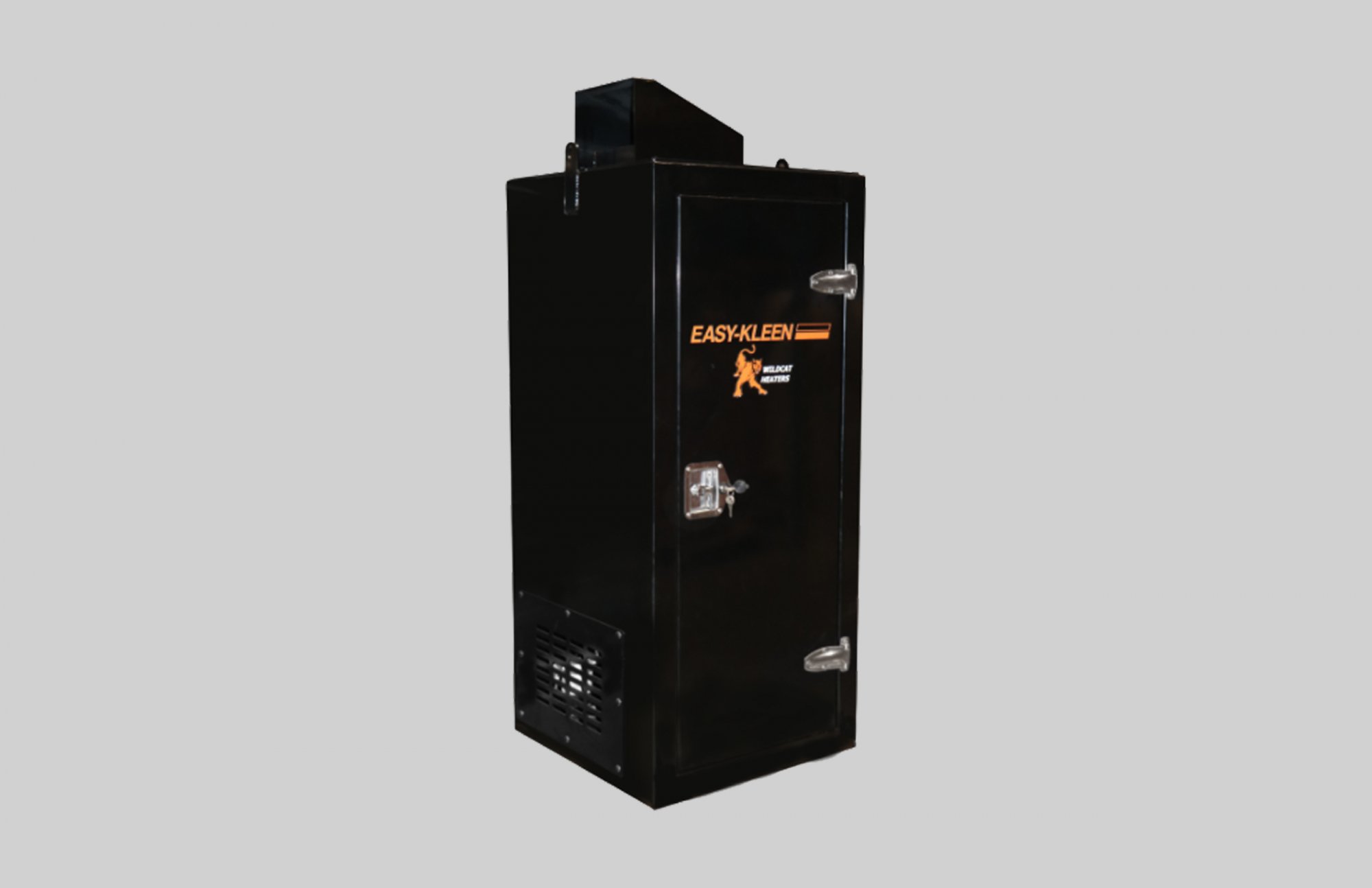

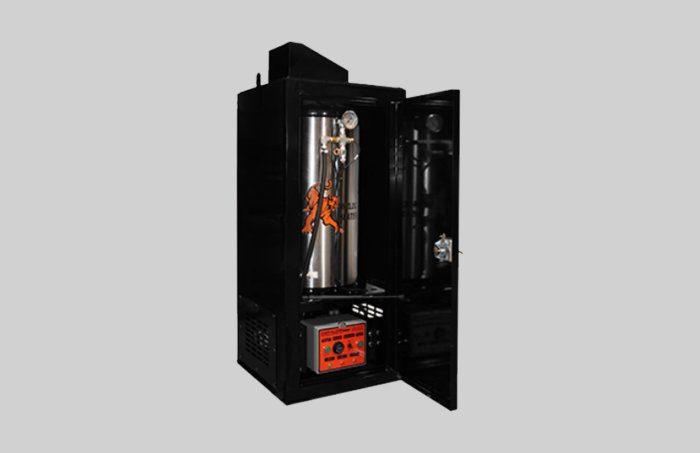

Cabinets (VCB Models)
The frame is constructed with one piece of 11 gauge steel that is box bent with a 1/4 steel coil base (Fully welded and powder coated). The unit is equipped with two service panels at the base of the unit and a removable top for quick and easy coil removal. Stainless steel hinges and fasteners are also utilized. Install ready for Vacuum and Hydro Vac Trucks.

Optional Pump Systems
Hydraulic, electric, gasoline and diesel driven pump systems are available to pair with these units

Redundancy packages, various types of thermostats, flow switches and safety features are also available to meet your specifications.


Part #

BTU VOLTAGE Schedule 80 PSI Schedule 160 PSI Dimensions L"xW"xH" VCB Dimensions L"xW"xH"
EZ0440 / EZ0440VCB 440,000 120 or 12 5000 10,000 19 x 19 x 51 24 x 24 x 62.5
EZ0600 / EZ0600VCB 600,000 120 or 12 5000 10,000 22.5 x 22.5 x 50 26 x 24 x 64


Note: VCB Heaters are Complete with Cabinets. Add VAC to Heaters for Hydro Vac Truck Control Panels
