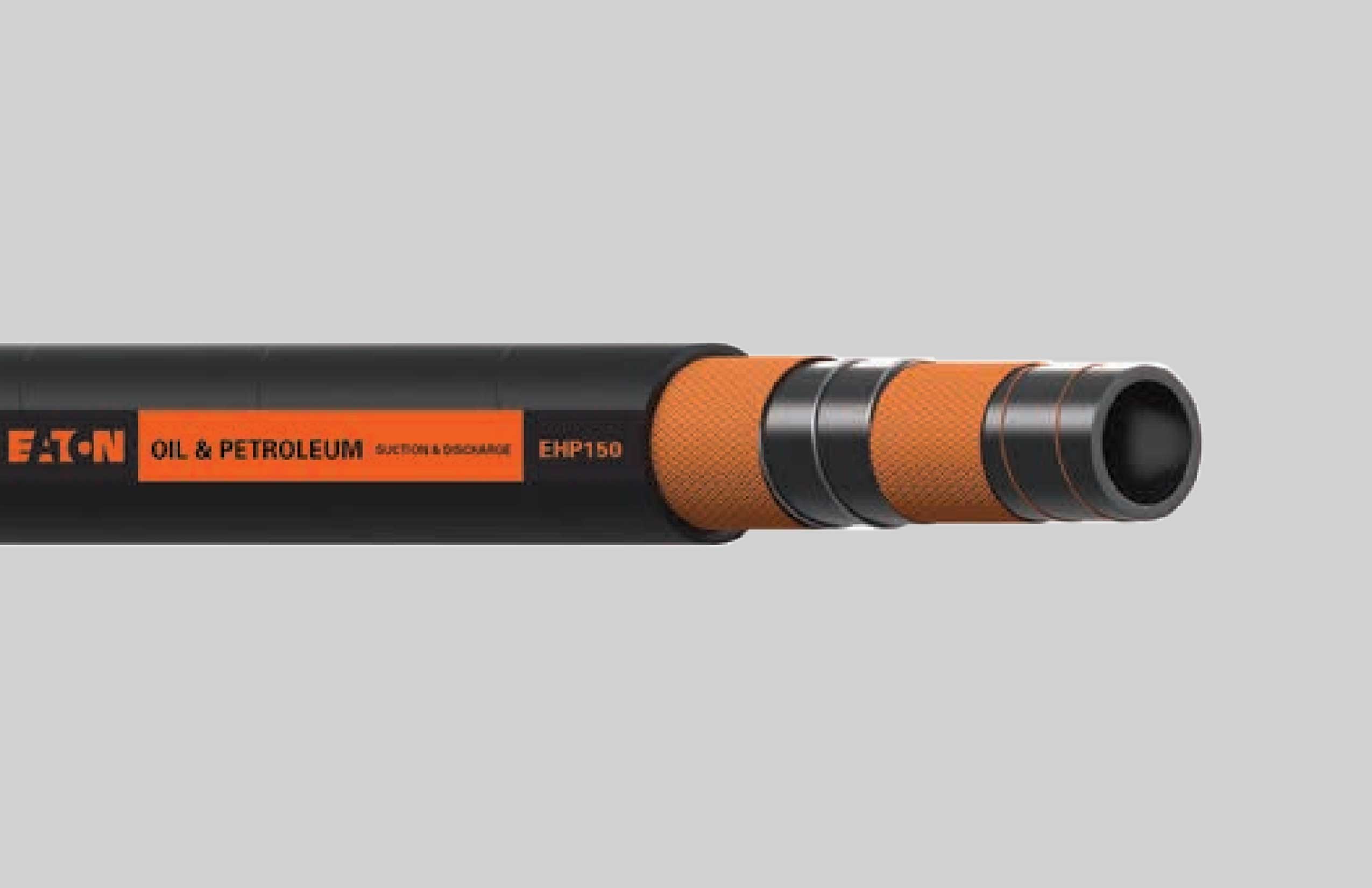

Petroleum / Oil Suction & Discharge Hose

PETROLEUM / OIL SUCTION & DISCHARGE HOSE

Call for price
Categories: , , , , ,

Description

Construction:

Tube: NBR blend
Reinforcement: High-tensile synthetic textile with a single steel helical wire and anti-static copper wire
Cover: Abrasion and weather resistant NBR blend

Operating Temperature:

-35°C to +70°C (-31°F to +158°F)

Application:

  • For suction and discharge of petroleum products

For use with petroleum products with aromatic contents up to 50%

Markets:

  • Petroleum industry
  • Paper/pulp industry
  • Oil and gas exploration
  • Ship building
  • Tank trucks
  • Waste hauling
  • Batch plants

Type of Couplings:

  • Cam and groove
  • Combination nipple

Specifications

Part #

Hose I.D. (In)

Hose O.D. (In)

Max Operating Pressure (PSI)

Burst Pressure (PSI)

Minimum Bend Radius (In)

Vacuum (In/Hg)

Weight (Lbs/Ft)
EHP150-12BK-100 0.75 1.20 150 450 3.75 28 0.39
EHP150-16BK-100 1.00 1.45 150 450 4.33 28 0.48
EHP150-20BK-100 1.25 1.74 150 450 5.51 28 0.61
EHP150-24BK-100 1.50 1.97 150 450 6.69 28 0.79
EHP150-32BK-100 2.00 2.53 150 450 9.84 28 1.11
EHP150-40BK-100 2.50 3.09 150 450 12.20 28 1.43
EHP150-48BK-100 3.00 356 150 450 14.96 28 1.86
EHP150-64BK-100 4.00 4.67 150 450 20.08 28 2.71
EHP150-96BK-100 6.00 6.77 150 450 31.10 28 5.20
EHP150-128BK-100 8.00 9.07 150 450 43.31 24 9.65
