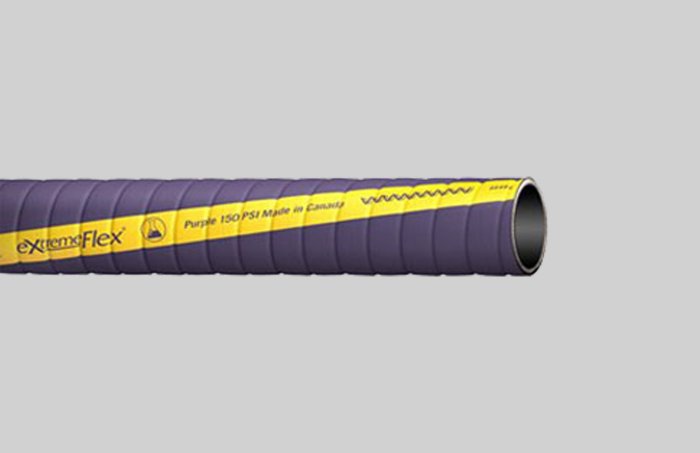

Plicard ExtremeFlex – Purple

Applications:

A high-tech, flexible and versatile chemical hose capable of handling a wide range of chemicals, acids and alcohols in both suction and discharge service.



Specifications:

  • Construction Tube: Black EPDM synthetic rubber
  • Cover: Corrugated purple EPDM synthetic rubber
  • Reinforcement: Spiral plied synthetic fabric with double wire hel
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications.
  • Non Stock / Sizes: 400’ min if not stocked.
  • Temperature Range: -40°F to 221°F (-40°C to 105°C)
  • Order Codes: 546-721
  • Packaging: 100’ exact cut length, coiled, polywrapped
Request Quote
Email for Quote
Call for Quote
Categories , , , Tags , , , , ,
Plicard ExtremeFlex - Purple

Description

Applications:

A high-tech, flexible and versatile chemical hose capable of handling a wide range of chemicals, acids and alcohols in both suction and discharge service.



Specifications:

  • Construction Tube: Black EPDM synthetic rubber
  • Cover: Corrugated purple EPDM synthetic rubber
  • Reinforcement: Spiral plied synthetic fabric with double wire hel
  • Coupling: Refer to the Continental ContiTech Industrial Hose Assembly Manual for crimp specifications.
  • Non Stock / Sizes: 400’ min if not stocked.
  • Temperature Range: -40°F to 221°F (-40°C to 105°C)
  • Order Codes: 546-721
  • Packaging: 100’ exact cut length, coiled, polywrapped

Specifications

Imperial Technical Data:

Part # I.D. O.D. Weight (lb) Working PSI Bend Radius Vacuum HG
GPEFCP200 2 2.44 0.95 150 3.00 29
GPEFCP300 3 3.54 1.76 150 4.50 29

Metric Technical Data:

Part # I.D. O.D. Weight (lb) Working PSI Bend Radius Vacuum HG
GPEFCP200 50.80 61.90 1.42 1.03 76.0 737
GPEFCP300 76.20 89.80 2.62 1.03 114.0 737

Note: More sizes available upon request.
