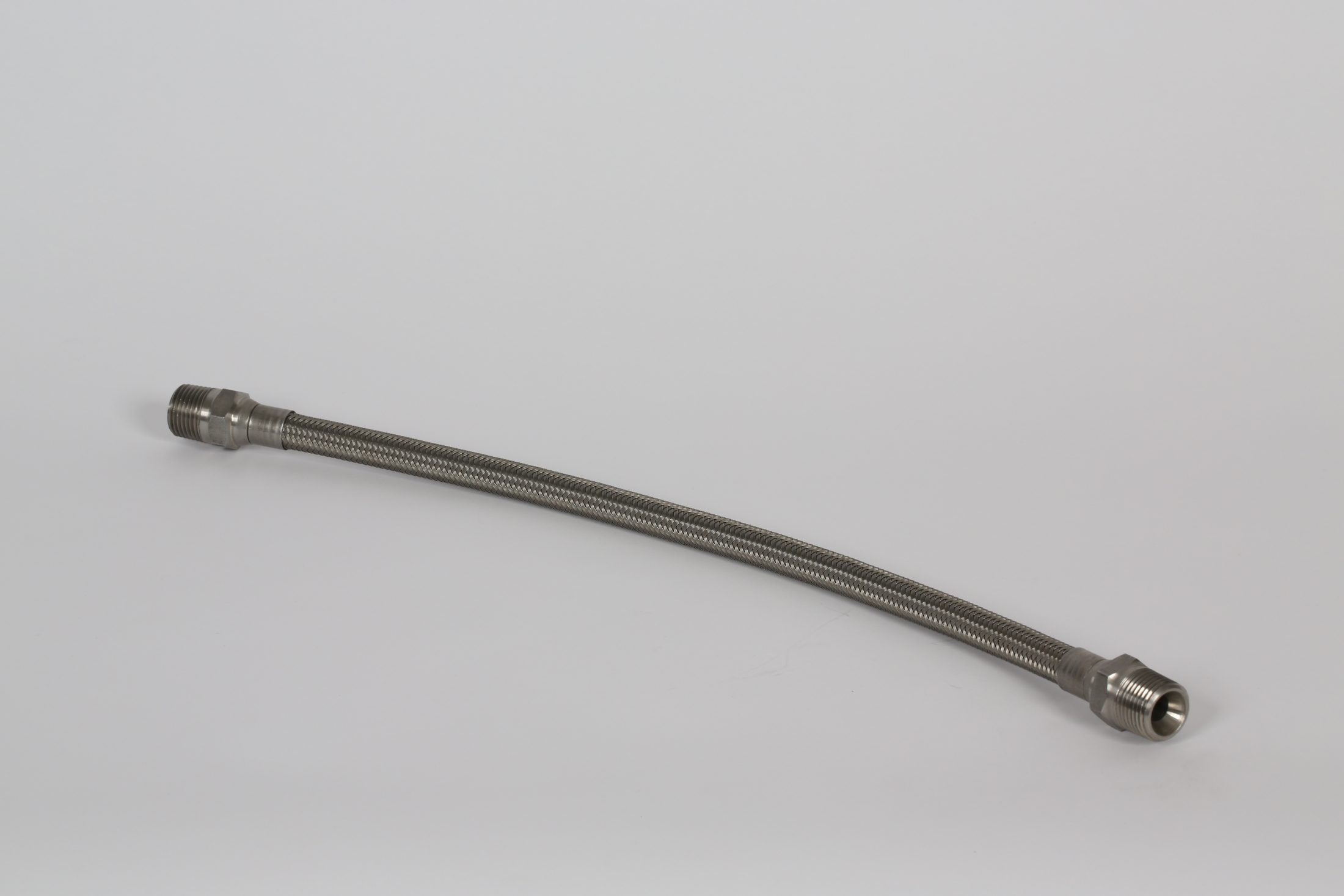

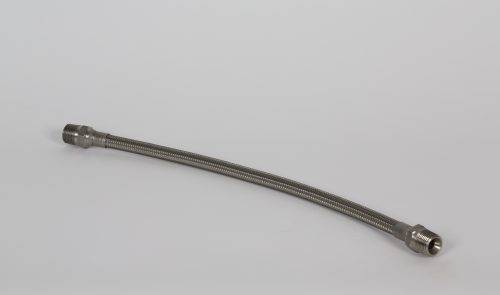

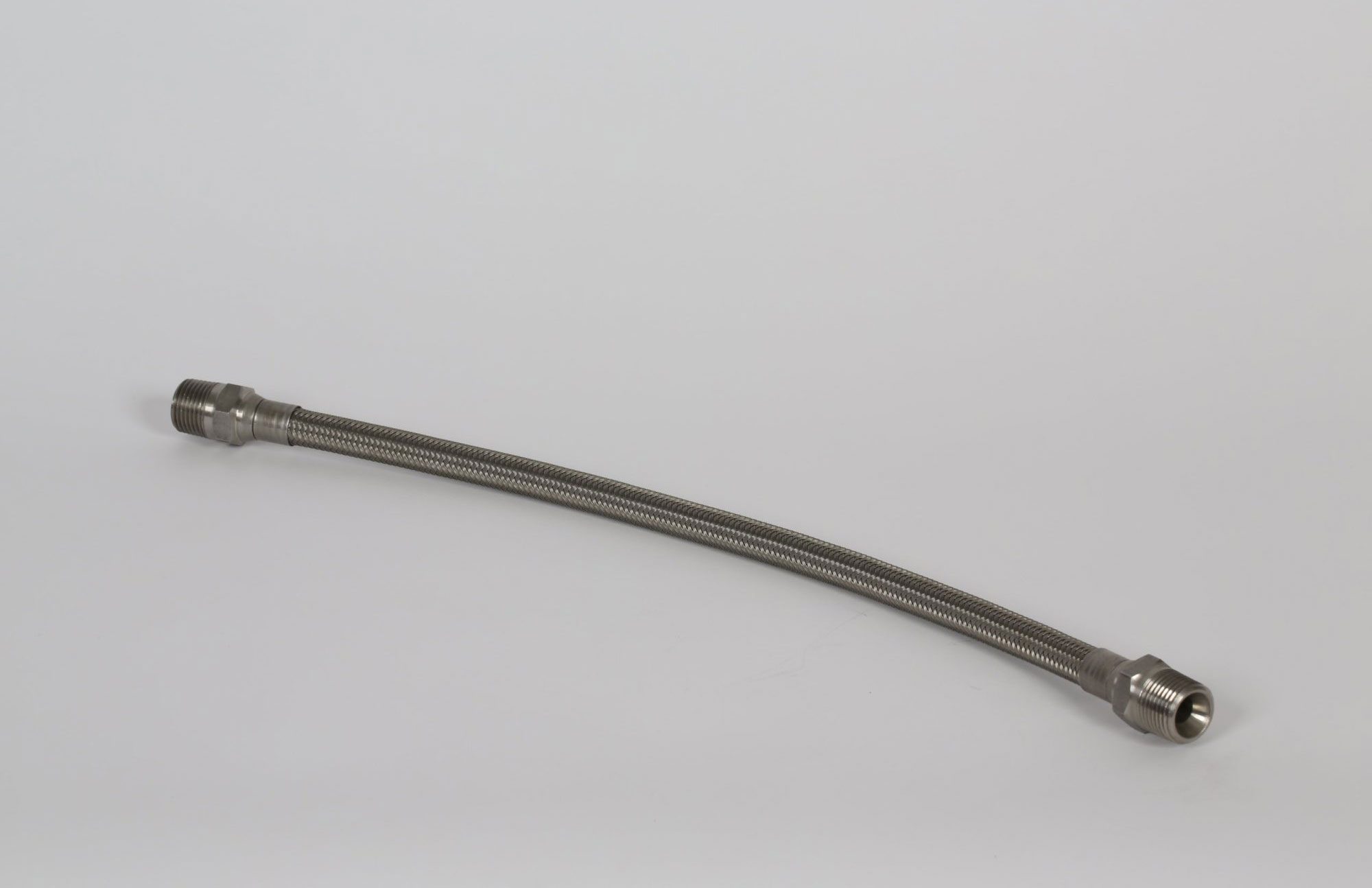

SMOOTH BORE PTFE HOSE

Applications:  Conveying of acids, chemicals, food and pharmaceuticals where a high pressure hose is required

Call for price
Categories: , ,

Description

Application:
• Conveying of acids, chemicals, food and Pharmaceuticals

Reinforcement/Cover:
• Stainless steel (304) braid

Temp Range:
• -65°F to +450°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Wall

Thickness (in)

Vacuum

Service

S-4TW

3/16 .305 3000 2.0 .030 28
S-5TW 1/4 .375 3000 3.0 .030 28
S-6TW 5/16 .430 2500 4.0 .030 28
S-7TW 3/8 .515 2000 5.0 .030 28
S-8TW 13/32 .535 2000 5.0 .030 28
S-10TW 1/2 .636 1750 6.5 .030 28
S-12TW 5/8 .765 1500 7.5 .030 28
S-14TW 3/4 .890 1000 8.5 .035 28
S-16TW 7/8 1.030 1000 9.0 .035 12
S-18ZTW 1 1.215 1000 12.0 .035 12
