Description
Applications:
• For engine intake and exhaust systems, conduit, granular materials, spouts, casings, and chimney liners
Tube:

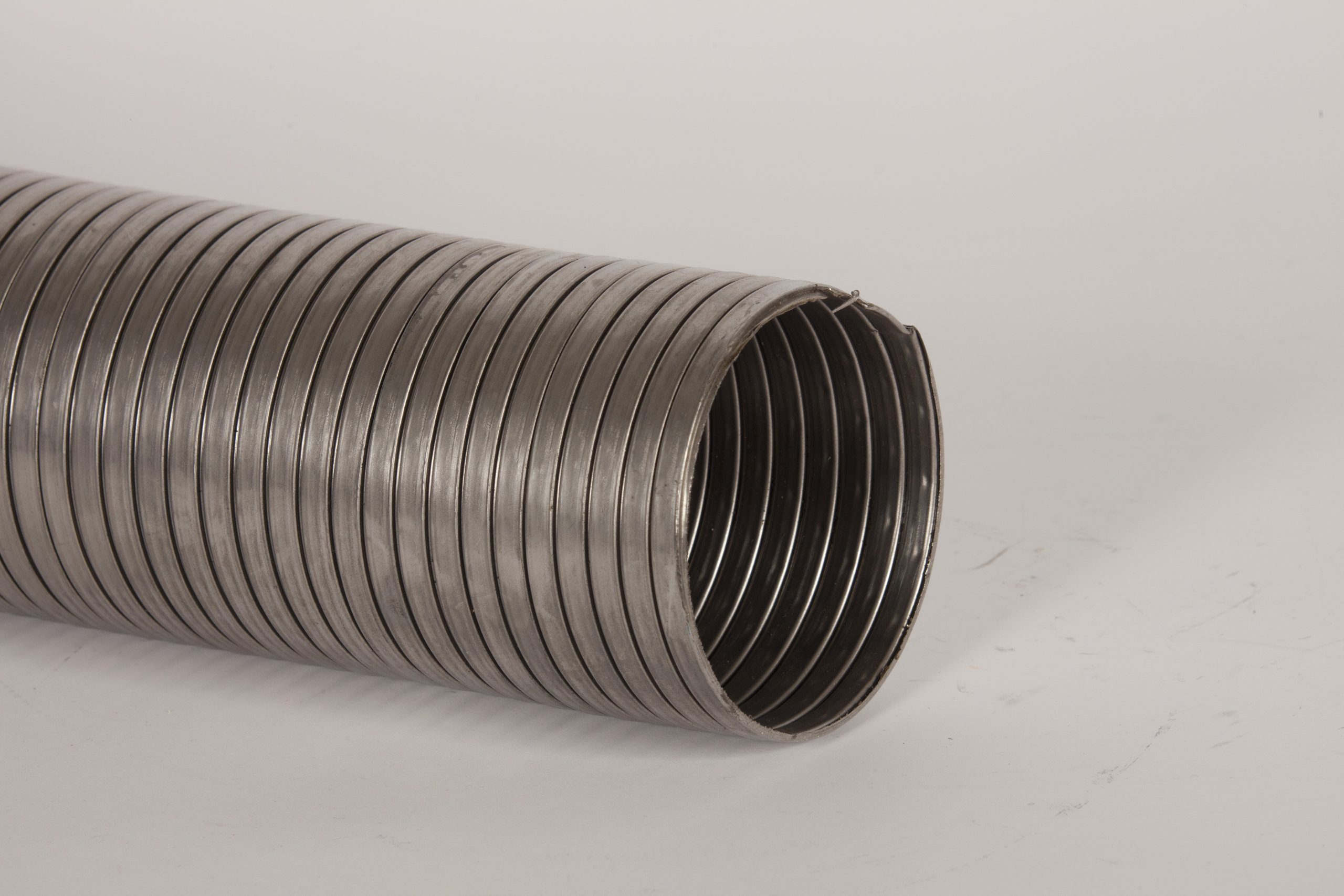

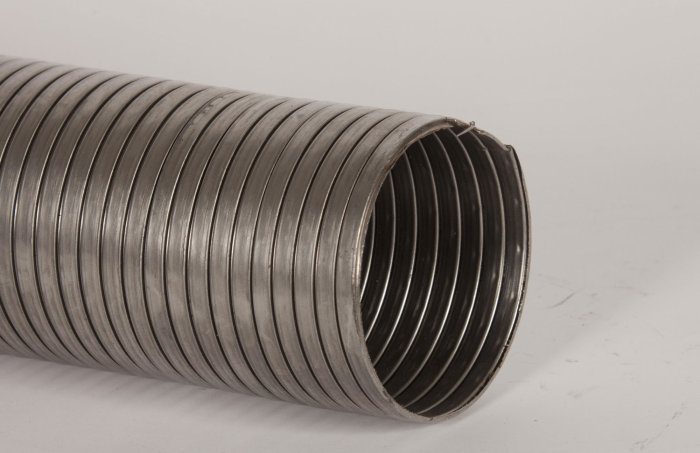

• Smooth bore interlocked stainless steel .018” strip thickness
Temp Range:
• -60°F to +400°F
Applications:
• For engine intake and exhaust systems, conduit, granular materials, spouts, casings, and chimney liners
Tube:
• Smooth bore interlocked stainless steel .018” strip thickness
Temp Range:
• -60°F to +400°F
Applications:
• For engine intake and exhaust systems, conduit, granular materials, spouts, casings, and chimney liners
Tube:
• Smooth bore interlocked stainless steel .018” strip thickness
Temp Range:
• -60°F to +400°F
Part # |
I.D (in.) |
O.D (in.) |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length |
R360S150 | 1 1/2 | - | 15 | 7.3 | .94 | 25,50,60 |
R360S175 | 1 3/4 | - | 15 | 9.2 | 1.10 | 25,50,60 |
R360S200 | 2 | - | 15 | 10.5 | 1.23 | 25,50,60 |
R360S225 | 2 1/4 | - | 15 | 10.8 | 1.40 | 25,50,60 |
R360S250 | 2 1/2 | - | 15 | 12.0 | 1.53 | 25,50,60 |
R360S275 | 2 3/4 | - | 15 | 12.8 | 1.67 | 25,50,60 |
R360S300 | 3 | - | 15 | 14.0 | 1.82 | 25,50,60 |
R360350 | 3 1/2 | - | 15 | 15.5 | 2.11 | 25,50,60 |
R360S400 | 4 | - | 15 | 16.5 | 2.40 | 25,50,60 |
R360S450 | 4 1/2 | - | 15 | 18.0 | 2.70 | 25,50,60 |
R360S500 | 5 | - | 15 | 20.0 | 2.99 | 25,50,60 |
R360S600 | 6 | - | 15 | 26.0 | 3.57 | 25,50,60 |
R360G____ For Galvanized model.
Also known as SF400KU Product Hose Part Numbers
Inner Diameter | 1-3/4", 1-1/2", 2", 2-1/4", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 6" |
---|
