Switchblade Ripsaw Nozzle

PERFORMANCE – Complete jobs faster with more runtime and less downtime. A combination of (1), (2), or (4) 0° solid stream nozzles provide greater impingement, allowing you to cut through soil faster while using dramatically less water. The Switchblade’s long, linear flow path is ideally suited for trenching applications.

DURABILITY – These heavy duty, high impact nozzles are constructed with stainless steel housings and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than stainless steel nozzle tips.

SAFETY – Non-conductive urethane coating on the nozzle body protects the operator and sensitive underground utilities.

FLEXIBILITY – Individual, replaceable, color-coded nozzle pills allow you to change water flow rate and pattern based on current soil conditions.

Maximum Inlet Pressure: 3200 PSI (220 Bar)
Maximum Water Temperature: 180° F (+82° C)
Nozzle Tip Material: Tungsten
Connection Thread: 1/8” NPT

Description

PERFORMANCE – Complete jobs faster with more runtime and less downtime. A combination of (1), (2), or (4) 0° solid stream nozzles provide greater impingement, allowing you to cut through soil faster while using dramatically less water. The Switchblade’s long, linear flow path is ideally suited for trenching applications.

DURABILITY – These heavy duty, high impact nozzles are constructed with stainless steel housings and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than stainless steel nozzle tips.

SAFETY – Non-conductive urethane coating on the nozzle body protects the operator and sensitive underground utilities.

FLEXIBILITY – Individual, replaceable, color-coded nozzle pills allow you to change water flow rate and pattern based on current soil conditions.

Maximum Inlet Pressure: 3200 PSI (220 Bar)
Maximum Water Temperature: 180° F (+82° C)
Nozzle Tip Material: Tungsten
Connection Thread: 1/8” NPT

Specifications

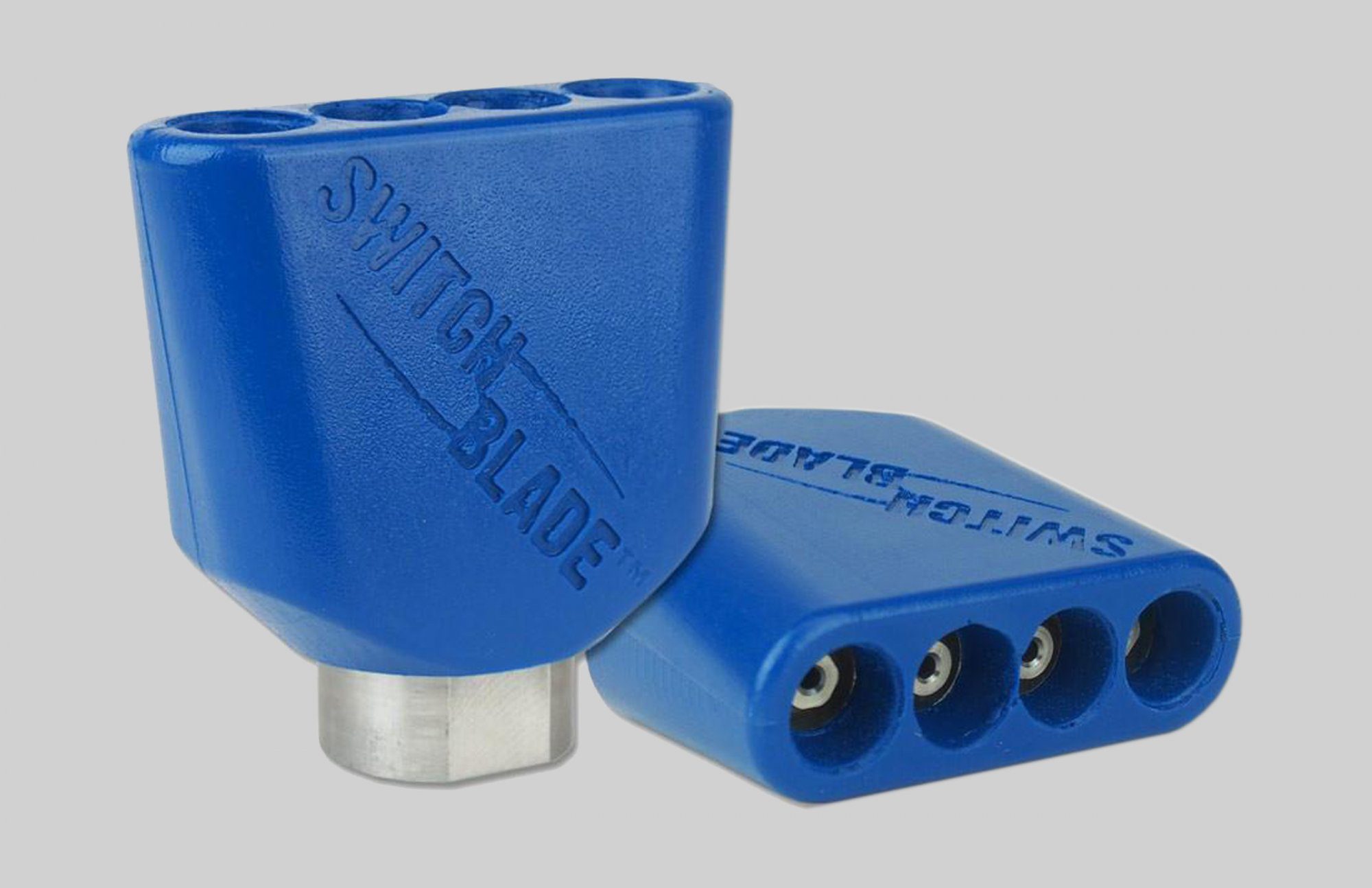

Part # Inlet (in) Description
1002889 1/2" Quad #4.0
1002949 1/2" Quad #6.0
1001927 1/2" Quad #8.0
1001928 1/2" Quad #10.0
1002950 1/2" Quad #12.0
1001929 1/2" Quad #14.0



Also available for purchase (prices not listed):

Part # Description

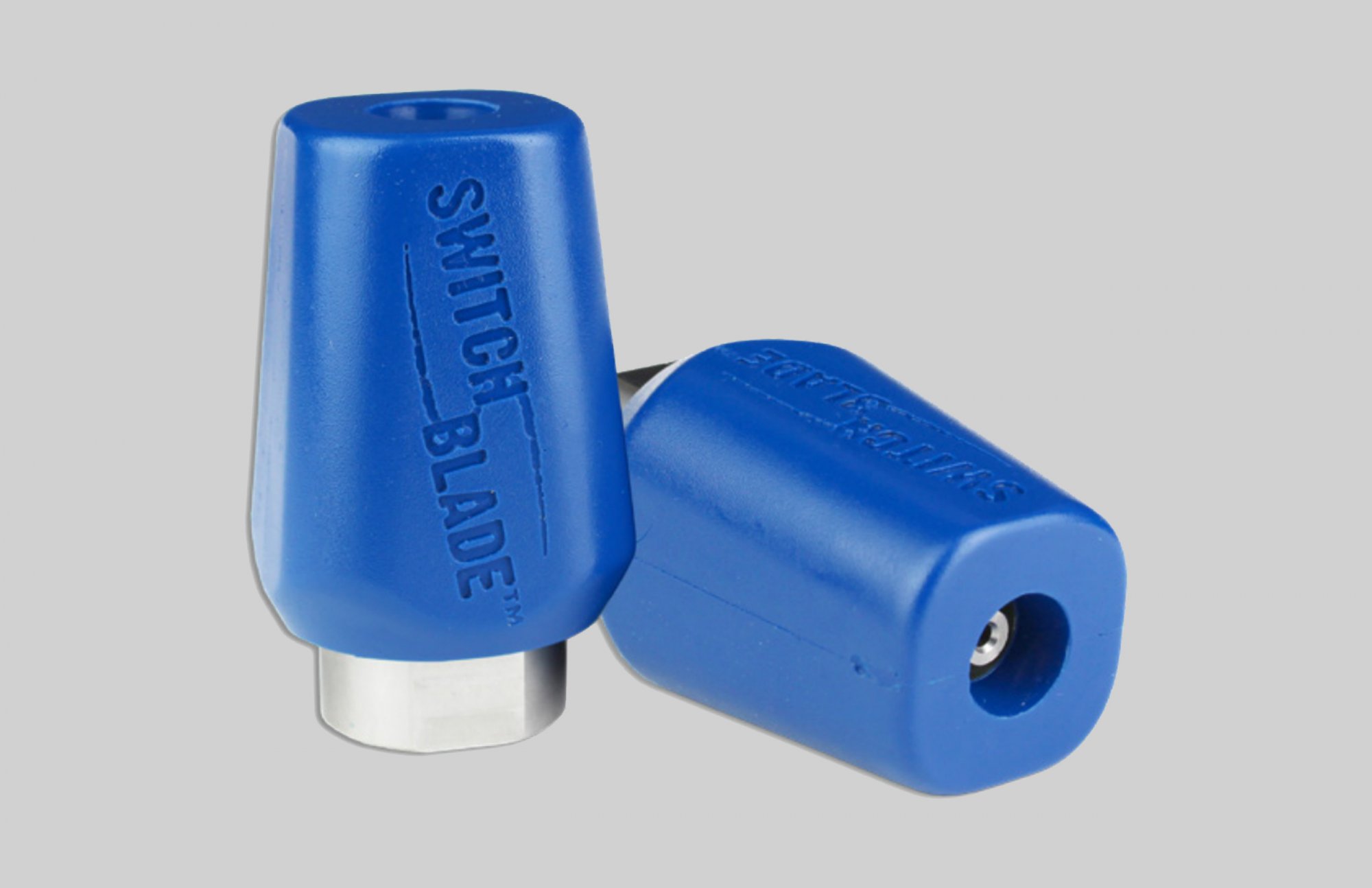

1002036-010 Switchblade Ace #1.0
1002036-020 Switchblade Ace #2.0
1002036-030 Switchblade Ace #3.0
1002036-040 Switchblade Ace #4.0
1002036-050 Switchblade Ace #5.0
1002036-060 Switchblade Ace #6.0
1002036-080 Switchblade Ace #8.0
1002036-100 Switchblade Ace #10.0
1002036-120 Switchblade Ace #12.0

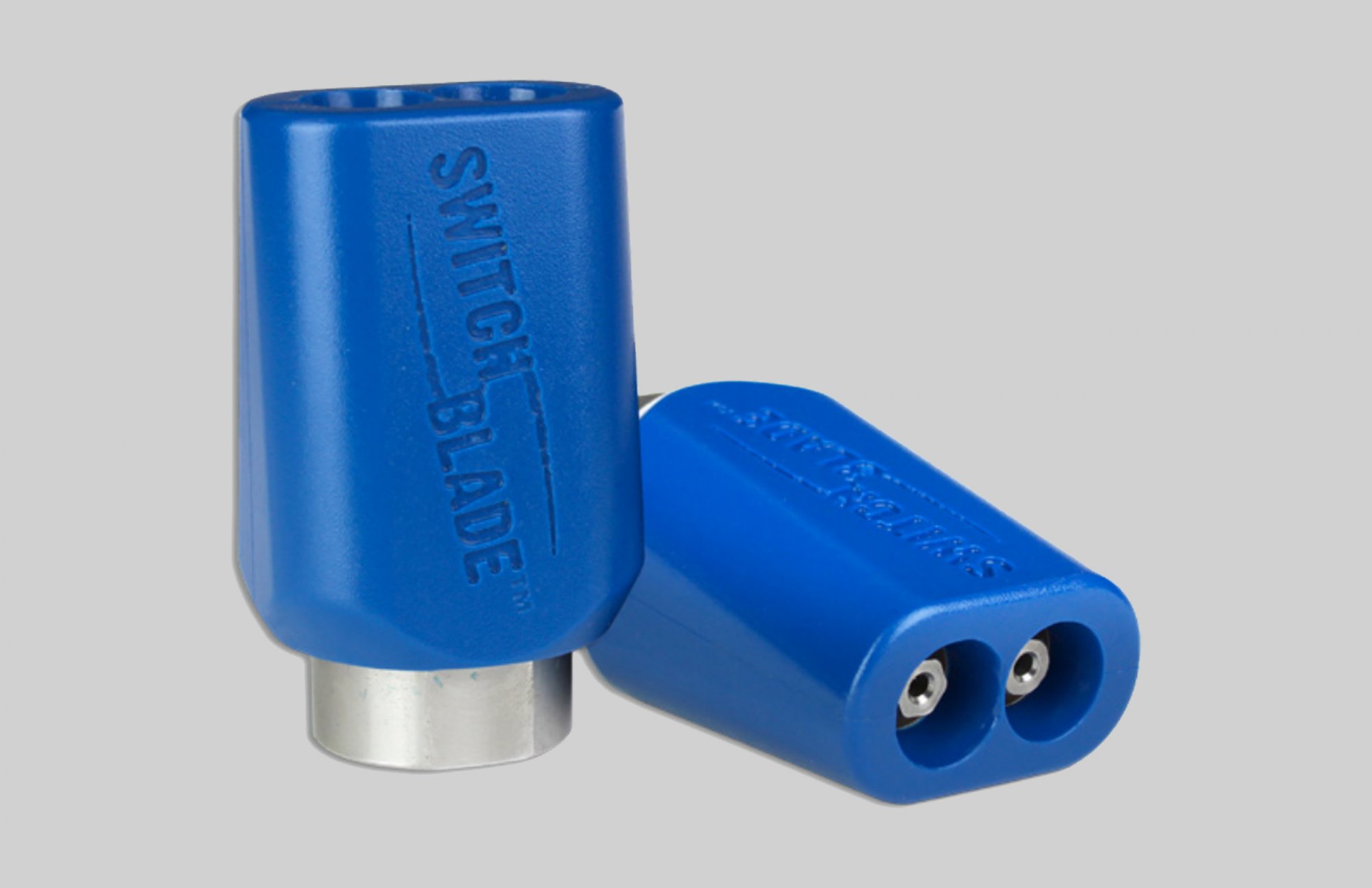

1002035-020 Switchblade Deuce #2.0
1002035-040 Switchblade Deuce #4.0
1002035-060 Switchblade Deuce #6.0
1002035-080 Switchblade Deuce #8.0
1002035-100 Switchblade Deuce #10.0
1002035-120 Switchblade Deuce #12.0

Additional information

Orifice Size

#4.0, #6.0, #8.0, #10.0, #12.0, #14.0
