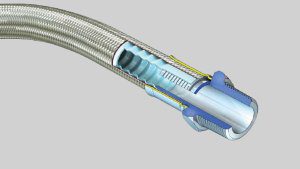

TEFLON HOSE – MEDIUM PRESSURE SMOOTH BORE Existing customers can log in to their account for additional savings Call for price Categories: Assemblies, Hose, Teflon, Teflon Assemblies Description Specification Description Application: Used in stringent applications that need the protection of a hose that meets or exceeds SAE 100 R14 standard. Design: Smooth bore PTFE tube with high tensile SS 304 braid to the antistatic SAE 100 R14 Standard. Inner Layer: Medium wall smooth bore antistatic PTFE tube. Outer Layer: High tensile 304 maypole wound Stainless Steel braid. Temperature Min: -60°C Temperature Max: +260°C Material: PTFE according to “ISO12086, Part 1. PTFE-E.P.D.M 1.61.C.E.4_12”. Kongsberg Automotive SAE 100R14 Range is a smooth bore PTFE lined hose that is made to meet or exceed the SAE 100R14 specification. Kongsberg Automotive SAE 100R14 type B range is a smooth bore antistatic PTFE lined hose that is made to meet or exceed the SAE 100R14 specification. This product should be used when electrically resistive fluids are being transferred at high flow rates. T1167 – .030 tube wall, non-conductive virgin PTFE tubing, over braided with 300 series stainless steel wire. T1170 – .030 tube wall, conductive lined, virgin PTFE tubing, over braided with 300 series stainless steel wire. T1168 – .030 tube wall, non-conductive virgin PTFE tubing, over braided with 80/20 bronze wire. T1702 – .040 tube wall, non-conductive virgin PTFE tubing, over braded with 300 series stainless steel wire. T1756 – .040 tube wall, conductive lined, virgin PTFE tubing, over braided with 300 series stainless steel wire. Specifications UnconductivePart # Conductive Part # Hose Size (In.) I.D. (In.) O.D. (In.) Operating Pressure PSI Burst Pressure PSI Bend Radius (In.) Weight (Lbs/Ft) T1167-03 T1170-03 3/16 .125 .250 3,000 12,000 2 .047 T1167-04 T1170-04 1/4 .187 .312 3,000 12,000 2 0.77 T1167-05 T1170-05 5/16 .250 .375 3,000 12,000 3 0.98 T1167-06 T1170-06 3/8 .312 .445 2,500 10,000 4 .110 T1167-07 T1170-07 7/16 .375 .503 2,250 9,000 4.5 .124 T1167-08 T1170-08 1/2 .405 .549 2,000 8,000 5.2 .124 T1167-10 T1170-10 5/8 .500 .648 1,500 6,000 6.5 .154 T1167-12 T1170-12 3/4 .625 .778 1,200 4,800 7.7 .170 T1167-14 T1170-14 7/8 .750 .885 1,100 4,400 8.2 .198 T1167-16 T1170-16 1 .875 1.030 1,000 4,000 9 .273 T1167-18 T1170-18 1-1/8 1.000 1.135 900 3,600 10 .305 T1167-20 T1170-20 1-1/4 1.125 1.290 750 3,000 16 .350 T1160 - .030 tube wall - non-conductive virgin PTFE tubing, over braided with 300 series stainless steel wire. T1170 - .030 tube wall, conductive lined, virgin PTFE tubing, over braided with 300 series stainless steel wire. Related products Teflon Hose – High Pressure: T1700 / T2000 Series White Washdown Hose Teflon Hose – Corrugated Pharmaline N&X
