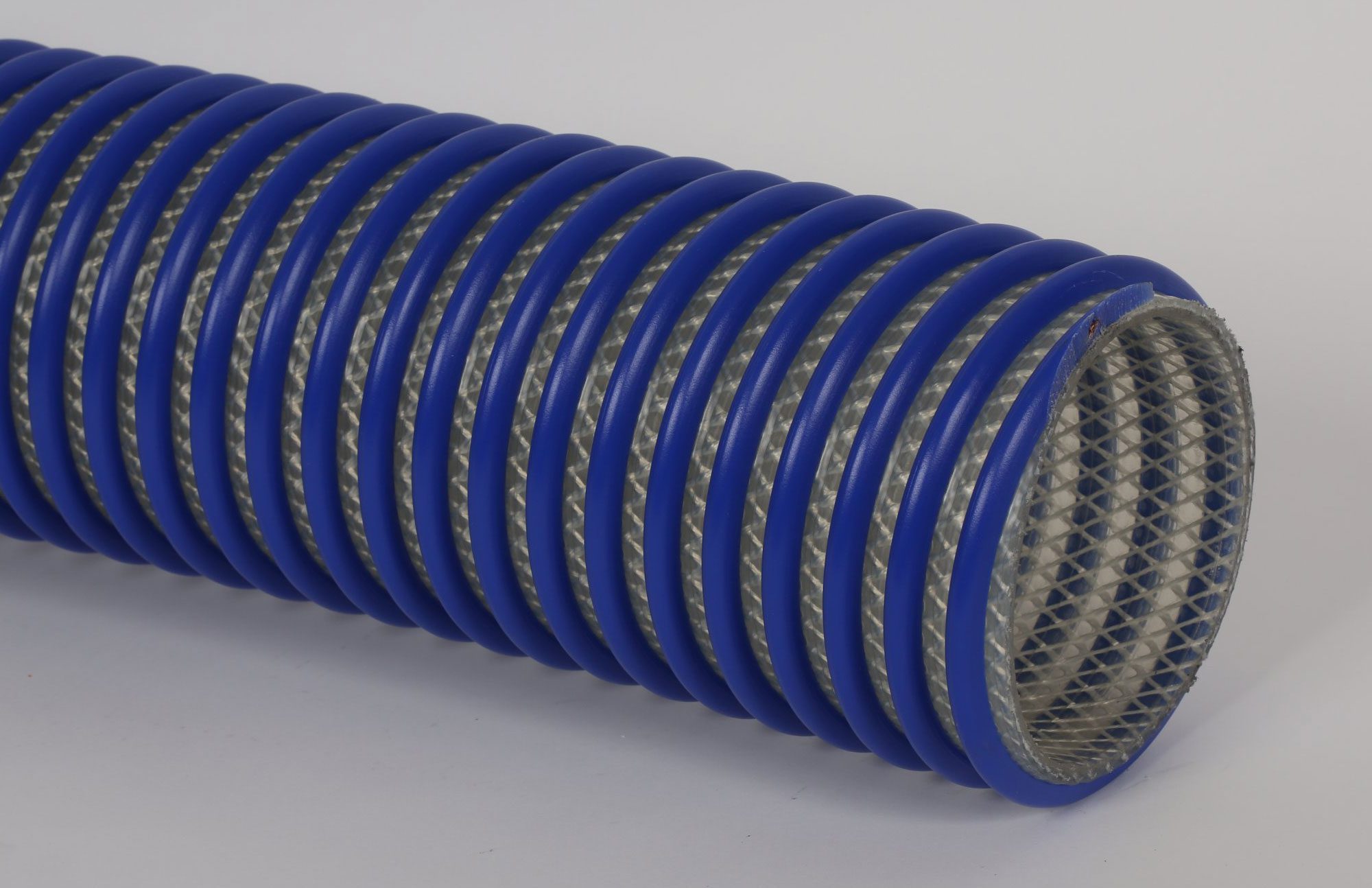

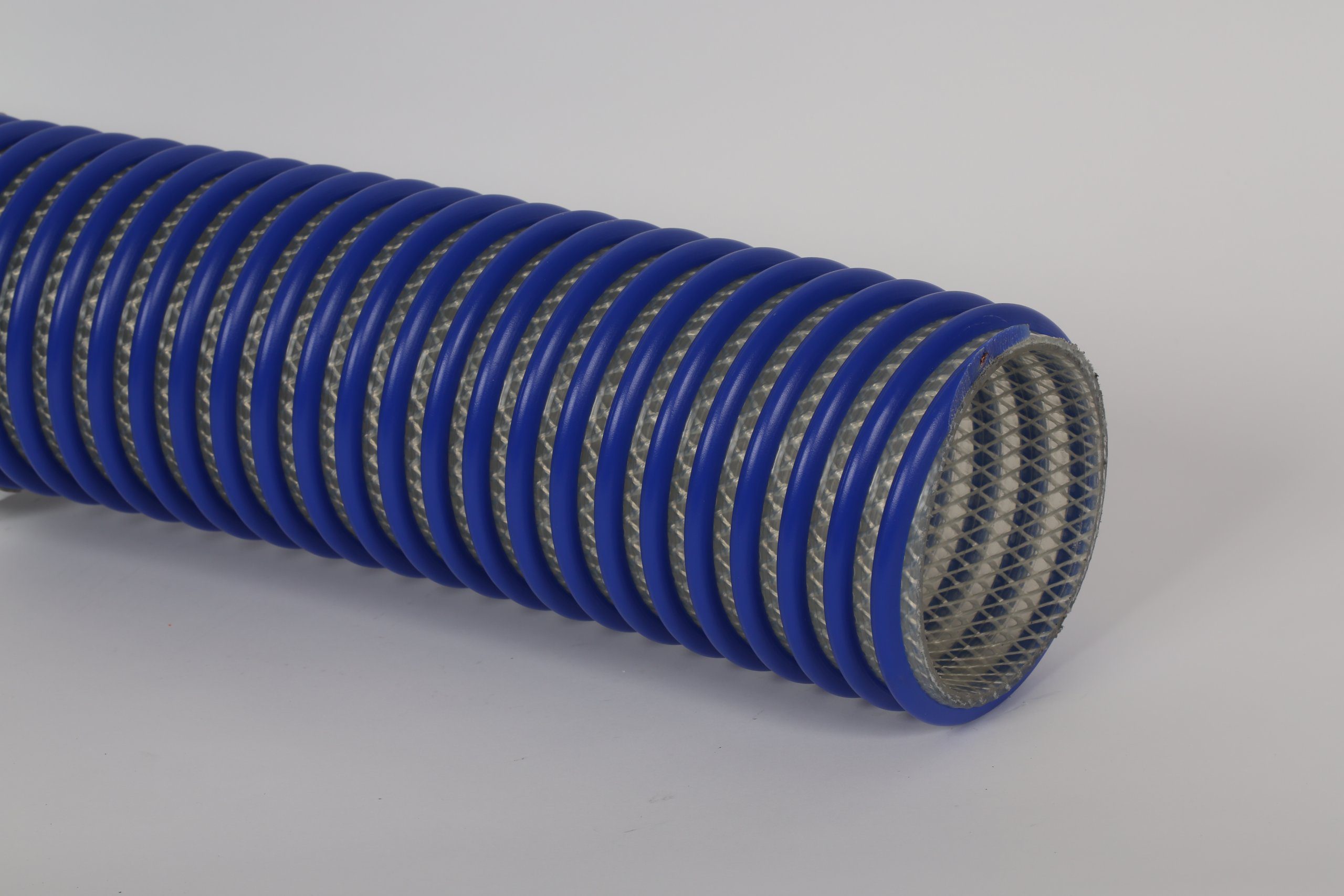

TigerFlex 2020 Dry Food

Applications:
• Pneumatic conveying systems for powder, pellets, or other dry granular materials
• Dry food transfer systems, such as flour, rice, grains, etc.
• FDA approved materials
• Polymer pellet transfer through 2020 is 60-70% quieter then with stainless steel hoses
• Highly resistant to abrasion

Tube:
• Smooth bore clear polyurethane (visual flow confirmation)

Reinforcement:
• Woven polyester fabric

Cover:
• Corrugated blue PVC helix with embedded static wire

Temp Range:
• -40°F to +150°F

Category Tags , , , , ,

Description

Applications:
• Pneumatic conveying systems for powder, pellets, or other dry granular materials
• Dry food transfer systems, such as flour, rice, grains, etc.
• FDA approved materials
• Polymer pellet transfer through 2020 is 60-70% quieter then with stainless steel hoses
• Highly resistant to abrasion

Tube:
• Smooth bore clear polyurethane (visual flow confirmation)

Reinforcement:
• Woven polyester fabric

Cover:
• Corrugated blue PVC helix with embedded static wire

Temp Range:
• -40°F to +150°F

Specifications

Part #

I.D

(in.)

O.D.

(in.)

Working

(PSI)

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

2020BL300 3 3.78 70 10.0 1.20 100
2020BL400 4 4.84 65 12.0 1.60 100
2020BL500 5 5.79 45 14.0 2.45 50
2020BL600 6 6.93 40 16.0 2.86 50

Additional information

Inner Diameter

3", 4", 5", 6"
