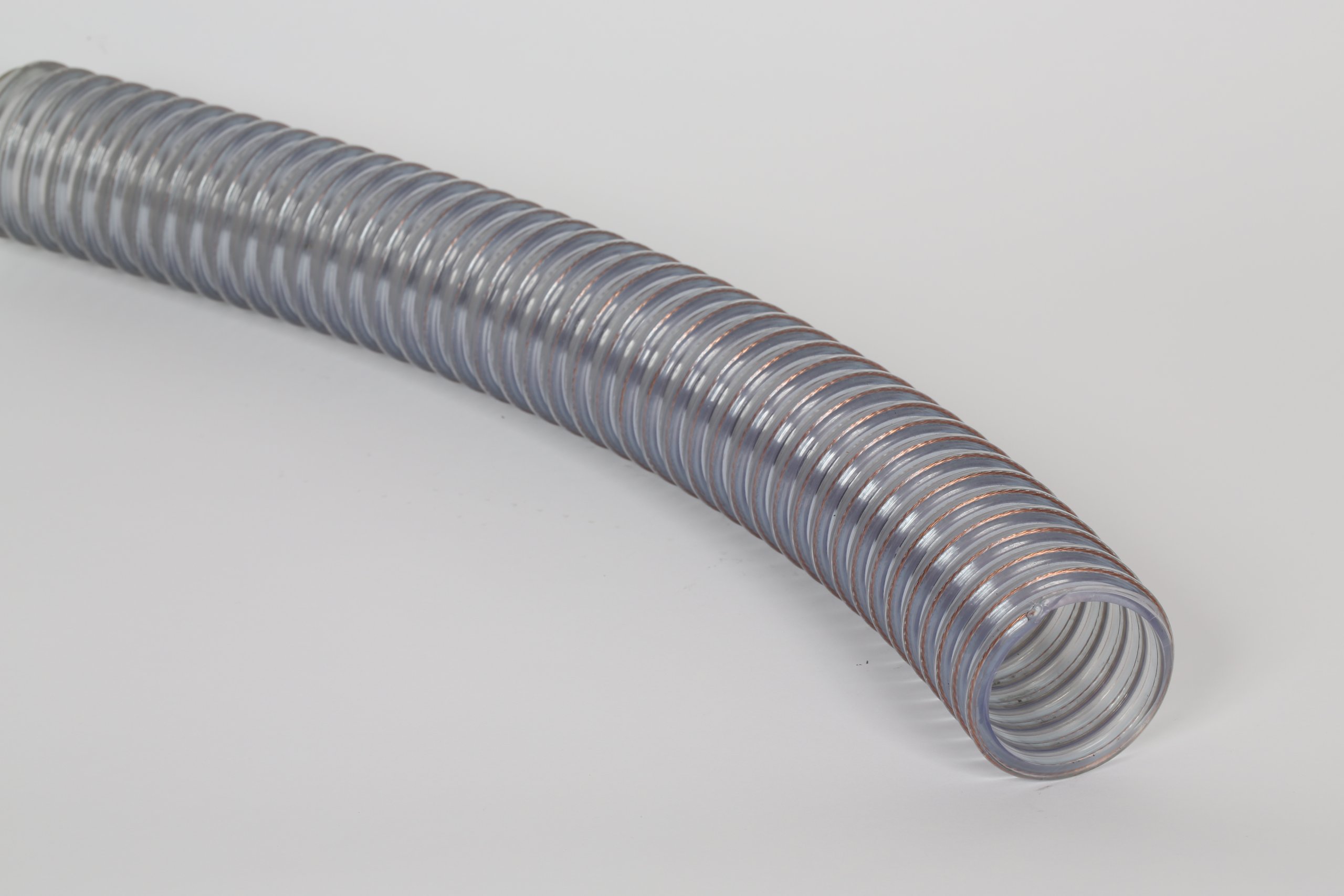

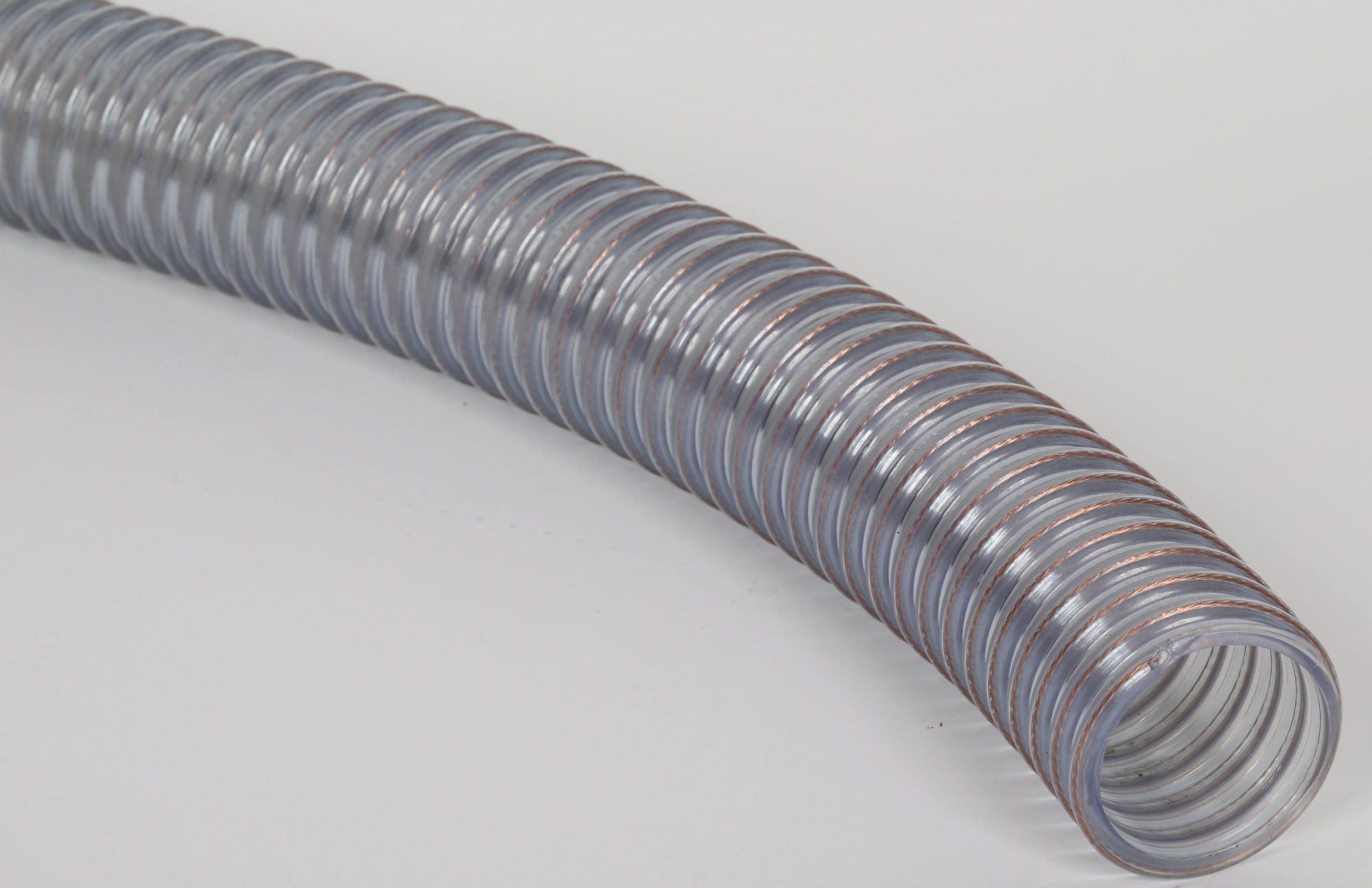

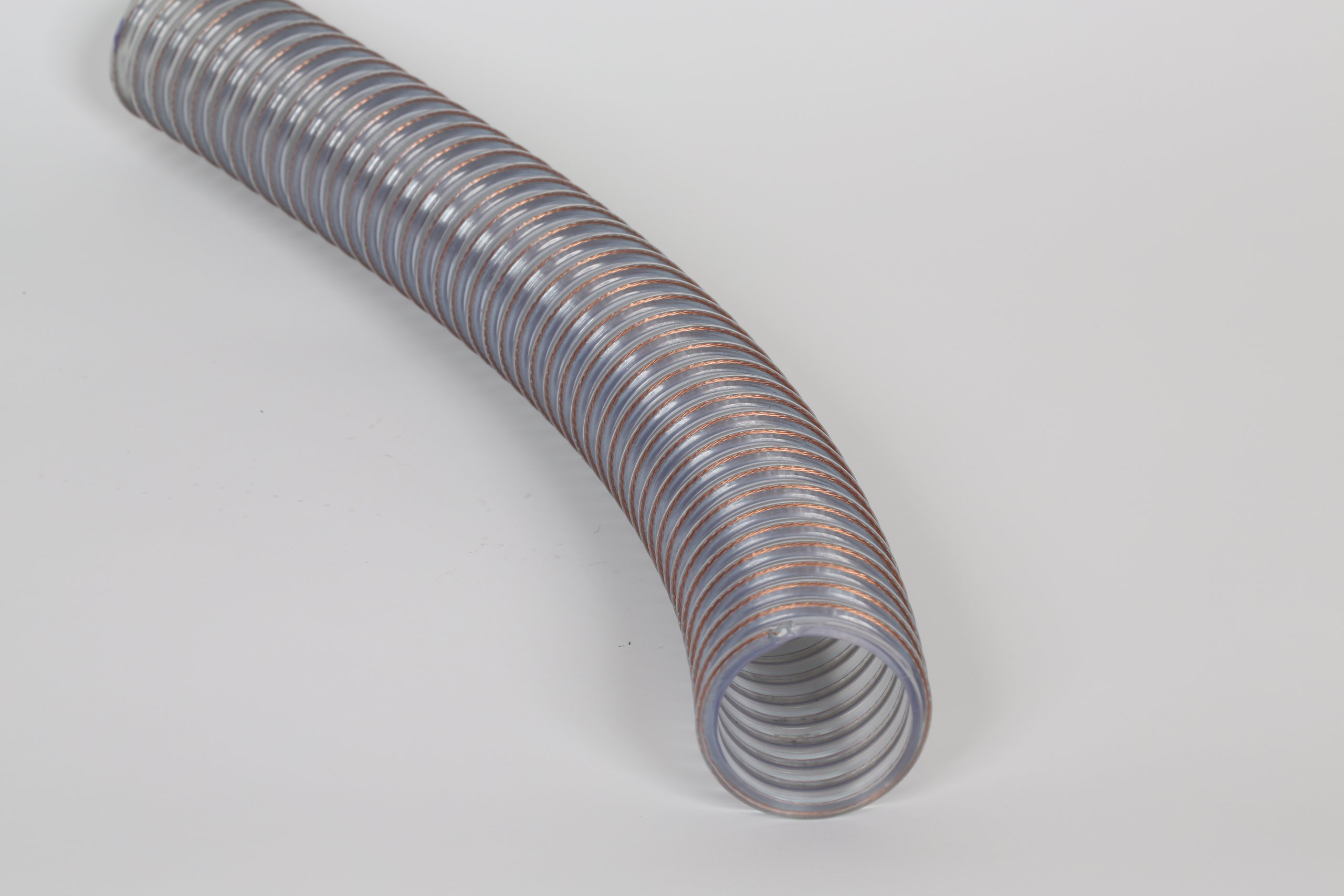

Description
Applications:
• Embedded static wire
• Paper mill vacuum lines
Tube:
• Smooth bore clear PVC (visual flow confirmation)
Cover:
• Corrugated PVC with embedded static wire
Temp Range:
• -40°F to +150°F
Applications:
• Embedded static wire
• Paper mill vacuum lines
Tube:
• Smooth bore clear PVC (visual flow confirmation)
Cover:
• Corrugated PVC with embedded static wire
Temp Range:
• -40°F to +150°F
Applications:
• Embedded static wire
• Paper mill vacuum lines
Tube:
• Smooth bore clear PVC (visual flow confirmation)
Cover:
• Corrugated PVC with embedded static wire
Temp Range:
• -40°F to +150°F
Part # |
I.D (in.) |
Working (PSI) |
Bend Radius ( in.) |
Weight (lbs/ft) |
Standard Length |
WE125 | 1 1/4 | 50 | 2.0 | .33 | 100 |
WE150 | 1 1/2 | 50 | 3.0 | .43 | 100 |
WE200 | 2 | 40 | 4.0 | .58 | 100 |
WE250 | 2 1/2 | 40 | 5.0 | .89 | 100 |
WE300 | 3 | 40 | 6.0 | 1.25 | 100 |
WE350 | 3 1/2 | 35 | 8.0 | 1.55 | 60 |
WE400 | 4 | 35 | 10.0 | 1.93 | 60 |
WE500 | 5 | 30 | 16.0 | 2.40 | 60 |
WE600 | 6 | 30 | 18.0 | 3.70 | 60 |
Also available in 1".
Inner Diameter | 1-1/4", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 5", 6" |
---|
