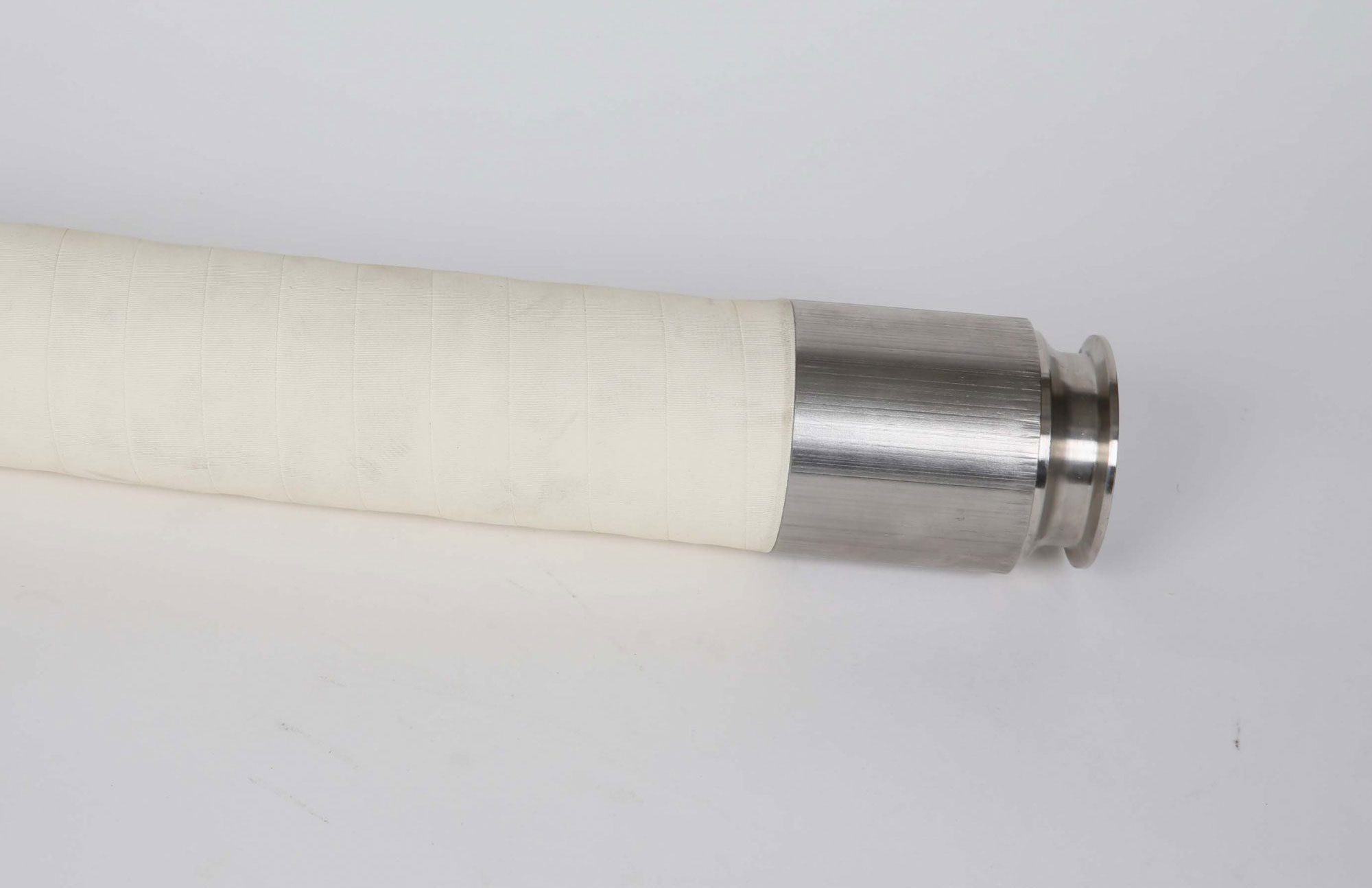

WHITE FOOD TRANSFER HOSE

Call for price
Category:

Description

Applications:
• Transfer of milk, juice, beer, soft drinks, pharmaceuticals, cosmetics or water-based products requiring an FDA sanitary hose.

Reinforcement:
• Synthetic, high tensile textile with static conductive filament; resilient monofilament helic providing crush and kink resistance.

Tube:
• Type S (Sanitron). White

Cover:
• Type P (EPDM). White or gray with burgundy spiral stripe

Temp Range:
• -40°F to +230°F

Specifications

Part #

I.D

(in.)

O.D

(in.)

Working

PSI

Bend

Radius (in.)

Weight

(lbs/ft)

Standard

Length

FM075WH 3/4 1.22 250 2.0 .42 100
FM100WH 1 1.48 250 3.0 .52 100
FM150WH 1 1/2 2.07 250 4.5 .90 100
FM200WH 2 2.62 250 6.0 1.19 100
FM250WH 2 1/2 3.25 250 12.0 1.81 100
FM300WH 3 3.86 250 18.0 2.46 100
FM400WH 4 4.88 250 36.0 3.24 100

Also available in FM150GREY + FM150WHITE

Additional information

Inner Diameter

1", 1-1/2", 2", 2-1/2", 3", 3/4", 4"
