Wingcraft – Transfer Hose

For fueling or defueling* commercial and private aircraft. It handles jet fuel and the higher aromatic aviation gasolines. Its high working pressure permits use in fuel cart hydrant service. Hose meets EI 1529-7th edition, 2014 and N.F.P.A. Bulletin #407 (2017 revision).

  • Construction Tube: Black Nitrile Synthetic Rubber
  • Cover: Black Wingprene® (ORS) Static Dissipating/Static Conductive Synthetic Rubber
  • Reinforcement: Spiral-plied Synthetic Fabric
  • Coupling: Contact fitting manufacturer for proper fitting recommendation and coupling procedures.
  • Non Stock / Sizes: Custom lengths and fitting configurations available.
  • Temperature Range: -35°F to 200°F (-37°C to 93°C)
  • Order Codes: 543-738 (1” to 3”), 541-738 (4”)
  • Packaging: Cut lengths, coiled and poly-wrapped
Request Quote
Email for Quote
Call for Quote
Categories , , , , , , , , Tags , , , , , ,

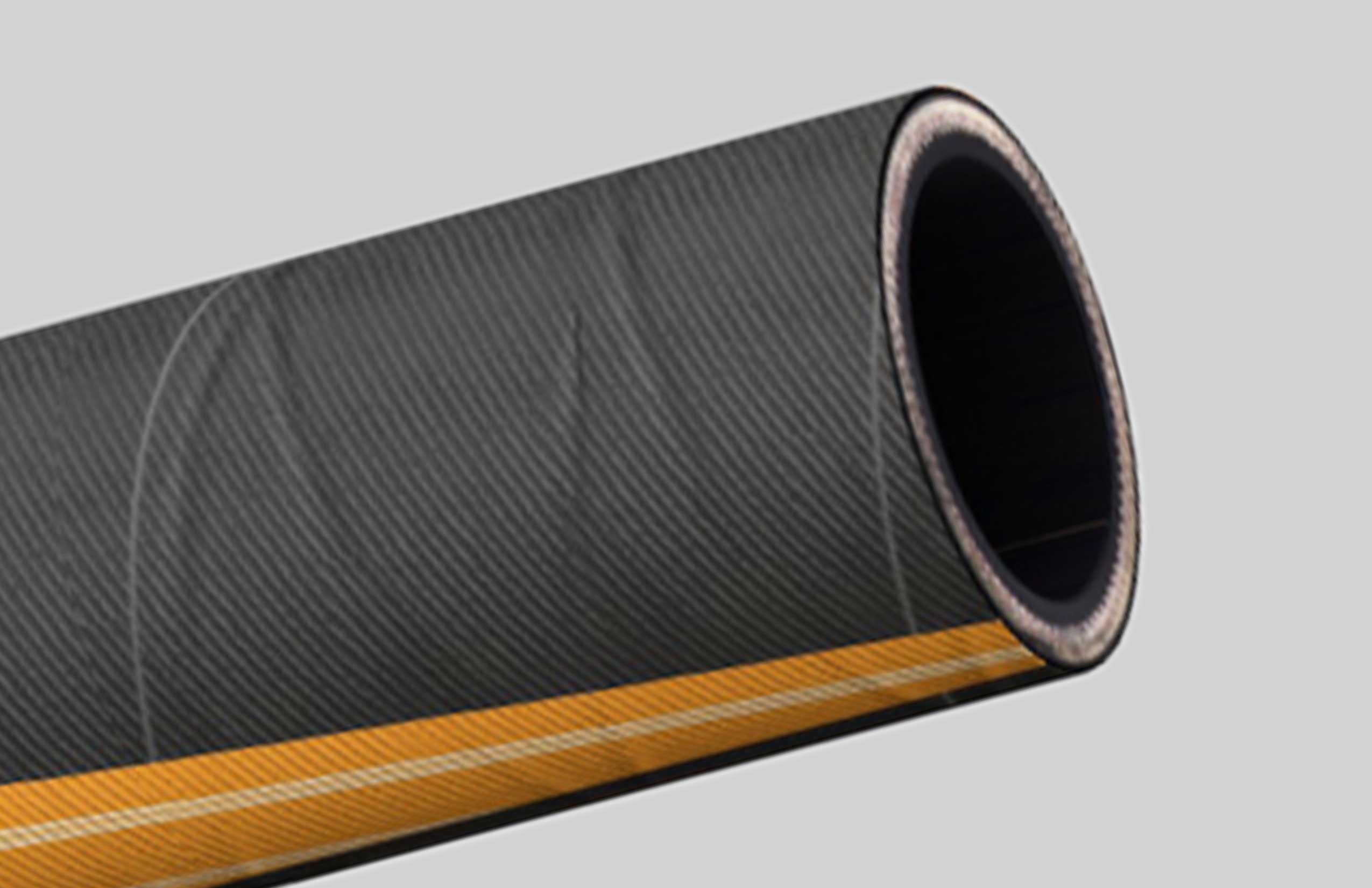

Wingcraft - Transfer Hose

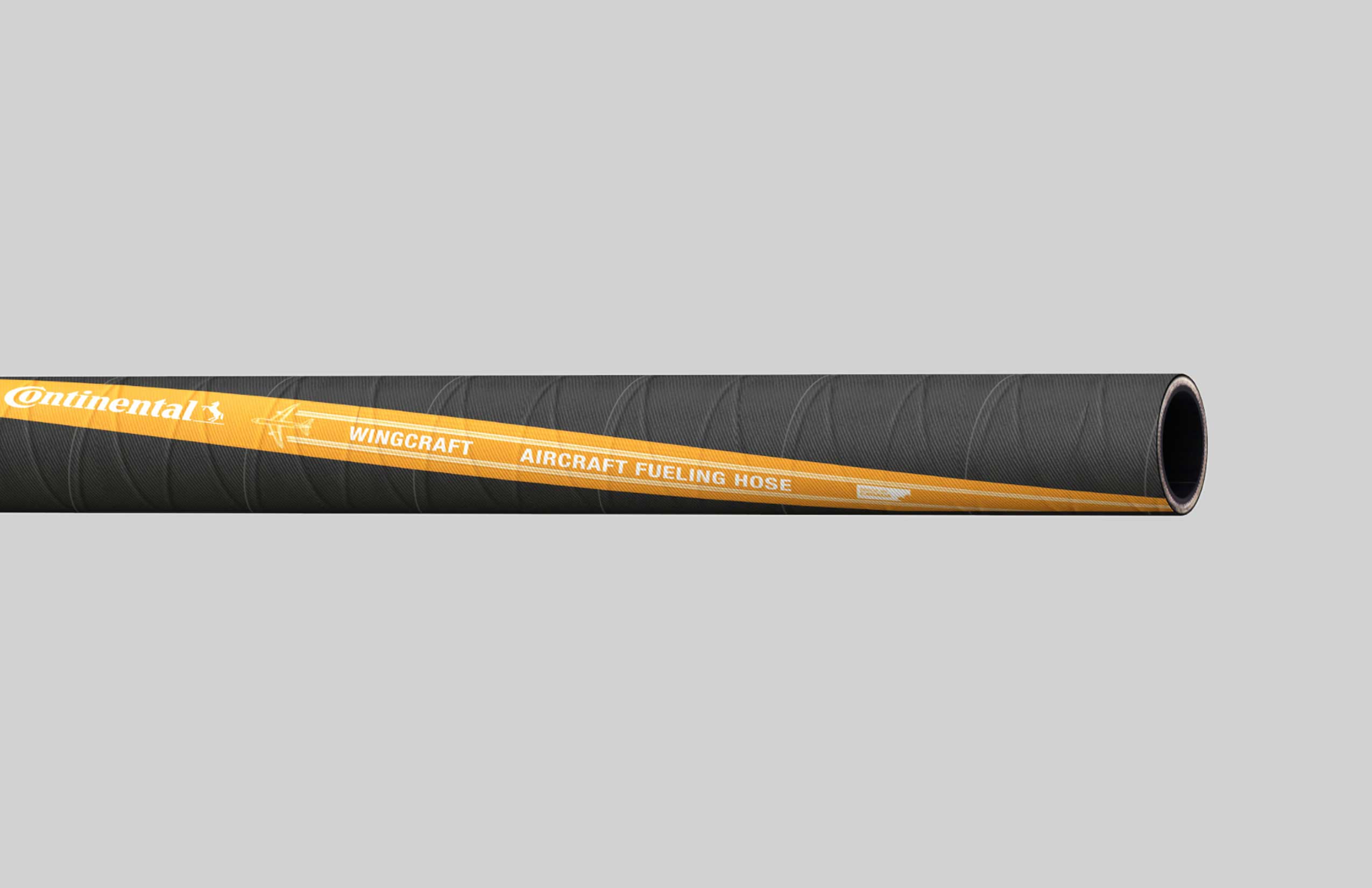

Wingcraft - Transfer Hose - Image 2

Description

For fueling or defueling* commercial and private aircraft. It handles jet fuel and the higher aromatic aviation gasolines. Its high working pressure permits use in fuel cart hydrant service. Hose meets EI 1529-7th edition, 2014 and N.F.P.A. Bulletin #407 (2017 revision).

  • Construction Tube: Black Nitrile Synthetic Rubber
  • Cover: Black Wingprene® (ORS) Static Dissipating/Static Conductive Synthetic Rubber
  • Reinforcement: Spiral-plied Synthetic Fabric
  • Coupling: Contact fitting manufacturer for proper fitting recommendation and coupling procedures.
  • Non Stock / Sizes: Custom lengths and fitting configurations available.
  • Temperature Range: -35°F to 200°F (-37°C to 93°C)
  • Order Codes: 543-738 (1” to 3”), 541-738 (4”)
  • Packaging: Cut lengths, coiled and poly-wrapped

Specifications

Technical Data - Imperial

Part #

Colour

I.D. (In)

O.D. (In)

Weight (Lbs/Ft)

Working Pressure (PSI)

Length (Ft)
20018118 Black 1 1.58 0.65 300 200
20018142 Black 1-1/4 1.89 0.85 300 200
CWCAH15X100FT Black 1-1/2 2.13 0.99 300 100, 200
CWCAH2X100FT Black 2 2.67 1.35 300 100
20018181 Black 2 2.67 1.35 300 200
20018204 Black 2-1/2 3.22 1.72 300 100
20018205 Black 2-1/2 3.22 1.78 300 200
20018222 Black 3 3.72 2.09 300 200
20016776 Black 4 4.80 2.89 300 400

Marking: CONTINENTAL CONTITECH WINGCRAFT AIRCRAFT FUELING HOSE NFPA-407 EI 1529/2014 TYPE C GRADE 2 2000 KPA 300 PSI MAX WP
