Description

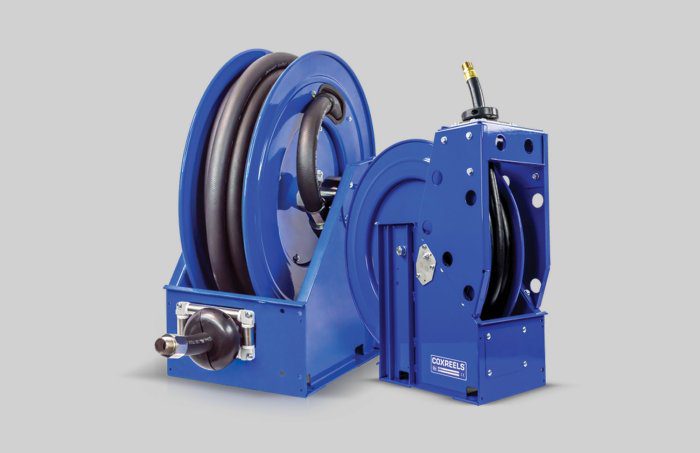

The XTM Extreme Duty Series is designed for high demand industries requiring a level of construction above truck duty. Built with mining, off- road, heavy equipment, and heavy equipment lubrication in mind, the XTM series features the most robust offerings of the reel industry. This series is the combination of all the heavy duty features available inside a solid all-welded box frame, with an integral roller bracket, focused to deliver the toughest reel for the toughest environments and applications.
Professional Grade Features:
- Fluid Path
External fluid path with swivel retaining plates - Precision Bearings
Dual lubricated precision bearings on all models - Stainless Steel Pawl
Accessible ratchet locking mechanism for easy operation secures hose at desired length - Stainless Steel Rollers
1″ stainless steel pinch-proof guide rollers on all models - Box Frame
Fully welded box frame construction, welded seams & redundant flanges - Mounting Options
Bottom mount (standard), floor mount, and wall mount configuration
SWIVEL
- External fluid path with machined from solid brass 90° full-flow NPT swivel inlet & swivel retaining plates
- Swivel Seals: NITRILE
- Electroless nickel plated steel swivel on 1″ models
- Zinc plated steel swivel on HP models
DESIGN & STRUCTURE
- Fully welded box frame construction, welded seams & redundant flanges. Wider frames feature Coxreels’ exclusive Super Hub™ triple axle support system
- Accessible stainless steel pawl and pawl spring on ratchet locking mechanism
- Stainless Steel rollers on all models
- 1″ solid steel axle & dual lubricated precision bearings for smooth & stable rotation
RETRACT
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
Applications
- Mining
- Off-Road
- Heavy Equipment
- Heavy Equipment Lubrication
