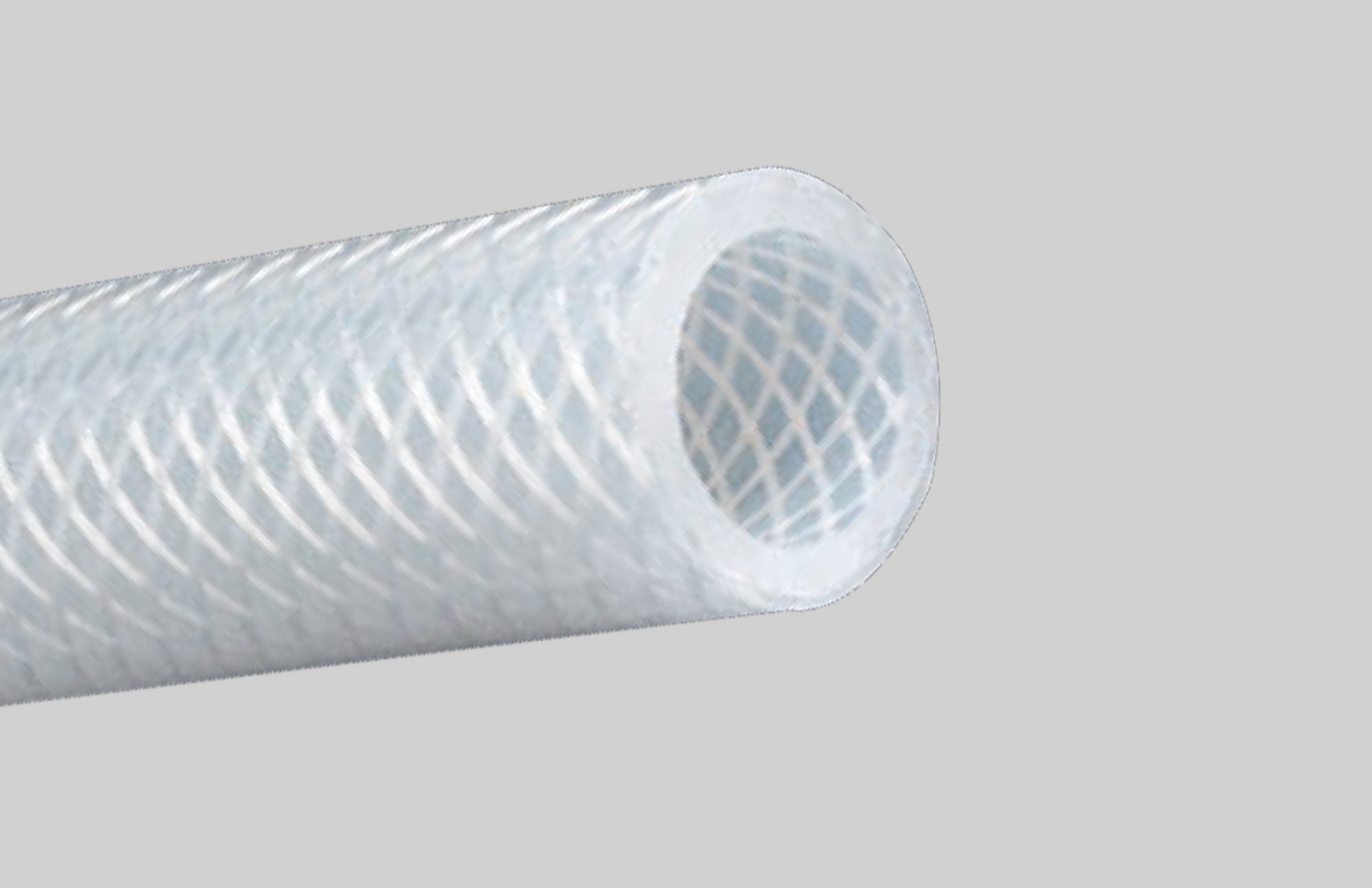

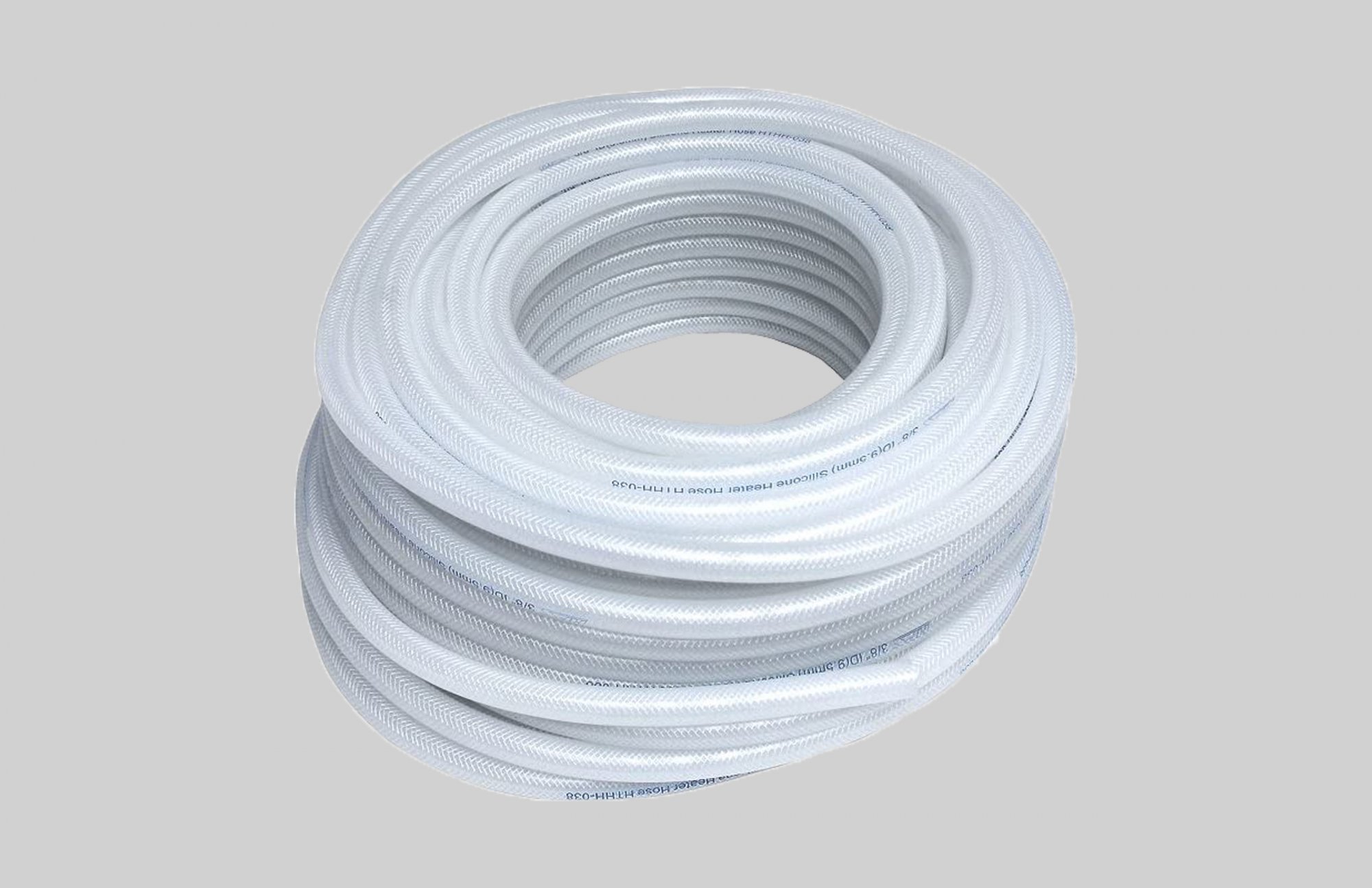

Braid Reinforced Silicone Hose

■ Open mesh polyester braiding incorporated within the walls of silicone tubing
■ Raw materials meet FDA requirements per FDA 21 CFR 177.2600 for use with food contact surfaces
■ Reusable — will withstand repeated sterilization^
■ Translucent natural color for visual contact with the flow
■ Able to resist extreme temperature variation: -99°F to 350°F
■ Odorless, tasteless, and inert
■ Excellent weatherability properties — resists U.V., ozone, gases, moisture, and extreme temperatures
■ Designed for elevated pressure applications
■ Listed by the National Sanitation Foundation (NSF-51) for food equipment materials
■ Free of BPA, latex and phthalates; RoHS compliant

Categories , Tags , , ,

Description

■ Open mesh polyester braiding incorporated within the walls of silicone tubing
■ Raw materials meet FDA requirements per FDA 21 CFR 177.2600 for use with food contact surfaces
■ Reusable — will withstand repeated sterilization^
■ Translucent natural color for visual contact with the flow
■ Able to resist extreme temperature variation: -99°F to 350°F
■ Odorless, tasteless, and inert
■ Excellent weatherability properties — resists U.V., ozone, gases, moisture, and extreme temperatures
■ Designed for elevated pressure applications
■ Listed by the National Sanitation Foundation (NSF-51) for food equipment materials
■ Free of BPA, latex and phthalates; RoHS compliant

Specifications

Part # ID (In.) OD (In.) Wall (In.) Standard Length (Ft.) Working PSI @ 70°F Lbs Per 100 Ft.
2900072 1/8 .365 .120 100 233 5
2900149 3/16 .447 .130 100 216 7
2900226 1/4 .520 .165 100 208 9
2900303 5/16 .592 .140 100 183 11
2900380 3/8 .655 .140 100 166 13
2900457 1/2 .800 .150 50, 100 141 17
2900534 5/8 .965 .170 50 116 23
2900611 3/4 1.100 .175 50 91 28
2900765* 1 1.380 .190 25, 50 75 36

Cut coils are available; charges apply — call for details.
Add length suffix to part number when ordering. Example: 100 ft. of 1/8” I.D. x .365” O.D.
hose is part number 290 0072-100.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
BOLD indicates the critical dimension for fittings application.
*Limited stock item in 25 ft. length; lead times and minimums may apply — call for details
