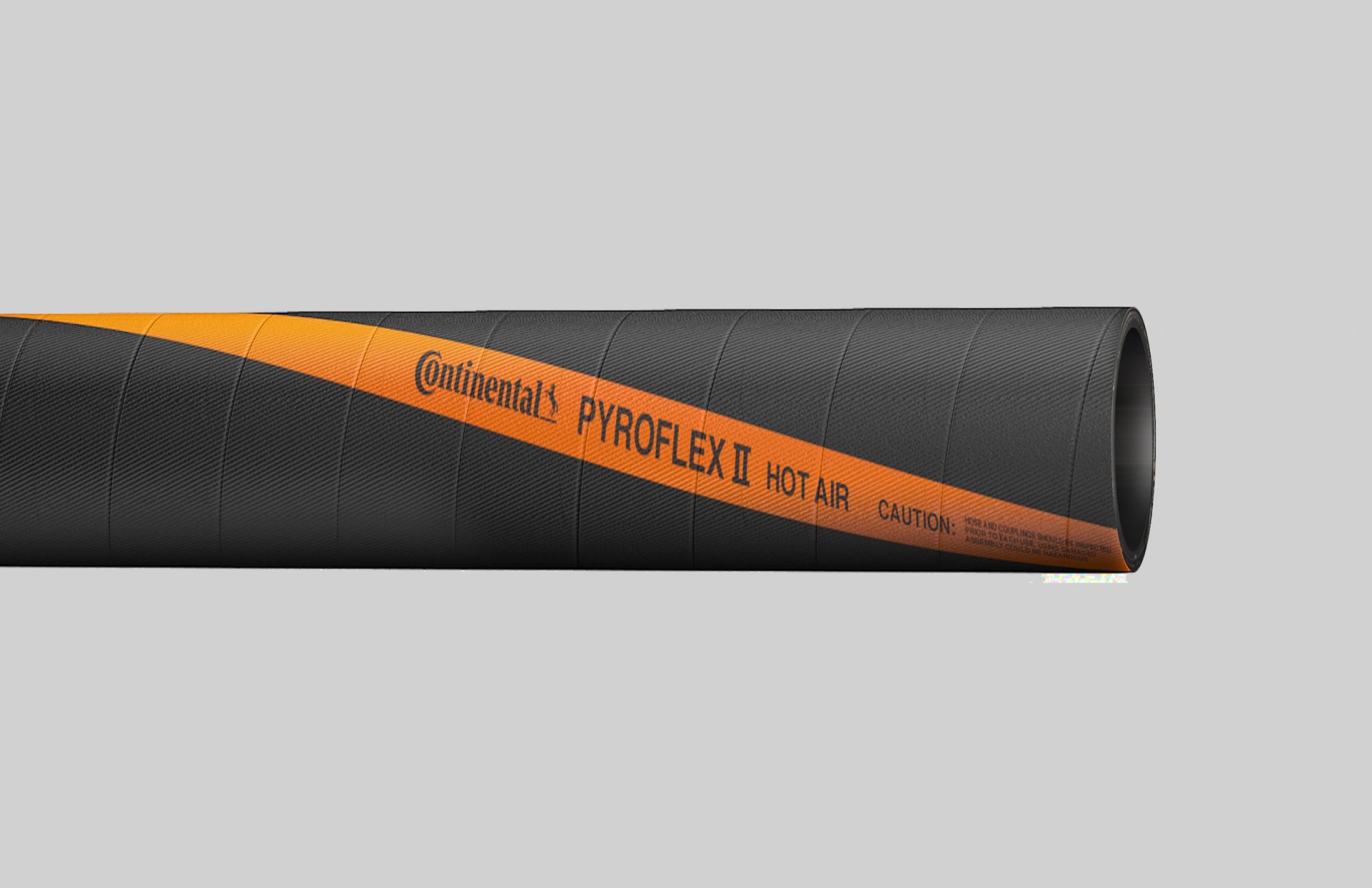

CONTITECH PYROFLEX II HOT AIR

CONTINENTAL HOSE

Call for price
Categories: ,

Description

Applications:
For conveying hot air from compressors to tanks on bulk dry material carrier

Cover:
Heat-resistant black EPDM synthetic rubber with orange spiral stripe (wrapped impression)

Reinforcement:
Spiral-plied synthetic fabric with wire helix

Tube:
EPDM

Temp Range:
-20°F to +325°F

Packaging:
100′ lengths, coiled and polywrapped

Specifications

Part #

I.D. (in.) O.D. (in.) Weight (lbs/ft) Working Pressure (PSI) Bend Radius (in.) Vacuum HG (in.) Standard Length
20019669 2 2.55 1.22 100 5 29 100
20019671 3 3.55 1.93 100 7 29 100
20019674 4 4.61 2.65 100 10 29 100
20019675 6 6.74 4.80 100 30 29 100
