CWC-W DUCTING

Call for price
Categories: ,

Description

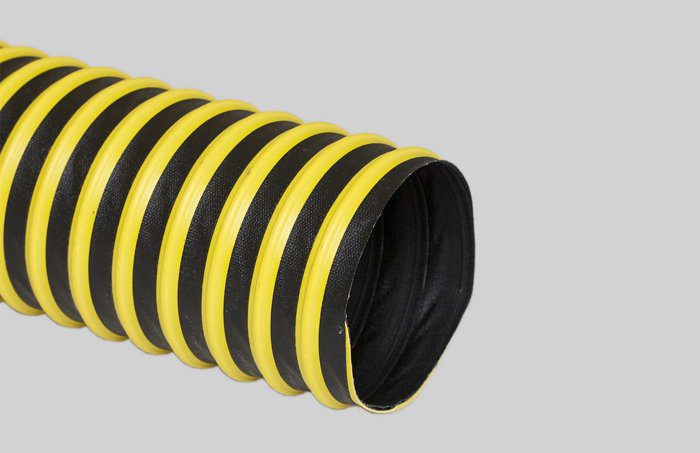

Double-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix & yellow external PVC coated polyester wearstrip.

  • Wearstrip offers additional external abrasion & drag resistance
  • Good crush resistance & tensile strength
  • Neoprene coating offers excellent abrasion & chemical resistance
  • Listed as UL 94V-0 flame retardant
  • Additional coatings available for better abrasion &/or chemical resistance
  • Standard Max. Inside Diameter = 12″, consult sales team for pricing & minimums on larger sizes

Specifications

LINE Flexaust
MATERIAL Coated Fabric
INSIDE DIAMETER Min: 3" Max: 60"
TEMPERATURE Low: -40° High: 250°
LENGTH 25'



Inside Diameter (I.D.)

Weight (lbs/Ft)

Wall Thickness (In)

CL Bend Radius (In)

Compression Ratio

Negative Pressure (In/Hg)

Working Pressure (PSI)

4 .54 - 3.6 4:1 29 30
5 .56 - 3.6 4:1 12 20
6 .86 - 3.9 4:1 17 15
7 1.10 - 5.75 4:1 10 13
8 1.31 - 7.1 4:1 7.3 11
10 1.79 - 8.4 4:1 4 9
12 2.5 - 9.8 4:1 4.9 7
14 2.9 - 11.5 4:1 3.1 6
16 3.3 - 13 4:1 2.1 5
18 3.7 - 14.5 4:1 1.5 4
20 4.1 - 16.3 4:1 1.1 3
24 4.9 - 20 4:1 .6 2

Technical data based on 2 ft. straight lengths of hose @ 72°

Available: CWC-WY300
