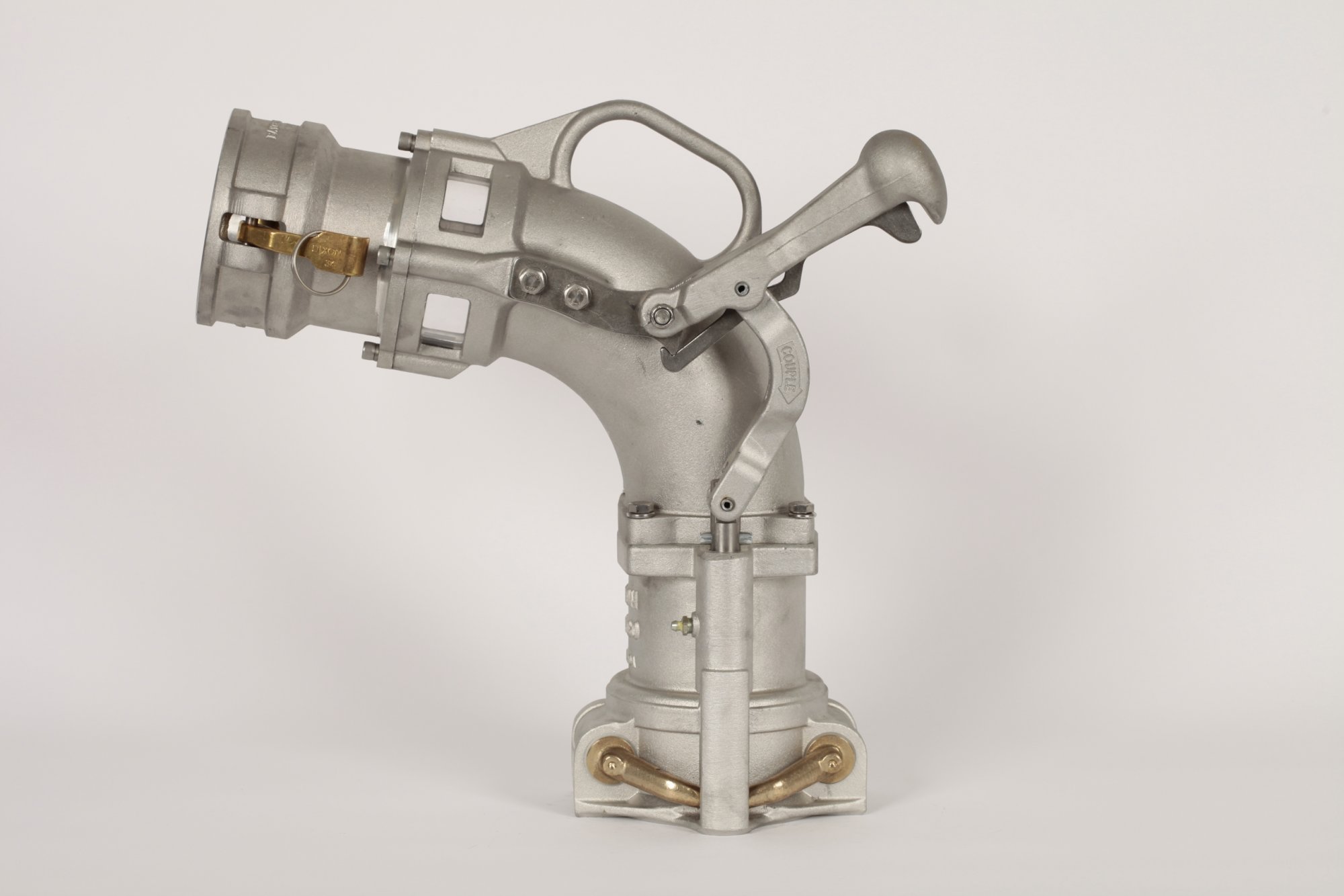

Drop Elbows – Heavy Duty Fuel Delivery Elbow

The 6500 series automatically locks the arm onto the fill adapter when the arm is rotated into the locking position.

• Ergonomic arm design contains a lock release lever that the operator can engage or disengage by simply gripping the locking arm. Since the locking mechanism is tucked inside the locking arm it can not be accidentally released.
• Self-locking arm prevents the elbow from popping off due to a hydraulic surge when the underground storage tank overfill valve slams shut.
• Easy to service – all gaskets and repair parts are common to the product line.
• Handle can be mounted to left or right side of elbow.

Description

The 6500 series automatically locks the arm onto the fill adapter when the arm is rotated into the locking position.

• Ergonomic arm design contains a lock release lever that the operator can engage or disengage by simply gripping the locking arm. Since the locking mechanism is tucked inside the locking arm it can not be accidentally released.
• Self-locking arm prevents the elbow from popping off due to a hydraulic surge when the underground storage tank overfill valve slams shut.
• Easy to service – all gaskets and repair parts are common to the product line.
• Handle can be mounted to left or right side of elbow.

Specifications

Standard Handle
Part # Description
6200D 4” Tight fill side lever elbow with 4” female inlet
6200T14 4” Tight fill side lever elbow with 4” female inlet and anti-spill sleeve
6200X14 4” Tall Tight fill side lever elbow with 4” female inlet
6200XT14 4” Tall Tight fill side lever tall elbow with 4” female inlet and anti-spill sleeve



Locking Handle
Part # Description
6500 DROP ELBOW C/W LOCK HANDLE
65001 4” Tight fill side lever elbow with 4” female inlet
6500T14 4” Tight fill side lever elbow with 4” female inlet and anti-spill sleeve
6500X14 4” Tall Tight fill side lever elbow with 4” female inlet
6500XT14 4” Tall Tight fill side lever tall elbow with 4” female inlet and anti-spill sleeve
